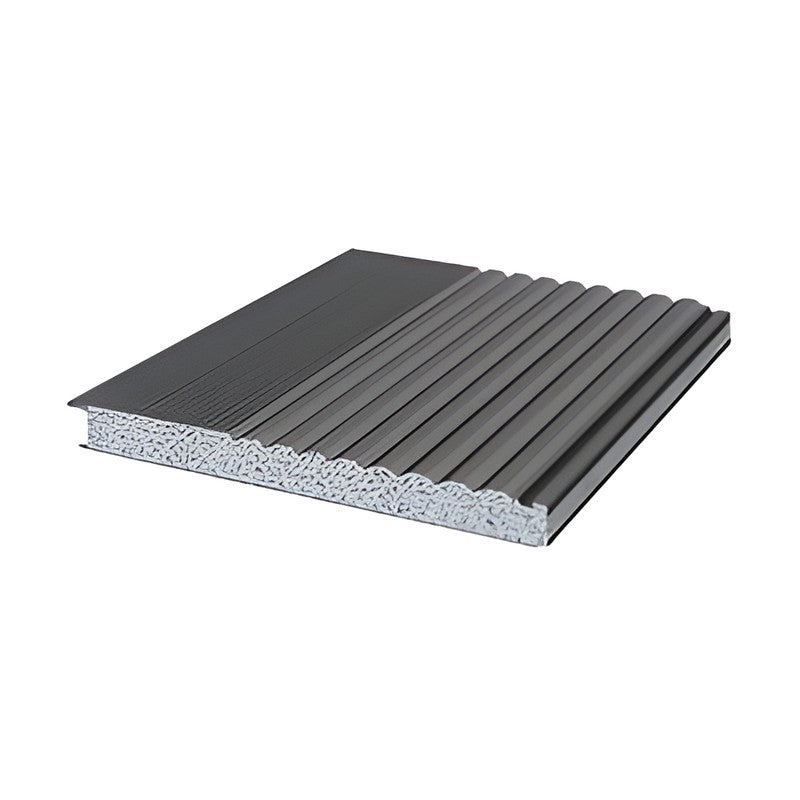

ENGONE EPS Sandwich Panel (Flame-Retardant, 50-100T)

Economical flame-retardant expanded polystyrene (EPS) core sandwich panel with pre-painted galvanised steel facings for exterior walls, roofs and partitions.

Key features

Flame-retardant bead-method EPS core bonded with polyurethane adhesive on a continuous press
Six panel types: wall EMW, V-70 wall EMV70, EMS, EMVF40, roof EMR and partition EMSS
Light weight and easy cutting for fast dry construction
Profiles per brochure: flat and micro-rib wall, 3-rib/4-rib roof, 3-rib deck, 250/500/1000-rib, V-77, V-70
Facing 4.17 kg/m2 pre-painted galvanised steel with silicone polyester finish

Specifications

Core	Flame-retardant EPS, bead board Type 4, >= 15 kg/m3
Core properties	Flexural >= 15 N/cm2; compressive >= 15 N/cm2; water abs. <= 1.5 g/100cm2
Core thermal conductivity	<= 0.034 W/mK
Panel width	1,000 mm
Panel thickness	50, 75, 100 mm
Facing steel	Pre-painted galvanised 0.45 mm (silicone polyester) or 0.5 mm
Facing standards	KS D 3506 / 3770 / 3033 / 3030 hot-dip coated steel; painted per KS D 3520 (PPGI) / KS D 3862 (PPGL)
Paint system	Epoxy primer 3-5 um + silicone polyester 15-20 um; back epoxy 3-5 um
Specified fire class	Flame-retardant Grade 3 (KS F 2271 method)
Colours	Standard: White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, STS304 Stainless, Yellow, Orange, Red, Brown, Green, Blue, Cobalt Blue, Black
Source	ENGONE product data sheet

EPS PANEL EMW 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
EPS PANEL EMW 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
EPS PANEL EMW 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
EPS PANEL EMV70 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
EPS PANEL EMV70 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
EPS PANEL EMV70 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
EPS PANEL EMS 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
EPS PANEL EMS 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
EPS PANEL EMS 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
EPS PANEL EMVF40 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
EPS PANEL EMVF40 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
EPS PANEL EMVF40 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
EPS PANEL EMR 50T		Use: Roof \| W: 1000 mm \| T: 50 mm
EPS PANEL EMR 75T		Use: Roof \| W: 1000 mm \| T: 75 mm
EPS PANEL EMR 100T		Use: Roof \| W: 1000 mm \| T: 100 mm
EPS PANEL EMSS 50T		Use: Partition \| W: 1000 mm \| T: 50 mm
EPS PANEL EMSS 75T		Use: Partition \| W: 1000 mm \| T: 75 mm
EPS PANEL EMSS 100T		Use: Partition \| W: 1000 mm \| T: 100 mm

Sandwich PanelsENGONE

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE EPS Sandwich Panel (Flame-Retardant, 50-100T)

Brand ENGONE·Sandwich Panels

Available part numbers (18)

EPS PANEL EMW 50T, EPS PANEL EMW 75T, EPS PANEL EMW 100T, EPS PANEL EMV70 50T, EPS PANEL EMV70 75T, EPS PANEL EMV70 100T, EPS PANEL EMS 50T, EPS PANEL EMS 75T, EPS PANEL EMS 100T, EPS PANEL EMVF40 50T + 8 more — see full table ↓
