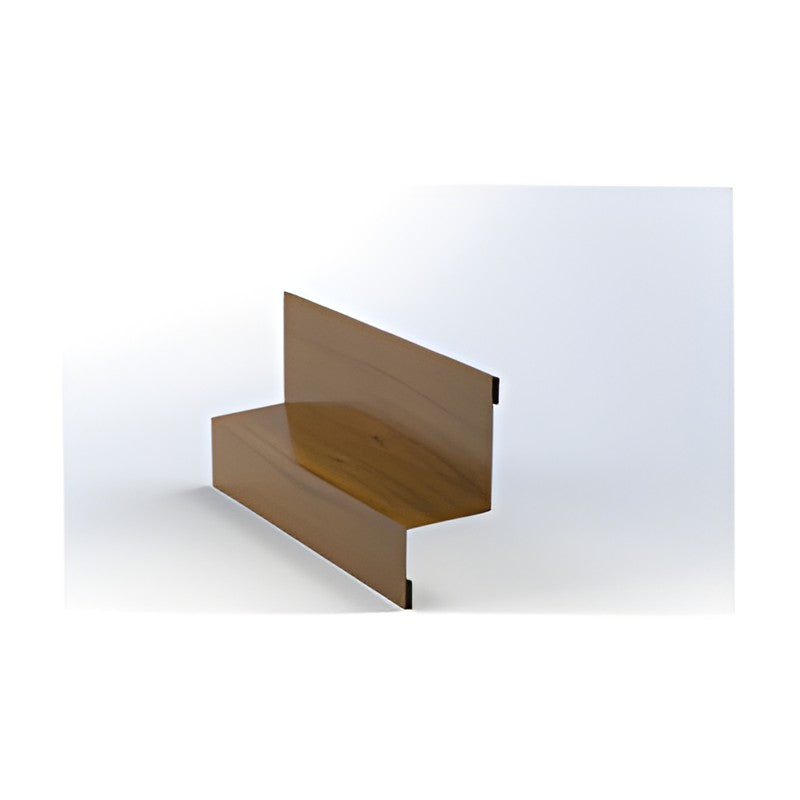

ENGONE Facade Sheet Flashing (Base, Cap, Corner, Opening)

ENGONE Facade Sheet Flashing (Base, Cap, Corner, Opening)

Dimensioned flashing set for ribbed facade sheet cladding: base, cap, top/bottom, window/opening and outside-corner trims sized to the sheet rib depth.

Key features

  • Eight standard sections: base 1/2, cap 1/2, top/bottom, opening (zinc type), opening (louver type), outside corner
  • Dimension A matched to sheet rib: small 21 mm, medium 28 mm, large 33 mm, or panel height + 3 mm
  • Outside corner B dimension 68 / 75 / 80 mm by rib size
  • Supplied in the same colour or print (e.g. wood grain) as the cladding
  • Folded to length to order

Specifications

Material Pre-painted or printed steel matching cladding
A (small / medium / large rib) 21 / 28 / 33 mm
Outside corner B 68 / 75 / 80 mm (other: variable)
Base flashing 30 mm step, 50 mm upstand, 95 deg
Length To order
Colours Print: Zinc Copper, Real Zinc, Zinc Black, Zinc Navy, Hairline Silver Grey, Hairline Brown, Wrinkle Grey/Black/Brown, Corten Grey/Black/Brown, Natural/Light/Dark Wood; digital-print series Wood, Marble & Stone, Artcon, Rusty, Stripe, ArtMeta
Source ENGONE product data sheet
FLASHING BASE-1 A21 Type: Base 1 | Rib: S | A: 21 mm
FLASHING BASE-1 A28 Type: Base 1 | Rib: M | A: 28 mm
FLASHING BASE-1 A33 Type: Base 1 | Rib: L | A: 33 mm
FLASHING BASE-1 CUSTOM Type: Base 1 | Rib: Other | A: H+3
FLASHING BASE-2 A21 Type: Base 2 | Rib: S | A: 21 mm
FLASHING BASE-2 A28 Type: Base 2 | Rib: M | A: 28 mm
FLASHING BASE-2 A33 Type: Base 2 | Rib: L | A: 33 mm
FLASHING BASE-2 CUSTOM Type: Base 2 | Rib: Other | A: H+3
FLASHING CAP-1 A21 Type: Cap 1 | Rib: S | A: 21 mm
FLASHING CAP-1 A28 Type: Cap 1 | Rib: M | A: 28 mm
FLASHING CAP-1 A33 Type: Cap 1 | Rib: L | A: 33 mm
FLASHING CAP-1 CUSTOM Type: Cap 1 | Rib: Other | A: H+3
FLASHING CAP-2 A21 Type: Cap 2 | Rib: S | A: 21 mm
FLASHING CAP-2 A28 Type: Cap 2 | Rib: M | A: 28 mm
FLASHING CAP-2 A33 Type: Cap 2 | Rib: L | A: 33 mm
FLASHING CAP-2 CUSTOM Type: Cap 2 | Rib: Other | A: H+3
FLASHING TOP-BOTTOM A21 Type: Top/btm | Rib: S | A: 21 mm
FLASHING TOP-BOTTOM A28 Type: Top/btm | Rib: M | A: 28 mm
FLASHING TOP-BOTTOM A33 Type: Top/btm | Rib: L | A: 33 mm
FLASHING TOP-BOTTOM CUSTOM Type: Top/btm | Rib: Other | A: H+3
FLASHING OPENING-Z A21 Type: Open zinc | Rib: S | A: 21 mm
FLASHING OPENING-Z A28 Type: Open zinc | Rib: M | A: 28 mm
FLASHING OPENING-Z A33 Type: Open zinc | Rib: L | A: 33 mm
FLASHING OPENING-Z CUSTOM Type: Open zinc | Rib: Other | A: H+3
FLASHING OPENING-L A21 Type: Open louver | Rib: S | A: 21 mm
FLASHING OPENING-L A28 Type: Open louver | Rib: M | A: 28 mm
FLASHING OPENING-L A33 Type: Open louver | Rib: L | A: 33 mm
FLASHING OPENING-L CUSTOM Type: Open louver | Rib: Other | A: H+3
FLASHING OUT-CORNER A21 Type: Out corner | Rib: S | A: 21 mm
FLASHING OUT-CORNER A28 Type: Out corner | Rib: M | A: 28 mm
FLASHING OUT-CORNER A33 Type: Out corner | Rib: L | A: 33 mm
FLASHING OUT-CORNER CUSTOM Type: Out corner | Rib: Other | A: H+3
Building AccessoriesENGONE
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Facade Sheet Flashing (Base, Cap, Corner, Opening)

Brand ENGONE·Building Accessories

Available part numbers (32)

FLASHING BASE-1 A21, FLASHING BASE-1 A28, FLASHING BASE-1 A33, FLASHING BASE-1 CUSTOM, FLASHING BASE-2 A21, FLASHING BASE-2 A28, FLASHING BASE-2 A33, FLASHING BASE-2 CUSTOM, FLASHING CAP-1 A21, FLASHING CAP-1 A28 + 22 more — see full table ↓

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
