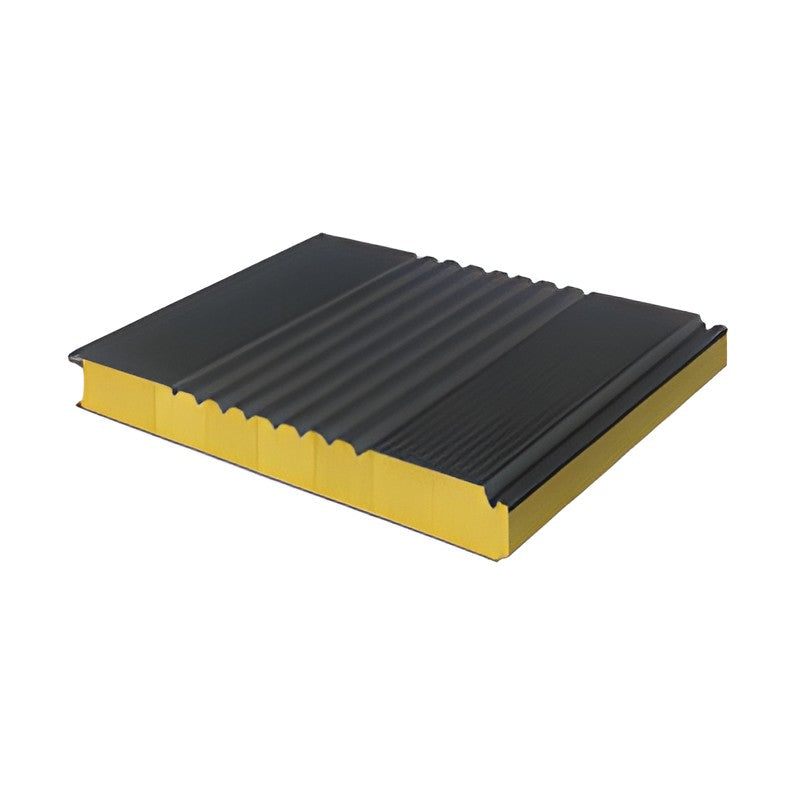

ENGONE Glass-Wool Sandwich Panel (50-125T, W1000)

Glass-wool core sandwich panel with pre-painted steel facings, produced on a mineral-wool feeding and roll laminating line for exterior walls, roofs, deck roofs and partitions.

Key features

Glass-wool board core (KS L 9102) inorganic core for thermal and acoustic insulation
Six panel types: exterior wall (GMW, GMF), roof (GMR), deck roof (GMDK), partition/ceiling (GMSS, GMFS)
Core density options 48, 64 and 74 kg/m3 per system brochure
Profiles: flat and micro-rib wall, 3-rib roof, 3-rib deck, 250/500/1000-rib, V-77 and V-70 facade
Continuous production: forming, wool feeding, bonding, roll laminating, cutting, stacking, packing
Cut to length to project drawings; matching flashings and trims available

Specifications

Core	Glass-wool board (KS L 9102), 48 / 64 / 74 kg/m3
Core properties (64K)	Thermal cond. 0.028 kcal/mh C; service temp 350 C
Panel width	1,000 mm
Panel thickness	50, 75, 100, 125 mm
Facing steel	Pre-painted galvanised 0.45 mm (silicone polyester) or 0.5 mm
Facing grades	CGCC, CGLCC, SGMCC, SGLCC (coating eq. 0.033 mm)
Facing standards	KS D 3506 / 3770 / 3033 / 3030 hot-dip coated steel; painted per KS D 3520 (PPGI) / KS D 3862 (PPGL)
Paint system	Epoxy primer 3-5 um + silicone polyester 15-20 um; back epoxy 3-5 um
Deck panel	Outer 1.6 mm asphalt waterproof base sheet, inner 0.6 mm coated steel
Colours	Standard: White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, STS304 Stainless, Yellow, Orange, Red, Brown, Green, Blue, Cobalt Blue, Black
Source	ENGONE product data sheet

GW PANEL GMW 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
GW PANEL GMW 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
GW PANEL GMW 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
GW PANEL GMW 125T		Use: Ext. wall \| W: 1000 mm \| T: 125 mm
GW PANEL GMF 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
GW PANEL GMF 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
GW PANEL GMF 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
GW PANEL GMF 125T		Use: Ext. wall \| W: 1000 mm \| T: 125 mm
GW PANEL GMR 50T		Use: Roof \| W: 1000 mm \| T: 50 mm
GW PANEL GMR 75T		Use: Roof \| W: 1000 mm \| T: 75 mm
GW PANEL GMR 100T		Use: Roof \| W: 1000 mm \| T: 100 mm
GW PANEL GMR 125T		Use: Roof \| W: 1000 mm \| T: 125 mm
GW PANEL GMDK 50T		Use: Deck roof \| W: 1000 mm \| T: 50 mm
GW PANEL GMDK 75T		Use: Deck roof \| W: 1000 mm \| T: 75 mm
GW PANEL GMDK 100T		Use: Deck roof \| W: 1000 mm \| T: 100 mm
GW PANEL GMDK 125T		Use: Deck roof \| W: 1000 mm \| T: 125 mm
GW PANEL GMSS 50T		Use: Partition \| W: 1000 mm \| T: 50 mm
GW PANEL GMSS 75T		Use: Partition \| W: 1000 mm \| T: 75 mm
GW PANEL GMSS 100T		Use: Partition \| W: 1000 mm \| T: 100 mm
GW PANEL GMSS 125T		Use: Partition \| W: 1000 mm \| T: 125 mm
GW PANEL GMFS 50T		Use: Partition \| W: 1000 mm \| T: 50 mm
GW PANEL GMFS 75T		Use: Partition \| W: 1000 mm \| T: 75 mm
GW PANEL GMFS 100T		Use: Partition \| W: 1000 mm \| T: 100 mm
GW PANEL GMFS 125T		Use: Partition \| W: 1000 mm \| T: 125 mm
