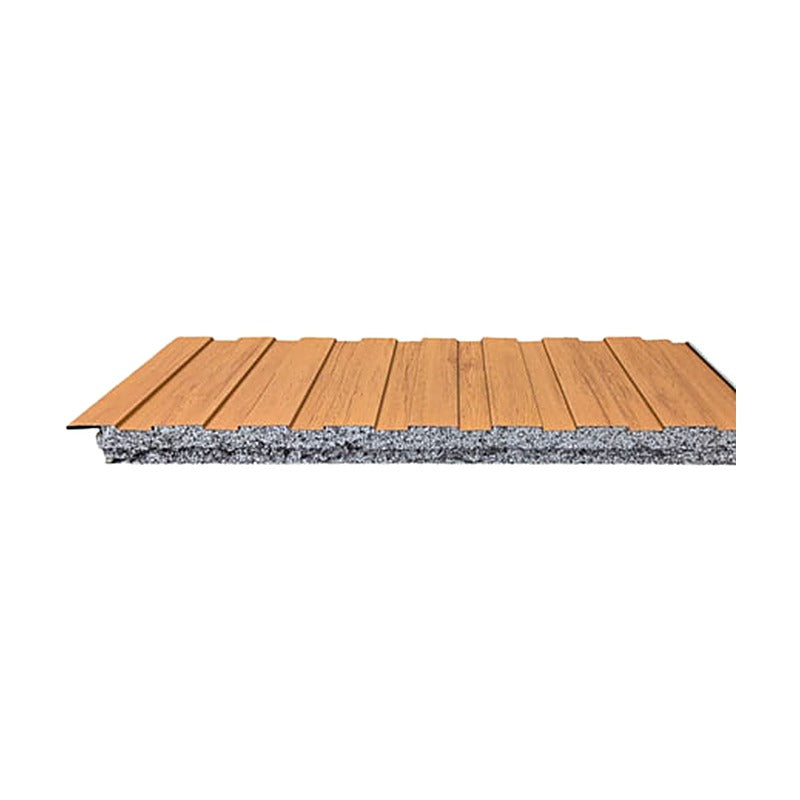

ENGONE Louver Sandwich Panel (DS5033 / DS7550 Profile)

Insulated facade panel with a deep louver (fin) profile on the outer face, giving a slatted timber or metal look in a single sandwich panel.

Key features

Profile DS5033: alternating 50 mm and 33 mm fins, overall width 1,050 mm
Profile DS7550: alternating 75 mm and 50 mm fins, overall width 1,044 mm
Cover width 1,000 mm with tongue-and-groove joint
Glass-wool (48/64/74K) or flame-retardant EPS (>= 15 kg/m3) core
Wood-grain and other print finishes on 0.5 mm pre-painted galvanised facing

Specifications

Cover width	1,000 mm
Facing steel	0.5 mm pre-painted galvanised (polyester or fluorocarbon)
Facing standards	KS D 3506 / 3770 / 3033 / 3030 hot-dip coated steel; painted per KS D 3520 (PPGI) / KS D 3862 (PPGL)
Core options	Glass wool 48 / 64 / 74 kg/m3; EPS >= 15 kg/m3
Thickness	Made to order
Colours	Print: Zinc Copper, Real Zinc, Zinc Black, Zinc Navy, Hairline Silver Grey, Hairline Brown, Wrinkle Grey/Black/Brown, Corten Grey/Black/Brown, Natural/Light/Dark Wood; digital-print series Wood, Marble & Stone, Artcon, Rusty, Stripe, ArtMeta
Source	ENGONE product data sheet

LOUVER PANEL DS5033 GW		Fins: 50/33 mm \| Core: GW \| W: 1000
LOUVER PANEL DS5033 EPS		Fins: 50/33 mm \| Core: EPS \| W: 1000
LOUVER PANEL DS7550 GW		Fins: 75/50 mm \| Core: GW \| W: 1000
LOUVER PANEL DS7550 EPS		Fins: 75/50 mm \| Core: EPS \| W: 1000

Sandwich PanelsENGONE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Louver Sandwich Panel (DS5033 / DS7550 Profile)

Brand ENGONE·Sandwich Panels

Available part numbers (4)

LOUVER PANEL DS5033 GW, LOUVER PANEL DS5033 EPS, LOUVER PANEL DS7550 GW, LOUVER PANEL DS7550 EPS

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LOUVER PANEL DS5033 GW	Fins: 50/33 mm \| Core: GW \| W: 1000
	LOUVER PANEL DS5033 EPS	Fins: 50/33 mm \| Core: EPS \| W: 1000
	LOUVER PANEL DS7550 GW	Fins: 75/50 mm \| Core: GW \| W: 1000
	LOUVER PANEL DS7550 EPS	Fins: 75/50 mm \| Core: EPS \| W: 1000
