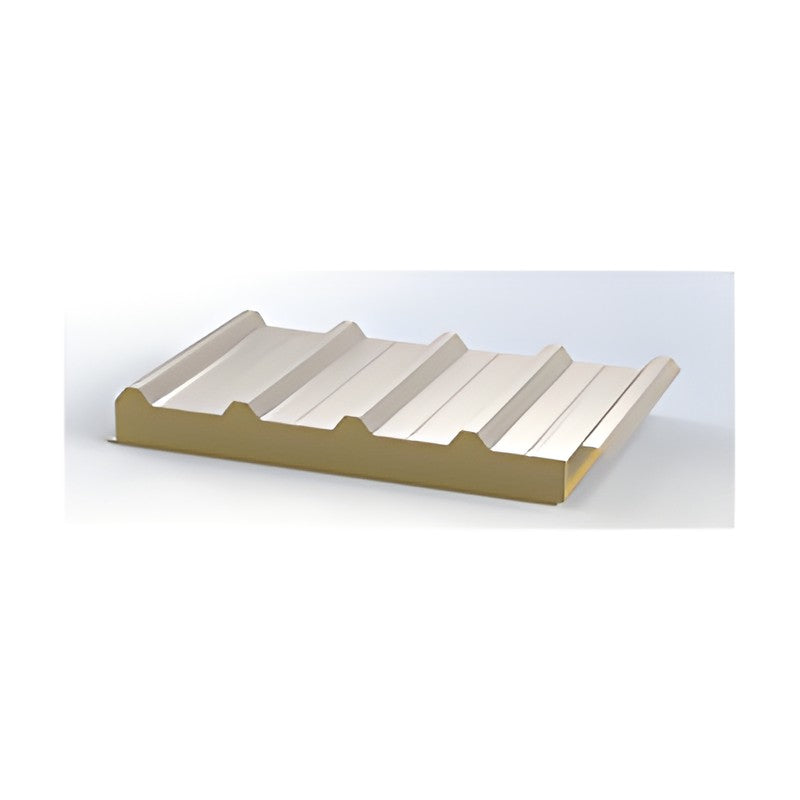

ENGONE PIR Sandwich Panel (Flame-Retardant, 50-150T)

Flame-retardant polyisocyanurate (PIR) core sandwich panel with pre-painted steel facings on both sides, produced on a continuous press line for exterior walls, roofs and partitions/ceilings.

Key features

Rigid PIR foam core bonded to coated steel facings with polyurethane adhesive on an automatic continuous press
Lowest thermal conductivity of the panel range (PIR design value 0.020 W/mK) for thinner panels at a given U-value
Six panel types: exterior wall (UMW, UMF), roof (UMR), deck roof (UMDK) and partition/ceiling (UMSS, UMFS)
Tongue-and-groove side joints; roof panels fixed at the crown with 6 mm self-drilling screws
Profiles per system brochure: flat and micro-rib wall, 4-rib roof, 250/500/1000-rib, V-77 and zinc-seam
Cut to length to drawing and site conditions; matching flashings and trims available

Specifications

Core	Rigid PIR foam, density >= 40 kg/m3
Core thermal conductivity	<= 0.020 kcal/mh C (spec sheet)
Panel width	1,000 mm
Panel thickness	50, 75, 100, 125, 150 mm
Facing steel	Pre-painted galvanised 0.45 mm, or 0.5-0.8 mm
Facing grades	CGCC, CGLCC, SGMCC, SGLCC (coating eq. 0.033 mm)
Facing standards	KS D 3506 / 3770 / 3033 / 3030 hot-dip coated steel; painted per KS D 3520 (PPGI) / KS D 3862 (PPGL)
Paint system	Epoxy primer 3-5 um + silicone polyester 15-20 um; back epoxy 3-5 um (polyester, SMP or PVDF facings)
Specified fire class	Flame-retardant Grade 3 PIR (spec sheet)
Colours	Standard: White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, STS304 Stainless, Yellow, Orange, Red, Brown, Green, Blue, Cobalt Blue, Black
Source	ENGONE product data sheet

PIR PANEL UMW 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
PIR PANEL UMW 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
PIR PANEL UMW 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
PIR PANEL UMW 125T		Use: Ext. wall \| W: 1000 mm \| T: 125 mm
PIR PANEL UMW 150T		Use: Ext. wall \| W: 1000 mm \| T: 150 mm
PIR PANEL UMF 50T		Use: Ext. wall \| W: 1000 mm \| T: 50 mm
PIR PANEL UMF 75T		Use: Ext. wall \| W: 1000 mm \| T: 75 mm
PIR PANEL UMF 100T		Use: Ext. wall \| W: 1000 mm \| T: 100 mm
PIR PANEL UMF 125T		Use: Ext. wall \| W: 1000 mm \| T: 125 mm
PIR PANEL UMF 150T		Use: Ext. wall \| W: 1000 mm \| T: 150 mm
PIR PANEL UMR 50T		Use: Roof \| W: 1000 mm \| T: 50 mm
PIR PANEL UMR 75T		Use: Roof \| W: 1000 mm \| T: 75 mm
PIR PANEL UMR 100T		Use: Roof \| W: 1000 mm \| T: 100 mm
PIR PANEL UMR 125T		Use: Roof \| W: 1000 mm \| T: 125 mm
PIR PANEL UMR 150T		Use: Roof \| W: 1000 mm \| T: 150 mm
PIR PANEL UMDK 50T		Use: Deck roof \| W: 1000 mm \| T: 50 mm
PIR PANEL UMDK 75T		Use: Deck roof \| W: 1000 mm \| T: 75 mm
PIR PANEL UMDK 100T		Use: Deck roof \| W: 1000 mm \| T: 100 mm
PIR PANEL UMDK 125T		Use: Deck roof \| W: 1000 mm \| T: 125 mm
PIR PANEL UMDK 150T		Use: Deck roof \| W: 1000 mm \| T: 150 mm
PIR PANEL UMSS 50T		Use: Partition \| W: 1000 mm \| T: 50 mm
PIR PANEL UMSS 75T		Use: Partition \| W: 1000 mm \| T: 75 mm
PIR PANEL UMSS 100T		Use: Partition \| W: 1000 mm \| T: 100 mm
PIR PANEL UMSS 125T		Use: Partition \| W: 1000 mm \| T: 125 mm
PIR PANEL UMSS 150T		Use: Partition \| W: 1000 mm \| T: 150 mm
PIR PANEL UMFS 50T		Use: Partition \| W: 1000 mm \| T: 50 mm
PIR PANEL UMFS 75T		Use: Partition \| W: 1000 mm \| T: 75 mm
PIR PANEL UMFS 100T		Use: Partition \| W: 1000 mm \| T: 100 mm
PIR PANEL UMFS 125T		Use: Partition \| W: 1000 mm \| T: 125 mm
PIR PANEL UMFS 150T		Use: Partition \| W: 1000 mm \| T: 150 mm
