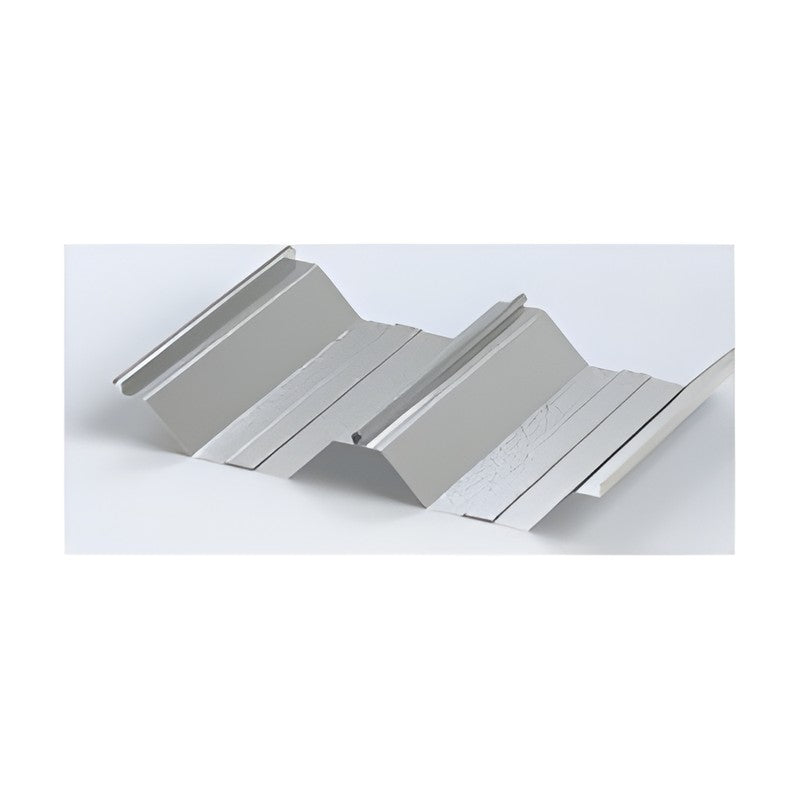

ENGONE Seamed Roof Steel Sheet (V-500 / K-300 / MR-500 / KR-700)

Concealed-fix seamed steel roof sheets for long-span and curved roofs. MR-500 and KR-700 are used as roof systems over glass-wool deck panels.

Key features

V-500 deep-rib seamed roof, 190 mm rib height
K-300 arch profile for round roofs
MR-500 mono roof with sliding clips
KR-700 with joint and centre clips
PE foam backing available on V-500 and KR-700

Specifications

Profiles	V-500, K-300, K-460, MR-500, KR-700
Thickness	0.5-0.8 mm
Use	Roof
Joint	Seamed, concealed clip fixing
System build-up	Seamed sheet + clips + SDS screw + G/W deck panel + purlin
Substrate	Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal	GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up	Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Physical (0.5 mm)	Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Standard colours	White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, Stainless Look (STS), Yellow, Orange, Red, Chestnut Brown, Green, Blue, Cobalt Blue, Black
Source	ENGONE product data sheet

V-500		Cover: 500 mm \| H: 190 mm \| Joint: seam
K-300		Cover: 290 mm \| H: 150 mm \| Arch roof
K-460		Cover: 460 mm \| H: 56 mm \| Joint: seam
MR-500		Cover: 500 mm \| H: 60 mm \| Joint: seam
KR-700		Cover: 700 mm \| H: 90 mm \| Joint: seam

Roof Steel SheetsENGONE

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Seamed Roof Steel Sheet (V-500 / K-300 / MR-500 / KR-700)

Brand ENGONE·Roof Steel Sheets

Available part numbers (5)

V-500, K-300, K-460, MR-500, KR-700

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	V-500	Cover: 500 mm \| H: 190 mm \| Joint: seam
	K-300	Cover: 290 mm \| H: 150 mm \| Arch roof
	K-460	Cover: 460 mm \| H: 56 mm \| Joint: seam
	MR-500	Cover: 500 mm \| H: 60 mm \| Joint: seam
	KR-700	Cover: 700 mm \| H: 90 mm \| Joint: seam
