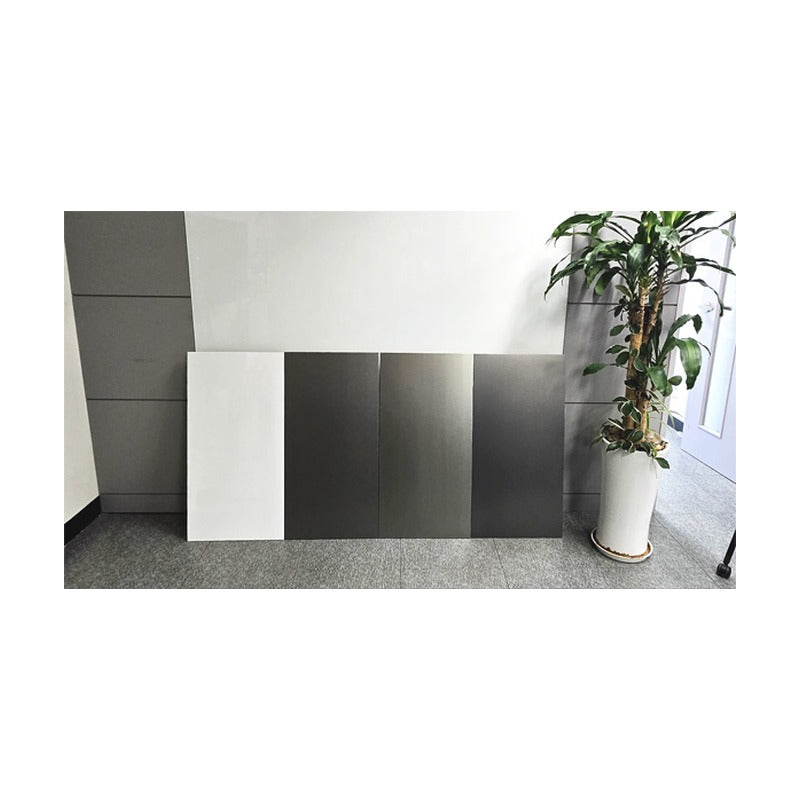

ENGONE SGP Gypsum-Backed Steel Panel (Hat / U / Wall Type)

ENGONE SGP Gypsum-Backed Steel Panel (Hat / U / Wall Type)

Steel gypsum panel (SGP): a 4-side folded coated steel tray bonded to a gypsum board core. Used for exterior and interior walls of schools, modular buildings, hospitals and public buildings.

Key features

  • 4-side folded steel face bonded to gypsum board with urethane adhesive
  • Hat, U and wall (flush) types with screwed and sealed joints
  • Gypsum core adds non-combustibility and sound insulation
  • Dry installation; panels can be removed and reused
  • Polyester, PVDF, antibacterial, printed, VCM and digital-print faces

Specifications

Face material Coated GI 0.5-1.0 mm; SUS 0.5-0.8 mm; Al 0.8-3 mm (PVDF)
Face standard Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Core Gypsum board 12.5 mm, general / water-resistant / fire (KS F 3504)
Gypsum options General 9.5/12.5/15; fire 12.5/15/19/25; water-resistant, acoustic, anti-mould 9.5/12.5/15; light 9.5 mm
Panel width 300-1,100 mm (standard 450 mm)
Panel length 500-3,000 mm
Corner panels W 300-1,000 mm; L1+L2 up to 3,000 mm
Panel thickness 13 mm (12.5 mm board + face)
Coating build-up Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Colours Standard, print and digital-print ranges
Source ENGONE product data sheet
SGP HAT 0.5T W450 Face: PE 0.5 | Core: GB 12.5 | W: 450
SGP HAT 0.6T VCM W450 Face: VCM 0.6 | Core: GB 12.5 | W: 450
SGP U 0.5T W450 Face: PE 0.5 | Core: GB 12.5 | W: 450
SGP U 0.6T VCM W450 Face: VCM 0.6 | Core: GB 12.5 | W: 450
SGP WALL 0.5T W450 Face: PE 0.5 | Core: GB 12.5 | W: 450
SGP WALL 0.6T VCM W450 Face: VCM 0.6 | Core: GB 12.5 | W: 450
Metal Facade PanelsENGONE
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE SGP Gypsum-Backed Steel Panel (Hat / U / Wall Type)

Brand ENGONE·Metal Facade Panels

Available part numbers (6)

SGP HAT 0.5T W450, SGP HAT 0.6T VCM W450, SGP U 0.5T W450, SGP U 0.6T VCM W450, SGP WALL 0.5T W450, SGP WALL 0.6T VCM W450

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
Colours & finishes
Open full size ↗
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGP HAT 0.5T W450Face: PE 0.5 | Core: GB 12.5 | W: 450
SGP HAT 0.6T VCM W450Face: VCM 0.6 | Core: GB 12.5 | W: 450
SGP U 0.5T W450Face: PE 0.5 | Core: GB 12.5 | W: 450
SGP U 0.6T VCM W450Face: VCM 0.6 | Core: GB 12.5 | W: 450
SGP WALL 0.5T W450Face: PE 0.5 | Core: GB 12.5 | W: 450
SGP WALL 0.6T VCM W450Face: VCM 0.6 | Core: GB 12.5 | W: 450
