• ENGONE Stainless Steel Profiled Sheet (V-115/250/330, C-52/76)
1 1

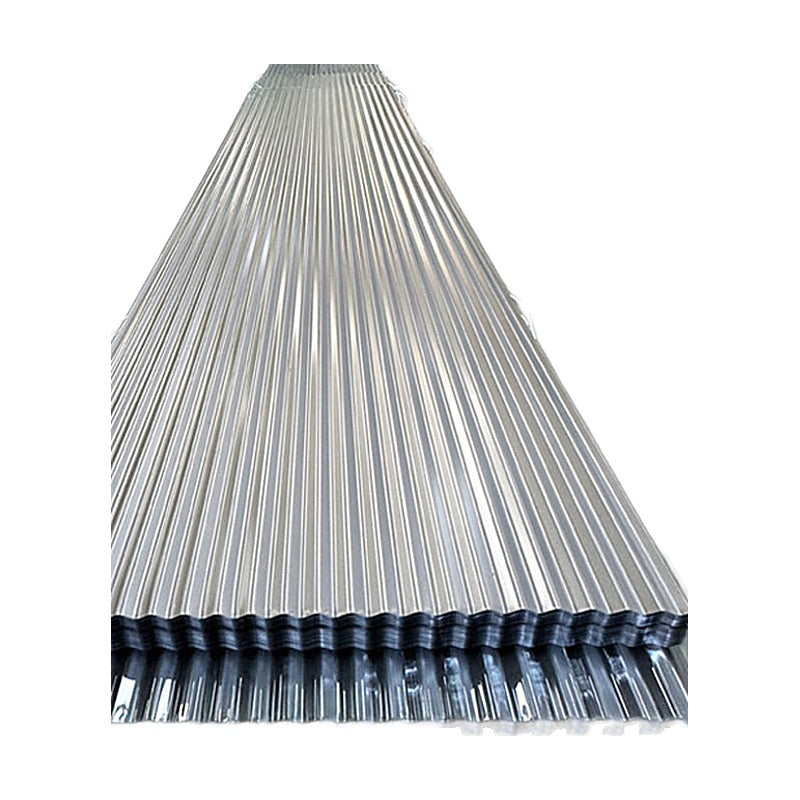

ENGONE Stainless Steel Profiled Sheet (V-115/250/330, C-52/76)

ENGONE Stainless Steel Profiled Sheet (V-115/250/330, C-52/76)

Roll-formed stainless steel (SUS) roofing and cladding sheet in trapezoidal (V) and corrugated (C) profiles for coastal, chemical-plant and factory buildings.

Key features

  • Trapezoidal V-115, V-250, V-330 and corrugated C-52, C-76 profiles roll-formed from SUS coil
  • Corrosion resistant where coated steel deteriorates: coastal sites, chemical complexes, industrial zones
  • Suitable for roof re-cladding over existing roofs and for exterior walls
  • Cut to project lengths; matching SUS ridge and flashings fabricated
  • Thickness 0.5 mm or 0.8 mm

Specifications

Material Stainless steel (SUS)
Flat coil width 1,219 mm
V-115 Cover 920, pitch 115, height 35 mm, 8 ribs
V-250 Cover 1,000, pitch 250, height 34 mm, 4 ribs
V-330 Cover 1,000, pitch 333, height 35 mm, 3 ribs
C-52 Cover 1,040, pitch 52, height 13 mm, 20 ribs
C-76 Cover 985, pitch 76, height 18 mm, 13 ribs
Thickness 0.5 / 0.8 mm
Length Cut to order
Source ENGONE product data sheet
SUS V115 0.5T Cover: 920 | P: 115 | H: 35 | T: 0.5 mm
SUS V115 0.8T Cover: 920 | P: 115 | H: 35 | T: 0.8 mm
SUS V250 0.5T Cover: 1000 | P: 250 | H: 34 | T: 0.5 mm
SUS V250 0.8T Cover: 1000 | P: 250 | H: 34 | T: 0.8 mm
SUS V330 0.5T Cover: 1000 | P: 333 | H: 35 | T: 0.5 mm
SUS V330 0.8T Cover: 1000 | P: 333 | H: 35 | T: 0.8 mm
SUS C52 0.5T Cover: 1040 | P: 52 | H: 13 | T: 0.5 mm
SUS C52 0.8T Cover: 1040 | P: 52 | H: 13 | T: 0.8 mm
SUS C76 0.5T Cover: 985 | P: 76 | H: 18 | T: 0.5 mm
SUS C76 0.8T Cover: 985 | P: 76 | H: 18 | T: 0.8 mm
Stainless & Aluminium SheetsENGONE
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Stainless Steel Profiled Sheet (V-115/250/330, C-52/76)

Brand ENGONE·Stainless & Aluminium Sheets

Available part numbers (10)

SUS V115 0.5T, SUS V115 0.8T, SUS V250 0.5T, SUS V250 0.8T, SUS V330 0.5T, SUS V330 0.8T, SUS C52 0.5T, SUS C52 0.8T, SUS C76 0.5T, SUS C76 0.8T

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SUS V115 0.5TCover: 920 | P: 115 | H: 35 | T: 0.5 mm
SUS V115 0.8TCover: 920 | P: 115 | H: 35 | T: 0.8 mm
SUS V250 0.5TCover: 1000 | P: 250 | H: 34 | T: 0.5 mm
SUS V250 0.8TCover: 1000 | P: 250 | H: 34 | T: 0.8 mm
SUS V330 0.5TCover: 1000 | P: 333 | H: 35 | T: 0.5 mm
SUS V330 0.8TCover: 1000 | P: 333 | H: 35 | T: 0.8 mm
SUS C52 0.5TCover: 1040 | P: 52 | H: 13 | T: 0.5 mm
SUS C52 0.8TCover: 1040 | P: 52 | H: 13 | T: 0.8 mm
SUS C76 0.5TCover: 985 | P: 76 | H: 18 | T: 0.5 mm
SUS C76 0.8TCover: 985 | P: 76 | H: 18 | T: 0.8 mm
