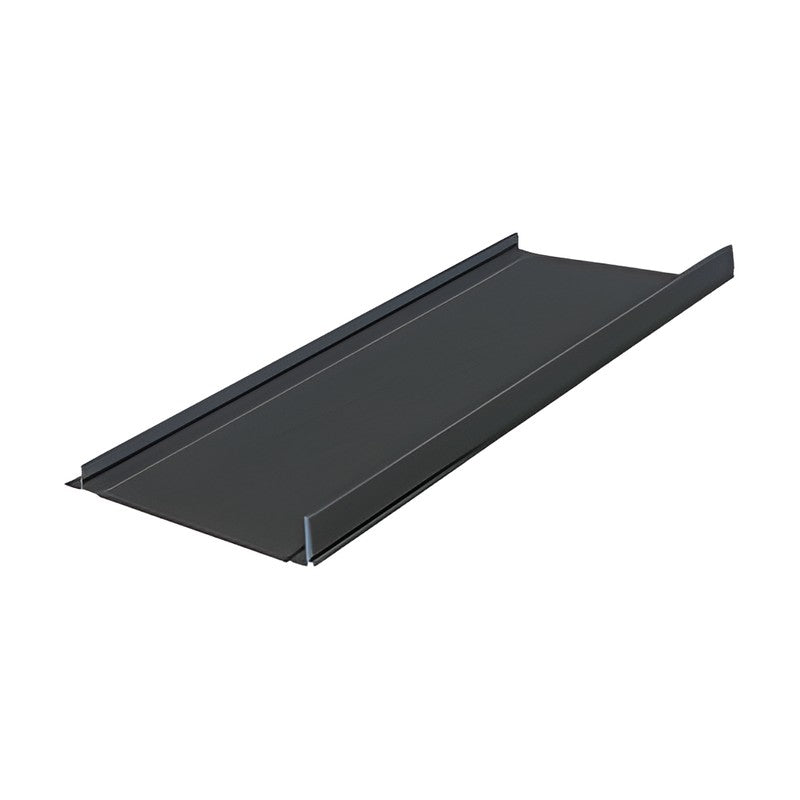

ENGONE Standing Seam Zinc-Look Steel Sheet (Z-450 / Z-370 / K-500)

Flat-pan standing seam steel sheet giving a zinc-panel appearance on roofs and walls. Lock-type Z-series and seamed K-500 profiles.

Key features

Lock-type pans with 450, 370 and 245 mm cover widths
K-500 machine-seamed roof pan, 500 mm cover
38 mm standing rib
PE foam backing available on Z-series
Colour-coated and printed zinc-look finishes

Specifications

Profiles	Z-450, Z-370, Z-245, K-500
Thickness	0.5-0.8 mm
Use	Roof and wall (K-500: roof)
Joint	Lock type (Z-series); seamed (K-500)
Substrate	Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal	GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up	Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Physical (0.5 mm)	Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Zinc-look colours	Zinc Black, Real Zinc, Zinc Copper, Anodizing Grey + standard colours
Source	ENGONE product data sheet

Z-450		Cover: 450 mm \| H: 38 mm \| Flat: 610 mm
Z-370		Cover: 370 mm \| H: 38 mm \| Flat: 530 mm
Z-245		Cover: 245 mm \| H: 38 mm \| Flat: 405 mm
K-500		Cover: 500 mm \| H: 38 mm \| Joint: seam

Formed Steel SheetsENGONE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Standing Seam Zinc-Look Steel Sheet (Z-450 / Z-370 / K-500)

Brand ENGONE·Formed Steel Sheets

Available part numbers (4)

Z-450, Z-370, Z-245, K-500

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	Z-450	Cover: 450 mm \| H: 38 mm \| Flat: 610 mm
	Z-370	Cover: 370 mm \| H: 38 mm \| Flat: 530 mm
	Z-245	Cover: 245 mm \| H: 38 mm \| Flat: 405 mm
	K-500	Cover: 500 mm \| H: 38 mm \| Joint: seam
