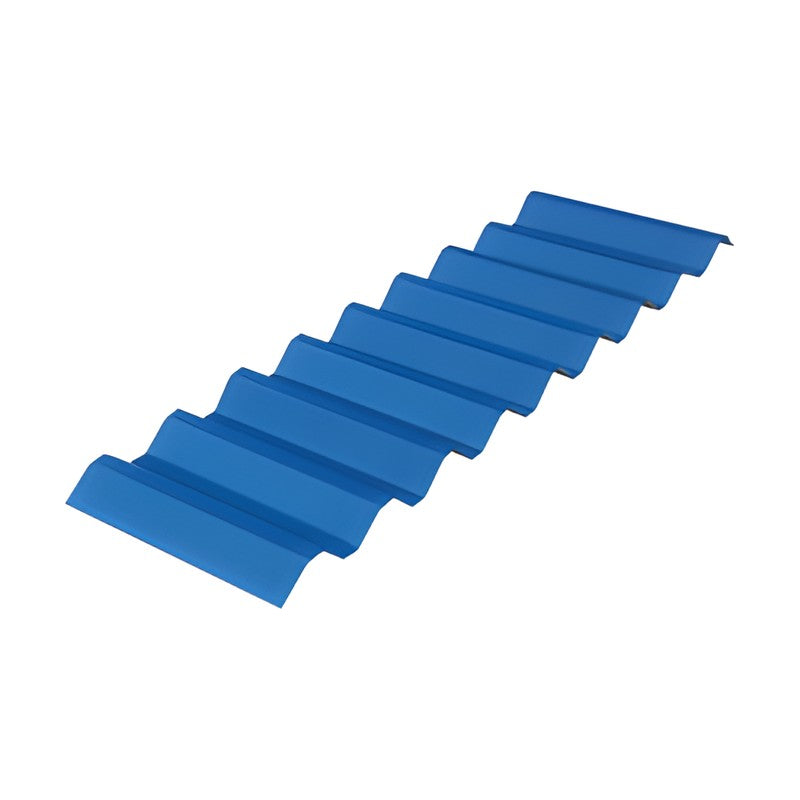

ENGONE Trapezoidal Formed Steel Sheet (V-115 / V-250 / V-330)

ENGONE Trapezoidal Formed Steel Sheet (V-115 / V-250 / V-330)

Roll-formed trapezoidal steel sheet for roofs and walls, including overlay re-roofing of old sheet roofs. Light weight limits the load added to existing structures.

Key features

  • Profiles V-115, V-250 (4-rib), V-330 (3-rib), V-220, W-255, U-135, U-280
  • Carbon steel or stainless (SUS) on V-115, V-250, V-330
  • Overlap side joint, fixed with self-drilling screws
  • Suited to overlay roofing without removing the existing roof
  • PE foam backing available on V-115, V-250, V-330

Specifications

Flat sheet width 1,219 mm (V-220 / W-255: 914 mm)
Thickness 0.5 mm, 0.8 mm (other profiles 0.5-0.8 mm)
Material Colour-coated carbon steel (CS); SUS option
Joint Overlap
Substrate Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Physical (0.5 mm) Weight 4.17 kg/m² (0.5 mm); E 211x10^4 kgf/cm²; CTE 11.5x10^-6 /°C
Standard colours White, Ivory, Dark Beige, Silver Grey, Titanium Silver, Grey, Galvalume, Stainless Look (STS), Yellow, Orange, Red, Chestnut Brown, Green, Blue, Cobalt Blue, Black
Print colours Zinc Copper, Real Zinc, Zinc Black, Anodizing Grey, Hairline Silver Grey, Hairline Brown, Wrinkle Grey, Wrinkle Black, Wrinkle Brown, Corten Grey, Corten Black, Corten Brown, Natural Wood, Rose Wood, Light Wood, Bronze Wood, Dark Wood
Source ENGONE product data sheet
V-115 CS 0.5T Cover: 920 mm | H: 35 mm | t: 0.5
V-115 CS 0.8T Cover: 920 mm | H: 35 mm | t: 0.8
V-115 SUS 0.5T Cover: 920 mm | H: 35 mm | t: 0.5
V-115 SUS 0.8T Cover: 920 mm | H: 35 mm | t: 0.8
V-250 CS 0.5T Cover: 1000 mm | H: 32 mm | t: 0.5
V-250 CS 0.8T Cover: 1000 mm | H: 32 mm | t: 0.8
V-250 SUS 0.5T Cover: 1000 mm | H: 32 mm | t: 0.5
V-250 SUS 0.8T Cover: 1000 mm | H: 32 mm | t: 0.8
V-330 CS 0.5T Cover: 1000 mm | H: 35 mm | t: 0.5
V-330 CS 0.8T Cover: 1000 mm | H: 35 mm | t: 0.8
V-330 SUS 0.5T Cover: 1000 mm | H: 35 mm | t: 0.5
V-330 SUS 0.8T Cover: 1000 mm | H: 35 mm | t: 0.8
V-220 CS Cover: 660 mm | H: 72 mm | Use: roof
W-255 CS Cover: 510 mm | H: 143 mm | Use: roof
U-135 CS Cover: 1080 mm | H: 12 mm | Ribs: 8
U-280 CS Cover: 840 mm | H: 13 mm | Pitch: 280
Formed Steel SheetsENGONE
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Trapezoidal Formed Steel Sheet (V-115 / V-250 / V-330)

Brand ENGONE·Formed Steel Sheets

Available part numbers (16)

V-115 CS 0.5T, V-115 CS 0.8T, V-115 SUS 0.5T, V-115 SUS 0.8T, V-250 CS 0.5T, V-250 CS 0.8T, V-250 SUS 0.5T, V-250 SUS 0.8T, V-330 CS 0.5T, V-330 CS 0.8T + 6 more — see full table ↓

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
Colours & finishes
Open full size ↗
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
V-115 CS 0.5TCover: 920 mm | H: 35 mm | t: 0.5
V-115 CS 0.8TCover: 920 mm | H: 35 mm | t: 0.8
V-115 SUS 0.5TCover: 920 mm | H: 35 mm | t: 0.5
V-115 SUS 0.8TCover: 920 mm | H: 35 mm | t: 0.8
V-250 CS 0.5TCover: 1000 mm | H: 32 mm | t: 0.5
V-250 CS 0.8TCover: 1000 mm | H: 32 mm | t: 0.8
V-250 SUS 0.5TCover: 1000 mm | H: 32 mm | t: 0.5
V-250 SUS 0.8TCover: 1000 mm | H: 32 mm | t: 0.8
V-330 CS 0.5TCover: 1000 mm | H: 35 mm | t: 0.5
V-330 CS 0.8TCover: 1000 mm | H: 35 mm | t: 0.8
V-330 SUS 0.5TCover: 1000 mm | H: 35 mm | t: 0.5
V-330 SUS 0.8TCover: 1000 mm | H: 35 mm | t: 0.8
V-220 CSCover: 660 mm | H: 72 mm | Use: roof
W-255 CSCover: 510 mm | H: 143 mm | Use: roof
U-135 CSCover: 1080 mm | H: 12 mm | Ribs: 8
U-280 CSCover: 840 mm | H: 13 mm | Pitch: 280
