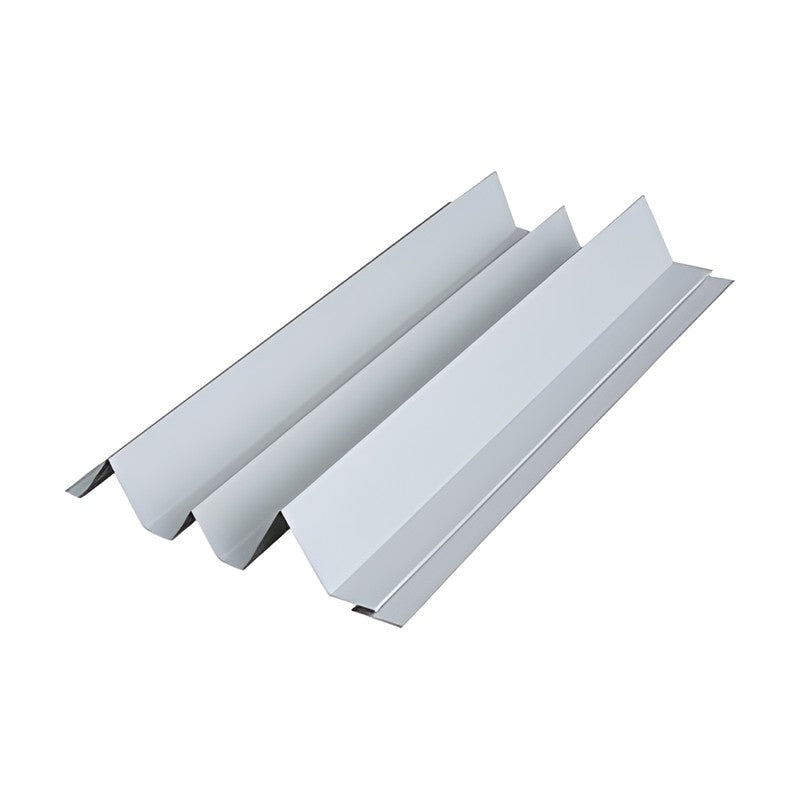

ENGONE Triangular Steel Louver (Mountain Profiles DS-315A-D / DS-340A)

Folded steel louvers with triangular (mountain) ribs in regular and irregular rhythms. D1 and D2 types can be combined for a random facade pattern.

Key features

Irregular triangular types D1 (A) and D2 (B), 78 mm rib height
D1/D2 mixed set with 630 mm module
DS-340A low triangular profile, 30 mm height
Boltless interlocking joint with concealed screw
Colour-coated, printed and digital-print finishes

Specifications

Profiles	DS-315A-D1, DS-315A-D2, D1/D2 mix, DS-340A
Thickness	0.5-0.8 mm
Length	700-6,000 mm
Substrate	Pre-painted per KS D 3520 (GI base) / KS D 3862 (GL base)
Base metal	GI (KS D 3506), GL (KS D 3770), Zn-Al-Mg (KS D 3030), 55% Al-Zn-Mg (KS D 3033)
Coating build-up	Epoxy primer 3-5 µm + PE/PVDF top 15-20 µm; back epoxy 3-5 µm
Fixing	Boltless concealed-fix, interlocking joint
Louver colours	Dark Wood, Light Wood, Natural Wood, Rose Wood, Basalt, Marble, Zinc Black, Zinc Grey, Corten Brown, Zinc Copper, Hairline Silver, Matte Black, Titanium Silver, Red, Orange, Blue, Dark Grey, Yellow, Grey, Silver Grey, Ivory, White, Champagne Gold, Blue Purple
Source	ENGONE product data sheet

LOUVER DS-315A-D1		W: 315 mm \| H: 78 mm \| t: 0.5-0.8 mm
LOUVER DS-315A-D2		W: 315 mm \| H: 78 mm \| t: 0.5-0.8 mm
LOUVER DS-315A-D1D2 MIX		W: 630 mm \| H: 78 mm \| t: 0.5-0.8 mm
LOUVER DS-340A		W: 340 mm \| H: 30 mm \| t: 0.5-0.8 mm

Steel LouversENGONE

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Triangular Steel Louver (Mountain Profiles DS-315A-D / DS-340A)

Brand ENGONE·Steel Louvers

Available part numbers (4)

LOUVER DS-315A-D1, LOUVER DS-315A-D2, LOUVER DS-315A-D1D2 MIX, LOUVER DS-340A

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
