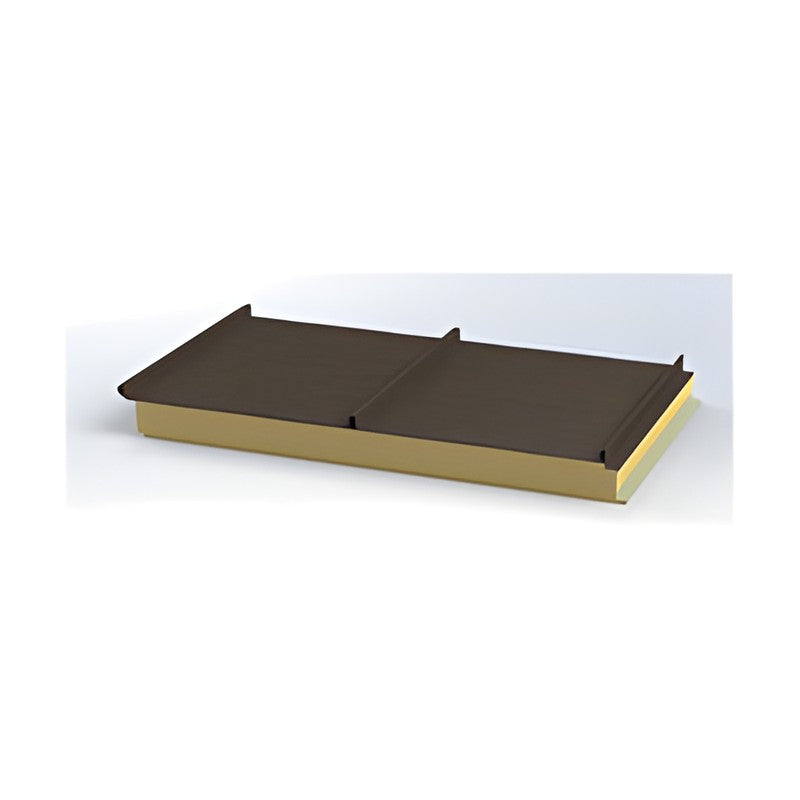

ENGONE Zinc-Look Sandwich Panel (Standing Seam, W1000)

ENGONE Zinc-Look Sandwich Panel (Standing Seam, W1000)

Standing-seam zinc-look sandwich panel with snap-lock joints, combining a metal-roof appearance with an insulated core for roofs and facades.

Key features

  • Snap-lock side joint with concealed fixing; seam spacing 1-rib (1000), 2-rib (500) or 3-rib (330)
  • Boltless zinc version with fully concealed fastening
  • Glass-wool board core per standard specification; PIR and EPS cores also offered per system brochure
  • Lengths 1,000-12,000 mm; over-transport lengths finished with top/bottom overlap
  • Zinc and print finishes (zinc black, zinc grey, real zinc, zinc copper) on pre-painted facing

Specifications

Panel width 1,000 mm (cover 999 mm)
Panel thickness 50-220 mm
Length 1,000-12,000 mm
Seam height Approx. 25-28 mm
Facing steel Pre-painted galvanised 0.5 mm
Facing standards KS D 3506 / 3770 / 3033 / 3030 hot-dip coated steel; painted per KS D 3520 (PPGI) / KS D 3862 (PPGL)
Core (GW) Glass-wool board 64 kg/m3, 0.028 kcal/mh C
Core options Glass wool 48/64/74K, PIR >= 40 kg/m3, EPS >= 15 kg/m3
Joint Snap lock
Colours Print: Zinc Copper, Real Zinc, Zinc Black, Zinc Navy, Hairline Silver Grey, Hairline Brown, Wrinkle Grey/Black/Brown, Corten Grey/Black/Brown, Natural/Light/Dark Wood; digital-print series Wood, Marble & Stone, Artcon, Rusty, Stripe, ArtMeta
Source ENGONE product data sheet
ZINC PANEL 1RIB GW Seam: 1-rib (1000) | Core: GW | W: 1000
ZINC PANEL 1RIB PIR Seam: 1-rib (1000) | Core: PIR | W: 1000
ZINC PANEL 1RIB EPS Seam: 1-rib (1000) | Core: EPS | W: 1000
ZINC PANEL 2RIB GW Seam: 2-rib (500) | Core: GW | W: 1000
ZINC PANEL 2RIB PIR Seam: 2-rib (500) | Core: PIR | W: 1000
ZINC PANEL 2RIB EPS Seam: 2-rib (500) | Core: EPS | W: 1000
ZINC PANEL 3RIB GW Seam: 3-rib (330) | Core: GW | W: 1000
ZINC PANEL 3RIB PIR Seam: 3-rib (330) | Core: PIR | W: 1000
ZINC PANEL 3RIB EPS Seam: 3-rib (330) | Core: EPS | W: 1000
ZINC PANEL BOLTLESS GW Seam: Boltless | Core: GW | W: 1000
ZINC PANEL BOLTLESS PIR Seam: Boltless | Core: PIR | W: 1000
ZINC PANEL BOLTLESS EPS Seam: Boltless | Core: EPS | W: 1000
Sandwich PanelsENGONE
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ENGONE Zinc-Look Sandwich Panel (Standing Seam, W1000)

Brand ENGONE·Sandwich Panels

Available part numbers (12)

ZINC PANEL 1RIB GW, ZINC PANEL 1RIB PIR, ZINC PANEL 1RIB EPS, ZINC PANEL 2RIB GW, ZINC PANEL 2RIB PIR, ZINC PANEL 2RIB EPS, ZINC PANEL 3RIB GW, ZINC PANEL 3RIB PIR, ZINC PANEL 3RIB EPS, ZINC PANEL BOLTLESS GW + 2 more — see full table ↓

How to order

Send the ENGONE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
Colours & finishes
Open full size ↗
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZINC PANEL 1RIB GWSeam: 1-rib (1000) | Core: GW | W: 1000
ZINC PANEL 1RIB PIRSeam: 1-rib (1000) | Core: PIR | W: 1000
ZINC PANEL 1RIB EPSSeam: 1-rib (1000) | Core: EPS | W: 1000
ZINC PANEL 2RIB GWSeam: 2-rib (500) | Core: GW | W: 1000
ZINC PANEL 2RIB PIRSeam: 2-rib (500) | Core: PIR | W: 1000
ZINC PANEL 2RIB EPSSeam: 2-rib (500) | Core: EPS | W: 1000
ZINC PANEL 3RIB GWSeam: 3-rib (330) | Core: GW | W: 1000
ZINC PANEL 3RIB PIRSeam: 3-rib (330) | Core: PIR | W: 1000
ZINC PANEL 3RIB EPSSeam: 3-rib (330) | Core: EPS | W: 1000
ZINC PANEL BOLTLESS GWSeam: Boltless | Core: GW | W: 1000
ZINC PANEL BOLTLESS PIRSeam: Boltless | Core: PIR | W: 1000
ZINC PANEL BOLTLESS EPSSeam: Boltless | Core: EPS | W: 1000
