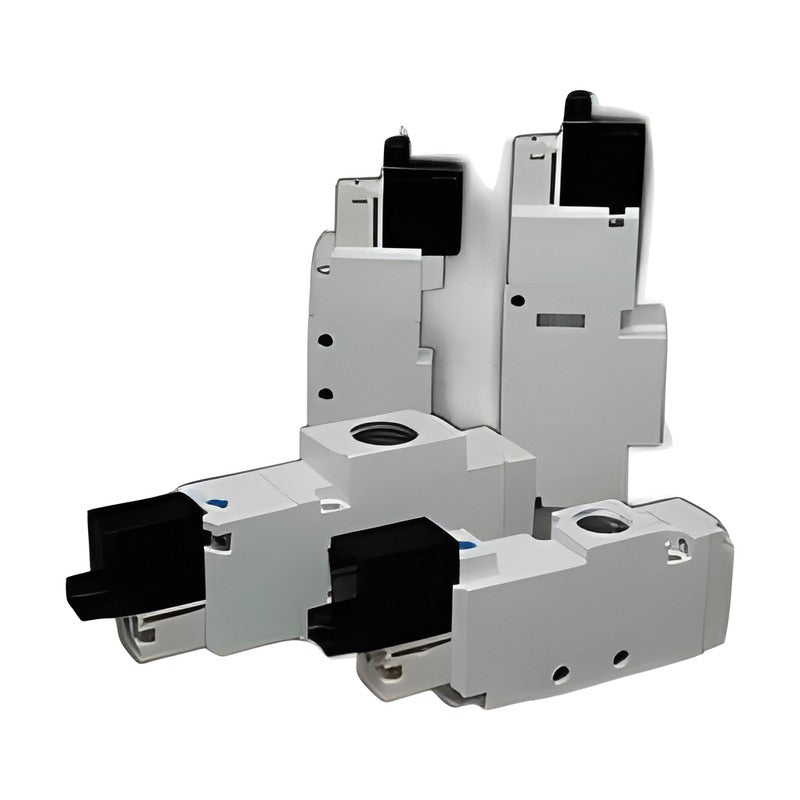

EVOTECH EKV Solenoid Valve for Air Supply / Vacuum Release

EVOTECH EKV Solenoid Valve for Air Supply / Vacuum Release

EVOTECH EKV solenoid valves for compressed-air supply and vacuum release (blow-off) on ejector systems. Two body sizes, EKV290 and EKV390, in four coil voltages.

Key features

  • Suitable as air supply and vacuum release valve
  • EKV290: effective area 10.5 mm2, PT1/8 and PT1/16 ports
  • EKV390: effective area 16 mm2, PT1/4 and PT1/8 ports
  • Coil voltages AC110V, AC220V, DC12V, DC24V
  • Power consumption 1 W or less; up to 5 cycles/s

Specifications

Product type Solenoid valve
Working pressure 0.15-0.7 MPa
Power consumption 1 W or less
Max operations 5 c/s
Order code EKV + model - voltage + E
Source EVOTECH EKV catalogue, p. 190-191
EKV290-1E Voltage: AC110V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV290-2E Voltage: AC220V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV290-3E Voltage: DC12V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV290-4E Voltage: DC24V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV390-1E Voltage: AC110V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
EKV390-2E Voltage: AC220V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
EKV390-3E Voltage: DC12V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
EKV390-4E Voltage: DC24V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
Vacuum ValvesEVOTECH
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EVOTECH EKV Solenoid Valve for Air Supply / Vacuum Release

Brand EVOTECH·Vacuum Valves

Available part numbers (8)

EKV290-1E, EKV290-2E, EKV290-3E, EKV290-4E, EKV390-1E, EKV390-2E, EKV390-3E, EKV390-4E

How to order

Send the EVOTECH part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EKV290-1EVoltage: AC110V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV290-2EVoltage: AC220V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV290-3EVoltage: DC12V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV290-4EVoltage: DC24V | Effective area: 10.5 mm2 (0.58) | Ports: PT1/8, PT1/16 | Mass: 49 g
EKV390-1EVoltage: AC110V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
EKV390-2EVoltage: AC220V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
EKV390-3EVoltage: DC12V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
EKV390-4EVoltage: DC24V | Effective area: 16 mm2 (0.9) | Ports: PT1/4, PT1/8 | Mass: 74.2 g
