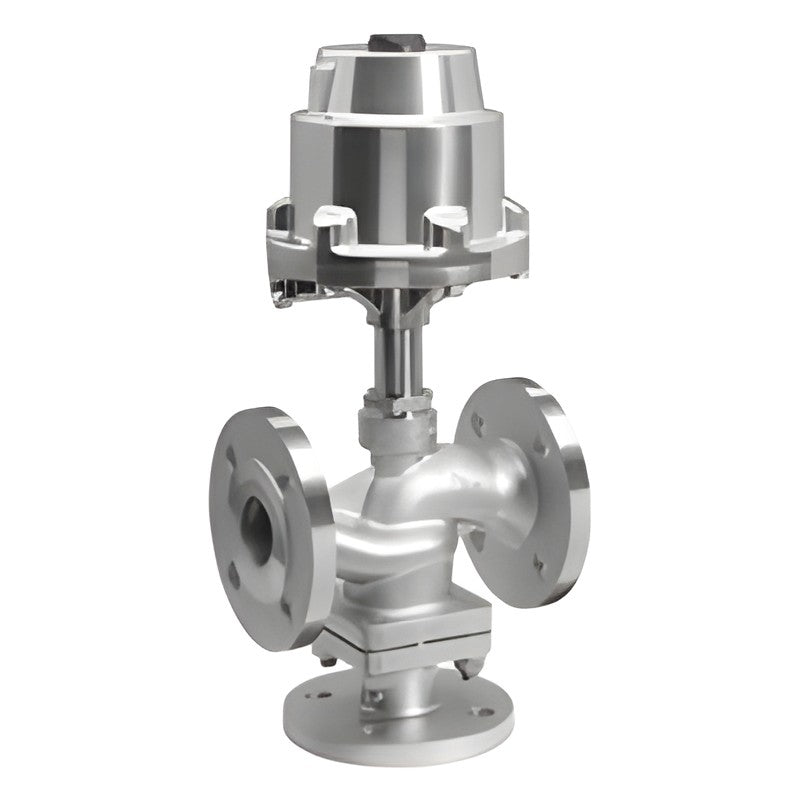

GEMÜ 312/314 Multi-Port Globe Valve (Pneumatic, DN 15-100)

GEMÜ 312/314: pneumatically operated multi-port globe valve for steam, water and process media. Available with pneumatic actuation and nominal sizes DN 15-100.

Key features

Pneumatic actuation
Connections: Flange
Body materials: 1.4408
Nominal sizes DN 15-100
Up to 16 bar operating pressure; media temperature up to 180 °C
Printed types: 312, 314

Specifications

Type	GEMÜ 312/314
Actuator	Pneumatic
Connection	Flange
Body material	1.4408, investment casting material
Nominal sizes	DN 15 (1/2"); DN 20 (3/4"); DN 25 (1"); DN 32 (1 1/4"); DN 40 (1 1/2"); DN 50 (2"); DN 65 (2 1/2"); DN 80 (3"); DN 100 (4")
Max. operating pressure	16 bar
Max. media temperature	180 °C
Min. media temperature	-10 °C
Product group	Angle seat and globe valves
Source	GEMÜ product overview: Angle seat and globe valves

GEMÜ 312		Actuator: Pneumatic \| Size: DN 15-100 \| Body: 1.4408 \| Pmax: 16 bar \| Tmax: 180 °C
GEMÜ 314		Actuator: Pneumatic \| Size: DN 15-100 \| Body: 1.4408 \| Pmax: 16 bar \| Tmax: 180 °C

Multi-Port Globe ValveGEMÜ

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 312/314 Multi-Port Globe Valve (Pneumatic, DN 15-100)

Brand GEMÜ·Multi-Port Globe Valve

Available part numbers (2)

GEMÜ 312, GEMÜ 314

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GEMÜ 312	Actuator: Pneumatic \| Size: DN 15-100 \| Body: 1.4408 \| Pmax: 16 bar \| Tmax: 180 °C
	GEMÜ 314	Actuator: Pneumatic \| Size: DN 15-100 \| Body: 1.4408 \| Pmax: 16 bar \| Tmax: 180 °C
