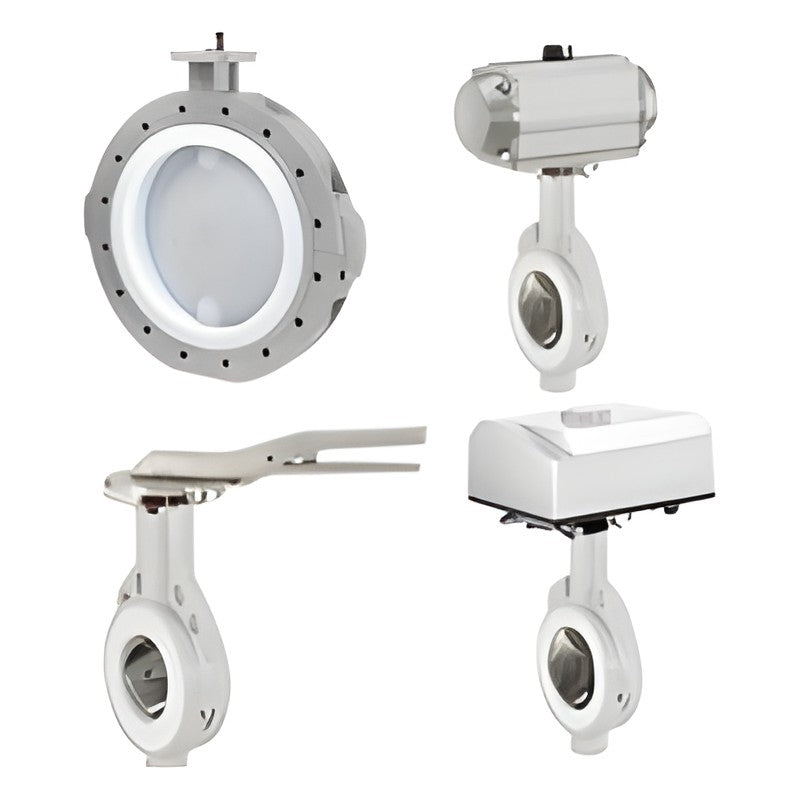

GEMÜ 490/491/497/498 Butterfly Valve (multiple actuators, DN 40-1000)

GEMÜ 490/491/497/498: butterfly valve with bare shaft for water, process and utility lines. Available with bare shaft, pneumatic, manual, motorized actuation and nominal sizes DN 40-1000.

Key features

Bare shaft, Pneumatic, Manual, Motorized actuation
Connections: Flange (lug); Flange (wafer)
Body materials: 1.4404, EN-GJS-400-18-LT, S355J2 + N, VE Duroplast
Nominal sizes DN 40-1000
Up to 10 bar operating pressure; media temperature up to 200 °C
Printed types: 490, 491, 497, 498

Specifications

Type	GEMÜ 490/491/497/498
Actuator	With bare shaft /Pneumatic/Manual/Motorized
Connection	Flange (lug); Flange (wafer)
Body material	1.4404, block material; EN-GJS-400-18-LT, SG iron material; S355J2 + N, cast steel material; VE Duroplast, reinforced
Nominal sizes	DN 40 (1 1/2"); DN 50 (2"); DN 65 (2 1/2"); DN 80 (3"); DN 100 (4"); DN 125 (5"); DN 150 (6"); DN 200; DN 250; DN 300; DN 350; DN 400; DN 450; DN 500; DN 600; DN 700; DN 900; DN 1000
Max. operating pressure	10 bar
Max. media temperature	200 °C
Min. media temperature	-20 °C
Product group	Butterfly valves
Source	GEMÜ product overview: Butterfly valves

GEMÜ 490		Actuator: Bare shaft \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
GEMÜ 491		Actuator: Pneumatic \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
GEMÜ 497		Actuator: Manual \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
GEMÜ 498		Actuator: Motorized \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C

Butterfly ValveGEMÜ

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 490/491/497/498 Butterfly Valve (multiple actuators, DN 40-1000)

Brand GEMÜ·Butterfly Valve

Available part numbers (4)

GEMÜ 490, GEMÜ 491, GEMÜ 497, GEMÜ 498

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GEMÜ 490	Actuator: Bare shaft \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
	GEMÜ 491	Actuator: Pneumatic \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
	GEMÜ 497	Actuator: Manual \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
	GEMÜ 498	Actuator: Motorized \| Size: DN 40-1000 \| Body: 1.4404/EN-GJS-400-18-LT \| Pmax: 10 bar \| Tmax: 200 °C
