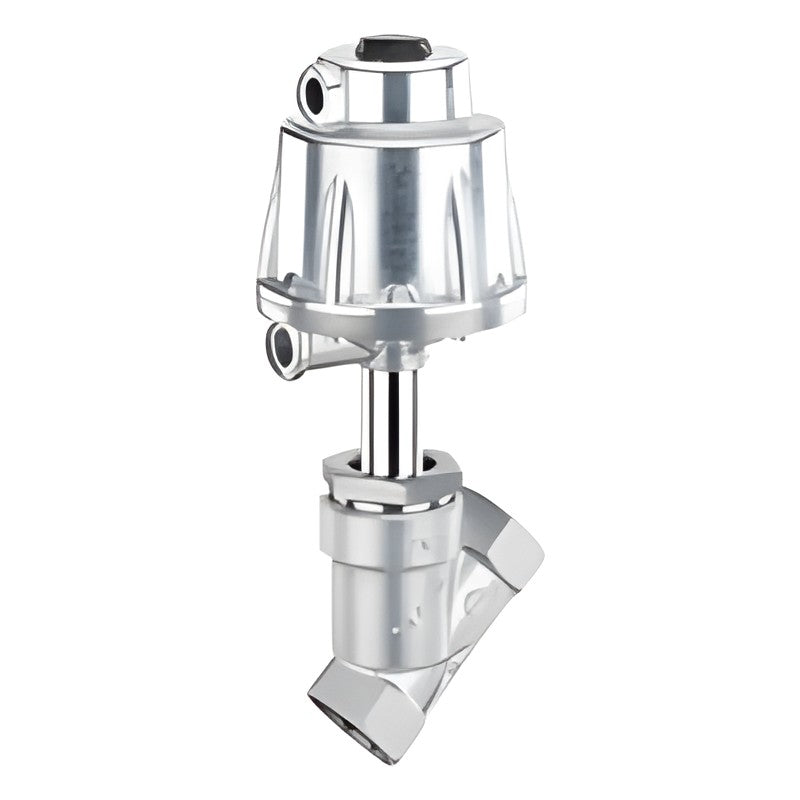

GEMÜ 514 Angle Seat Globe Valve (Pneumatic, DN 8-80)

GEMÜ 514: pneumatically operated angle seat globe valve for steam, water and process media. Available with pneumatic actuation and nominal sizes DN 8-80.

Key features

Pneumatic actuation
Connections: Clamp; Flange; Spigot; Threaded
Body materials: 1.4408, 1.4435, CC499K
Nominal sizes DN 8-80
Up to 25 bar operating pressure; media temperature up to 180 °C

Specifications

Type	GEMÜ 514
Actuator	Pneumatic
Connection	Clamp; Flange; Spigot; Threaded connection
Body material	1.4408, investment casting material; 1.4435, investment casting material; CC499K, cast bronze material
Nominal sizes	DN 8 (1/4"); DN 10 (3/8"); DN 15 (1/2"); DN 20 (3/4"); DN 25 (1"); DN 32 (1 1/4"); DN 40 (1 1/2"); DN 50 (2"); DN 65 (2 1/2"); DN 80 (3")
Max. operating pressure	25 bar
Max. media temperature	180 °C
Min. media temperature	-10 °C
Product group	Angle seat and globe valves
Source	GEMÜ product overview: Angle seat and globe valves

GEMÜ 514

Actuator: Pneumatic | Size: DN 8-80 | Body: 1.4408/1.4435/CC499K | Pmax: 25 bar | Tmax: 180 °C

Angle Seat Globe ValveGEMÜ

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 514 Angle Seat Globe Valve (Pneumatic, DN 8-80)

Brand GEMÜ·Angle Seat Globe Valve

Available part numbers (1)

GEMÜ 514

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GEMÜ 514	Actuator: Pneumatic \| Size: DN 8-80 \| Body: 1.4408/1.4435/CC499K \| Pmax: 25 bar \| Tmax: 180 °C
