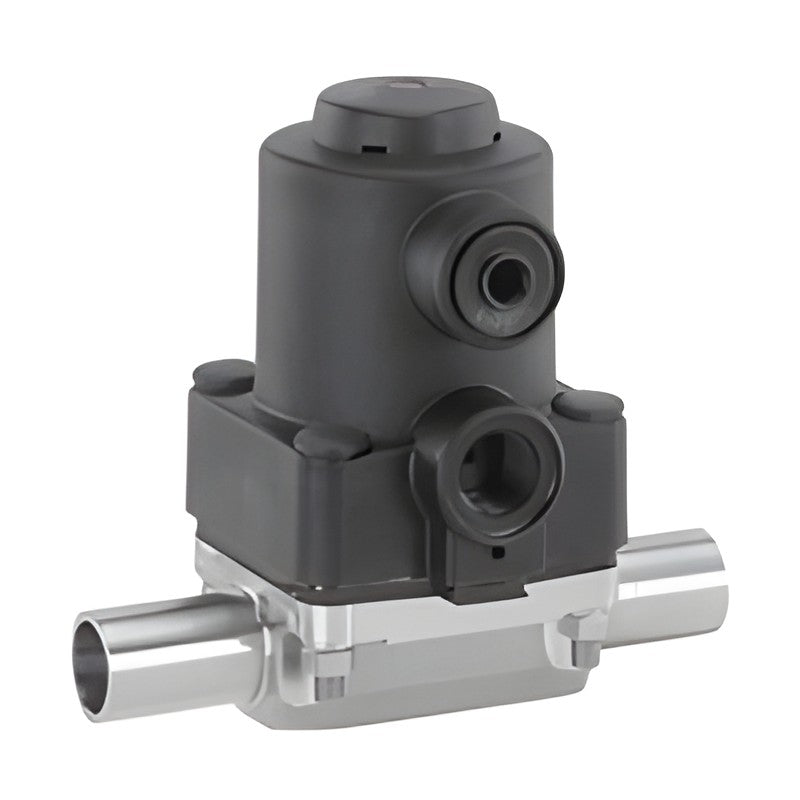

GEMÜ 615 Diaphragm Valve (Pneumatic, DN 10-20)

GEMÜ 615: pneumatically operated diaphragm valve for hygienic pharmaceutical, biotech and food processes. Available with pneumatic actuation and nominal sizes DN 10-20.

Key features

Pneumatic actuation
Connections: Clamp; Spigot; Threaded
Body materials: 1.4435, CW617N
Nominal sizes DN 10-20
Up to 6 bar operating pressure; media temperature up to 80 °C
Sterilisable, max. 150 °C

Specifications

Type	GEMÜ 615
Actuator	Pneumatic
Connection	Clamp; Spigot; Threaded connection
Body material	1.4435 (316L), forged material; 1.4435, investment casting material; CW617N, brass
Nominal sizes	DN 10 (3/8"); DN 15 (1/2"); DN 20 (3/4")
Max. operating pressure	6 bar
Max. media temperature	80 °C
Min. media temperature	-10 °C
Sterilisation temperature	max. 150 °C
Product group	Sanitary diaphragm valves
Source	GEMÜ product overview: Sanitary diaphragm valves

GEMÜ 615

Actuator: Pneumatic | Size: DN 10-20 | Body: 1.4435/CW617N | Pmax: 6 bar | Tmax: 80 °C

Diaphragm ValveGEMÜ

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 615 Diaphragm Valve (Pneumatic, DN 10-20)

Brand GEMÜ·Diaphragm Valve

Available part numbers (1)

GEMÜ 615

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GEMÜ 615	Actuator: Pneumatic \| Size: DN 10-20 \| Body: 1.4435/CW617N \| Pmax: 6 bar \| Tmax: 80 °C
