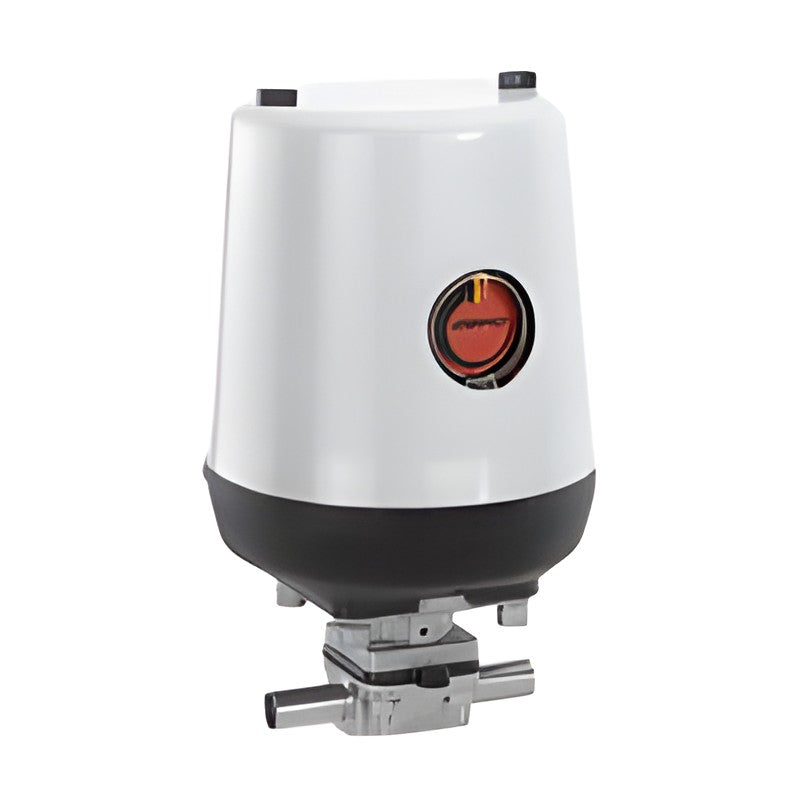

GEMÜ 618 Diaphragm Valve (Motorized, DN 4-20)

GEMÜ 618 Diaphragm Valve (Motorized, DN 4-20)

GEMÜ 618: motorized diaphragm valve for hygienic pharmaceutical, biotech and food processes. Available with motorized actuation and nominal sizes DN 4-20.

Key features

  • Motorized actuation
  • Connections: Clamp; Spigot; Threaded
  • Body materials: 1.4435, CW617N
  • Nominal sizes DN 4-20
  • Up to 6 bar operating pressure; media temperature up to 100 °C
  • Sterilisable, max. 150 °C

Specifications

Type GEMÜ 618
Actuator Motorized
Connection Clamp; Spigot; Threaded connection
Body material 1.4435 (316L), forged material; 1.4435, investment casting material; CW617N, brass
Nominal sizes DN 4; DN 6; DN 8 (1/4"); DN 10 (3/8"); DN 15 (1/2"); DN 20 (3/4")
Max. operating pressure 6 bar
Max. media temperature 100 °C
Min. media temperature -10 °C
Sterilisation temperature max. 150 °C
Product group Sanitary diaphragm valves
Source GEMÜ product overview: Sanitary diaphragm valves
GEMÜ 618 Actuator: Motorized | Size: DN 4-20 | Body: 1.4435/CW617N | Pmax: 6 bar | Tmax: 100 °C
Diaphragm ValveGEMÜ
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 618 Diaphragm Valve (Motorized, DN 4-20)

Brand GEMÜ·Diaphragm Valve

Available part numbers (1)

GEMÜ 618

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GEMÜ 618Actuator: Motorized | Size: DN 4-20 | Body: 1.4435/CW617N | Pmax: 6 bar | Tmax: 100 °C
