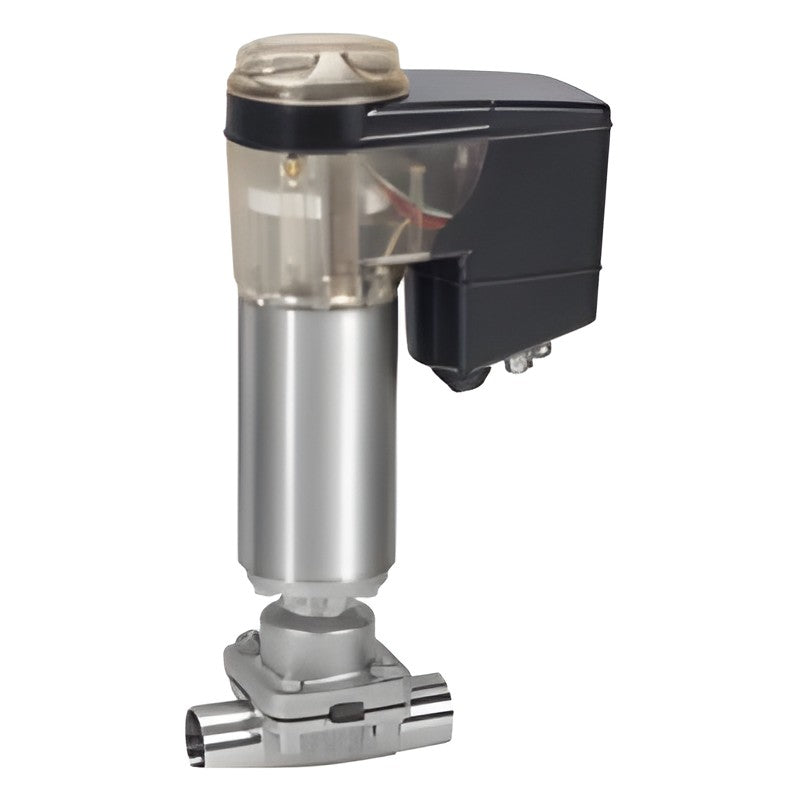

GEMÜ 649 Diaphragm Valve (Motorized, DN 32-50)

GEMÜ 649 Diaphragm Valve (Motorized, DN 32-50)

GEMÜ 649: motorized diaphragm valve for hygienic pharmaceutical, biotech and food processes. Available with motorized actuation and nominal sizes DN 32-50.

Key features

  • Motorized actuation
  • Connections: Clamp; Flange; Spigot; Threaded
  • Body materials: 1.4408, 1.4435, 1.4539, EN-GJL-250, EN-GJS-400-18-LT
  • Nominal sizes DN 32-50
  • Up to 10 bar operating pressure; media temperature up to 100 °C
  • Sterilisable, max. 150 °C

Specifications

Type GEMÜ 649
Actuator Motorized
Connection Clamp; Flange; Spigot; Threaded connection
Body material 1.4408, investment casting material; 1.4435 (316L), forged material; 1.4435 (BN2), forged material; 1.4435, investment casting material; 1.4539 (904L), forged material; EN-GJL-250, cast iron material; EN-GJS-400-18-LT, SG iron material
Nominal sizes DN 32 (1 1/4"); DN 40 (1 1/2"); DN 50 (2")
Max. operating pressure 10 bar
Max. media temperature 100 °C
Min. media temperature -10 °C
Sterilisation temperature max. 150 °C
Conformities BSE/TSE; FDA; Oxygen; Reg. (EU) No. 10/2011; Regulation (EC) No. 1935/2004; Regulation (EC) No. 2023/2006; TA Luft (German Clean Air Act); USP
Product group Sanitary diaphragm valves
Source GEMÜ product overview: Sanitary diaphragm valves
GEMÜ 649 Actuator: Motorized | Size: DN 32-50 | Body: 1.4408/1.4435/1.4539/EN-GJL-250 | Pmax: 10 bar | Tmax: 100 °C
