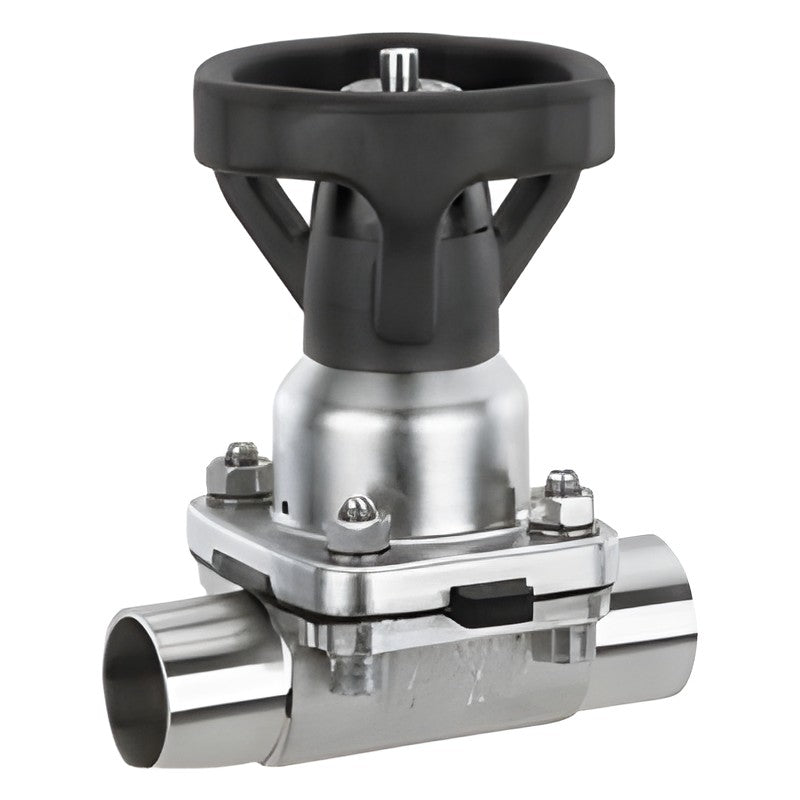

GEMÜ 653 Diaphragm Valve (Manual, DN 4-100)

GEMÜ 653: manually operated diaphragm valve for hygienic pharmaceutical, biotech and food processes. Available with manual actuation and nominal sizes DN 4-100.

Key features

Manual actuation
Connections: Clamp; Flange; Spigot; Threaded
Body materials: 1.4408, 1.4435, 1.4539
Nominal sizes DN 4-100
Up to 10 bar operating pressure; media temperature up to 100 °C
Sterilisable, max. 150 °C

Specifications

Type	GEMÜ 653
Actuator	Manual
Connection	Clamp; Flange; Spigot; Threaded connection
Body material	1.4408, investment casting material; 1.4435 (316L), forged material; 1.4435 (BN2), forged material; 1.4435, investment casting material; 1.4539 (904L), forged material
Nominal sizes	DN 4; DN 6; DN 10 (3/8"); DN 15 (1/2"); DN 20 (3/4"); DN 25 (1"); DN 32 (1 1/4"); DN 40 (1 1/2"); DN 50 (2"); DN 65 (2 1/2"); DN 80 (3"); DN 100 (4")
Max. operating pressure	10 bar
Max. media temperature	100 °C
Min. media temperature	-10 °C
Sterilisation temperature	max. 150 °C
Product group	Sanitary diaphragm valves
Source	GEMÜ product overview: Sanitary diaphragm valves

GEMÜ 653

Actuator: Manual | Size: DN 4-100 | Body: 1.4408/1.4435/1.4539 | Pmax: 10 bar | Tmax: 100 °C

Diaphragm ValveGEMÜ

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 653 Diaphragm Valve (Manual, DN 4-100)

Brand GEMÜ·Diaphragm Valve

Available part numbers (1)

GEMÜ 653

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GEMÜ 653	Actuator: Manual \| Size: DN 4-100 \| Body: 1.4408/1.4435/1.4539 \| Pmax: 10 bar \| Tmax: 100 °C
