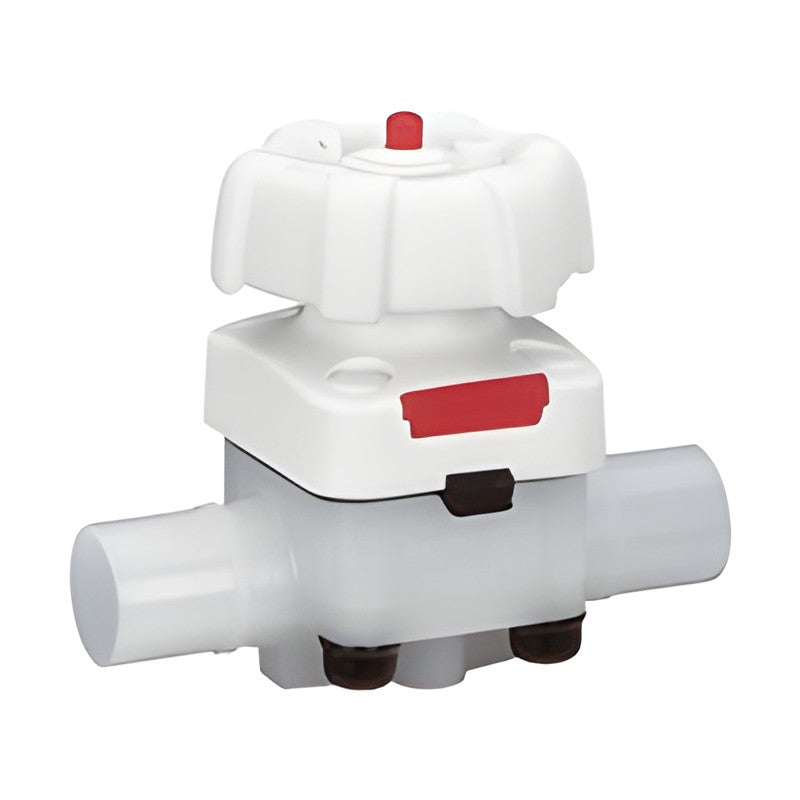

GEMÜ 677HP Diaphragm Valve (Manual, DN 15-100)

GEMÜ 677HP: manually operated diaphragm valve for high purity media such as semiconductor and ultrapure water lines. Available with manual actuation and nominal sizes DN 15-100.

Key features

Manual actuation
Connections: Spigot
Body materials: PFA / Outliner PVDF, PVDF
Nominal sizes DN 15-100
Up to 10 bar operating pressure; media temperature up to 80 °C

Specifications

Type	GEMÜ 677HP
Actuator	Manual
Connection	Spigot
Body material	Inliner PFA / Outliner PVDF, carbon fibre reinforced; PVDF
Nominal sizes	DN 15 (1/2"); DN 20 (3/4"); DN 25 (1"); DN 32 (1 1/4"); DN 40 (1 1/2"); DN 50 (2"); DN 65 (2 1/2"); DN 80 (3"); DN 100 (4")
Max. operating pressure	10 bar
Max. media temperature	80 °C
Min. media temperature	-20 °C
Actuator movement	Linear actuator
Product group	High purity valves (PVDF/PFA)
Source	GEMÜ product overview: High purity valves (PVDF/PFA)

GEMÜ 677HP

Actuator: Manual | Size: DN 15-100 | Body: PFA / Outliner PVDF/PVDF | Pmax: 10 bar | Tmax: 80 °C

Diaphragm ValveGEMÜ

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GEMÜ 677HP Diaphragm Valve (Manual, DN 15-100)

Brand GEMÜ·Diaphragm Valve

Available part numbers (1)

GEMÜ 677HP

How to order

Send the GEMÜ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GEMÜ 677HP	Actuator: Manual \| Size: DN 15-100 \| Body: PFA / Outliner PVDF/PVDF \| Pmax: 10 bar \| Tmax: 80 °C
