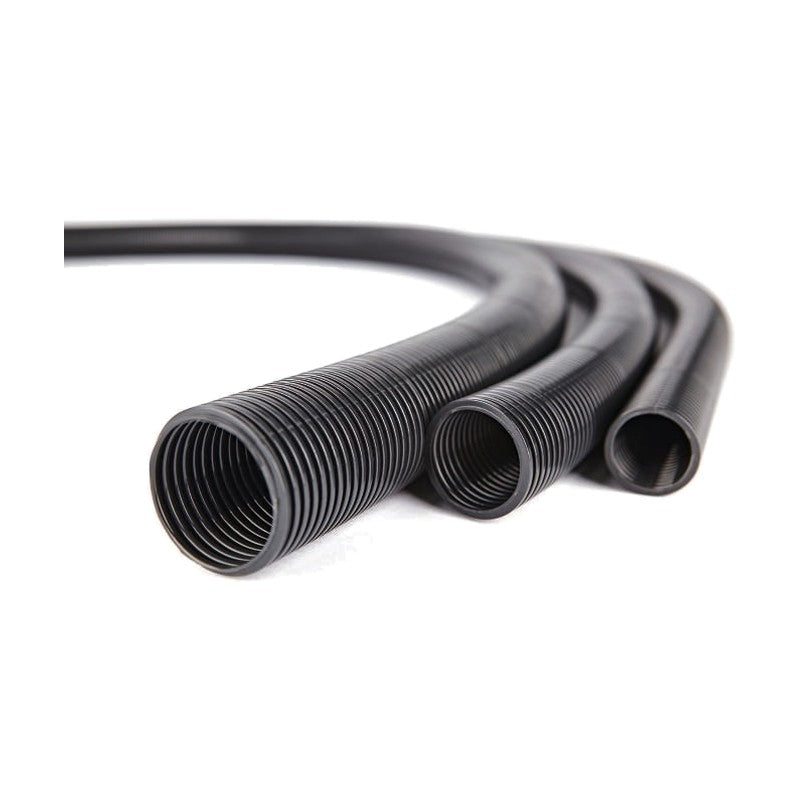

Hanshin Chain HSRF Round RoboFlex Conduit for Articulated Robots
Hanshin Chain HSRF Round RoboFlex Conduit for Articulated Robots
Round flexible conduits in a special material for routing cables on articulated (multi-joint) robots, with HSRT band mounts and end caps.
Key features
- Special material resists twisting and recovers its shape
- Designed for articulated robots
- HSRT 23B band clamps and end caps available
| HSRF 23B | Dynamic bending radius: 40 mm | Outer diameter: 28.5 mm | Inner diameter: 23 mm | |
| HSRF 29B | Dynamic bending radius: 50 mm | Outer diameter: 34.5 mm | Inner diameter: 29 mm | |
| HSRF 36B | Dynamic bending radius: 60 mm | Outer diameter: 42.5 mm | Inner diameter: 37 mm | |
| HSRT 23B BAND 50 | Band mount for HSRF 23B | Mounting range: 50-80 mm diameter | |
| HSRT 23B BAND 80 | Band mount for HSRF 23B | Mounting range: 80-130 mm diameter |
Cable Protection ConduitsHanshin Chain
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Hanshin Chain HSRF Round RoboFlex Conduit for Articulated Robots
Available part numbers (5)
HSRF 23B, HSRF 29B, HSRF 36B, HSRT 23B BAND 50, HSRT 23B BAND 80
How to order
Send the Hanshin Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Hanshin Chain
Cable Protection Conduits
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| HSRF 23B | Dynamic bending radius: 40 mm | Outer diameter: 28.5 mm | Inner diameter: 23 mm | ||
| HSRF 29B | Dynamic bending radius: 50 mm | Outer diameter: 34.5 mm | Inner diameter: 29 mm | ||
| HSRF 36B | Dynamic bending radius: 60 mm | Outer diameter: 42.5 mm | Inner diameter: 37 mm | ||
| HSRT 23B BAND 50 | Band mount for HSRF 23B | Mounting range: 50-80 mm diameter | ||
| HSRT 23B BAND 80 | Band mount for HSRF 23B | Mounting range: 80-130 mm diameter |
