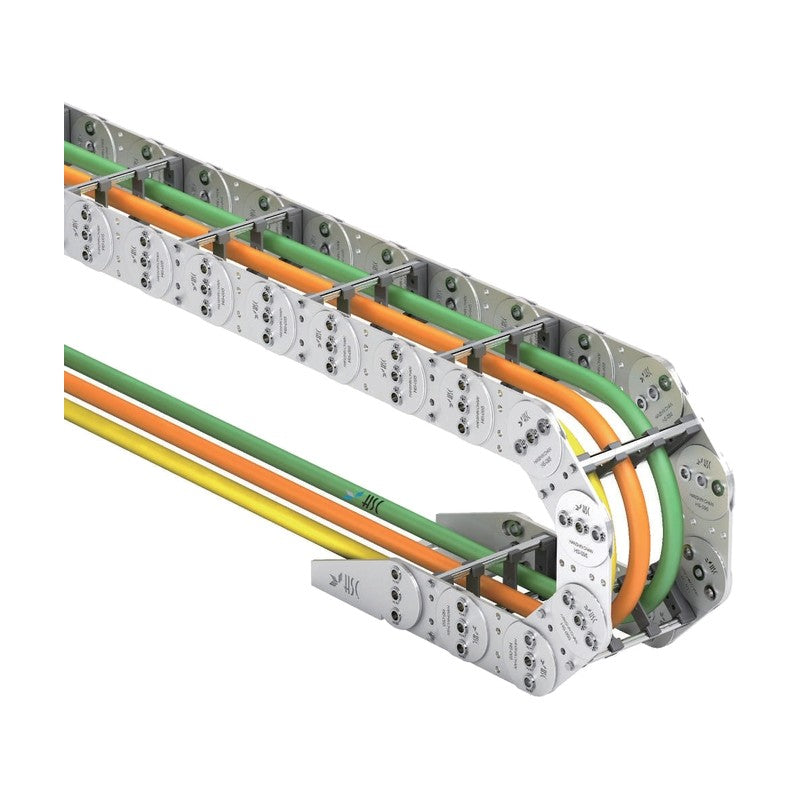

Hanshin Chain HSS Series Steel Cable Chain, Heavy Duty
Hanshin Chain HSS Series Steel Cable Chain, Heavy Duty
Heavy-duty steel cable carriers with aluminium/plastic supporters for steel mills, machine tools, transfer equipment and plants.
Key features
- Supporter bars remove easily for quick cable and hose installation; dividers adjustable
- Standardised supporter parts shorten delivery
- Unnecessary weight removed; easy to add cables later
- Stainless steel plates available for corrosive environments
- Options: bed type, vertical type, chip cover type
Specifications
| Material | S45C steel plates, aluminium, engineering plastic |
|---|---|
| Max. speed | 60 m/min |
| Max. cable/hose diameter | 80 mm |
| Operating temperature | -25 to 100 C |
| Finish | White zinc plating |
| HSS 130 | Pitch: 130 mm | Bending radius R: 200, 250, 300, 400, 500 mm | Overall height H: 2R + 96 mm | Max. cable/hose OD: 50 mm | |
| HSS 180 | Pitch: 180 mm | Bending radius R: 250, 300, 400, 500, 600, 700 mm | Overall height H: 2R + 140 mm | Max. cable/hose OD: 80 mm | |
| HSS 250 | Pitch: 250 mm | Bending radius R: 350, 450, 600, 750 mm | Overall height H: 2R + 220 mm | Max. cable/hose OD: 80 mm |
Cable CarriersHanshin Chain
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Hanshin Chain HSS Series Steel Cable Chain, Heavy Duty
Available part numbers (3)
HSS 130, HSS 180, HSS 250
How to order
Send the Hanshin Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Hanshin Chain
Cable Carriers
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| HSS 130 | Pitch: 130 mm | Bending radius R: 200, 250, 300, 400, 500 mm | Overall height H: 2R + 96 mm | Max. cable/hose OD: 50 mm | ||
| HSS 180 | Pitch: 180 mm | Bending radius R: 250, 300, 400, 500, 600, 700 mm | Overall height H: 2R + 140 mm | Max. cable/hose OD: 80 mm | ||
| HSS 250 | Pitch: 250 mm | Bending radius R: 350, 450, 600, 750 mm | Overall height H: 2R + 220 mm | Max. cable/hose OD: 80 mm |
Need a different model, or a part not listed here? Send us your parts list →
