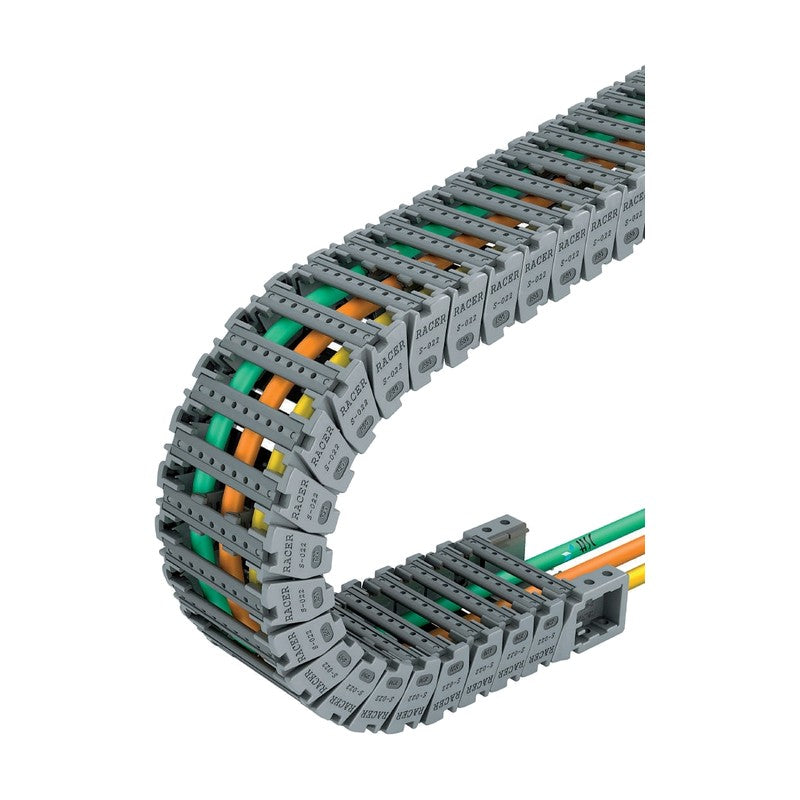

Hanshin Chain RACER PLUS SL Series Low-Noise Clean-Room Cable Chain

Hanshin Chain RACER PLUS SL Series Low-Noise Clean-Room Cable Chain

Low-noise, low-dust plastic cable carriers (cable drag chains) for clean rooms, secondary-battery, semiconductor, display and precision-stage equipment.

Key features

  • Certified for ISO Class 1 clean rooms; 39 dB(A) running noise
  • Easy length adjustment; inner widths from 20 to 295 mm
  • Upper and lower bars can be reversed to fix the dividers
  • Options: N type, HST-PAD inserts, GS type (selected widths), engineering-plastic strain relief (PL-S/R)
  • Made from Robo-S Mate polyamide developed for RoboChain to reduce wear, noise and dust

Specifications

Material Engineering plastic (Robo-S Mate polyamide)
Noise 39 dB(A)
Clean room class ISO Class 1
Operating temperature -10 to 90 C
Hanshin Chain RACER PLUS SL Series Low-Noise Clean-Room Cable Chain
SL-015 Pitch: 15 mm | Bending radius R: 37, 50, 75, 100 mm | Inner width B: 20~100 mm | Inner height: 19 mm | Overall height H: 2R + 28 mm (min.) | Free span: 1 m
SL-015N Pitch: 15 mm | Bending radius R: 37, 50, 75, 100 mm | Inner width B: 20~100 mm | Inner height: 19 mm | Overall height H: 2R + 28 mm (min.) | Free span: 1 m | Version: N type
SL-022 Pitch: 22 mm | Bending radius R: 55, 75, 90, 110 mm | Inner width B: 36~140 mm | Inner height: 28 mm | Overall height H: 2R + 44 mm (min.)
SL-022N Pitch: 22 mm | Bending radius R: 55, 75, 90, 110 mm | Inner width B: 36~140 mm | Inner height: 28 mm | Overall height H: 2R + 44 mm (min.) | Version: N type
SL-033 Pitch: 33 mm | Bending radius R: 75, 90, 120, 150 mm | Inner width B: 36~140 mm | Inner height: 42 mm | Overall height H: 2R + 60 mm (min.)
SL-033N Pitch: 33 mm | Bending radius R: 75, 90, 120, 150 mm | Inner width B: 36~140 mm | Inner height: 42 mm | Overall height H: 2R + 60 mm (min.) | Version: N type
SL-044 Pitch: 44 mm | Bending radius R: 100, 120, 150, 200 mm | Inner width B: 70~295 mm | Inner height: 63 mm | Overall height H: 2R + 88 mm (min.)
SL-055 Pitch: 55 mm | Bending radius R: 150, 180, 200, 250, 300 mm | Inner width B: 70~295 mm | Inner height: 82 mm | Overall height H: 2R + 110 mm (min.)
Cable CarriersHanshin Chain
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hanshin Chain RACER PLUS SL Series Low-Noise Clean-Room Cable Chain

Brand Hanshin Chain·Cable Carriers

Available part numbers (8)

SL-015, SL-015N, SL-022, SL-022N, SL-033, SL-033N, SL-044, SL-055

How to order

Send the Hanshin Chain part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Hanshin Chain RACER PLUS SL Series Low-Noise Clean-Room Cable Chain
0 selected
RFQ List (0)
Product codeSpec
SL-015Pitch: 15 mm | Bending radius R: 37, 50, 75, 100 mm | Inner width B: 20~100 mm | Inner height: 19 mm | Overall height H: 2R + 28 mm (min.) | Free span: 1 m
SL-015NPitch: 15 mm | Bending radius R: 37, 50, 75, 100 mm | Inner width B: 20~100 mm | Inner height: 19 mm | Overall height H: 2R + 28 mm (min.) | Free span: 1 m | Version: N type
SL-022Pitch: 22 mm | Bending radius R: 55, 75, 90, 110 mm | Inner width B: 36~140 mm | Inner height: 28 mm | Overall height H: 2R + 44 mm (min.)
SL-022NPitch: 22 mm | Bending radius R: 55, 75, 90, 110 mm | Inner width B: 36~140 mm | Inner height: 28 mm | Overall height H: 2R + 44 mm (min.) | Version: N type
SL-033Pitch: 33 mm | Bending radius R: 75, 90, 120, 150 mm | Inner width B: 36~140 mm | Inner height: 42 mm | Overall height H: 2R + 60 mm (min.)
SL-033NPitch: 33 mm | Bending radius R: 75, 90, 120, 150 mm | Inner width B: 36~140 mm | Inner height: 42 mm | Overall height H: 2R + 60 mm (min.) | Version: N type
SL-044Pitch: 44 mm | Bending radius R: 100, 120, 150, 200 mm | Inner width B: 70~295 mm | Inner height: 63 mm | Overall height H: 2R + 88 mm (min.)
SL-055Pitch: 55 mm | Bending radius R: 150, 180, 200, 250, 300 mm | Inner width B: 70~295 mm | Inner height: 82 mm | Overall height H: 2R + 110 mm (min.)
