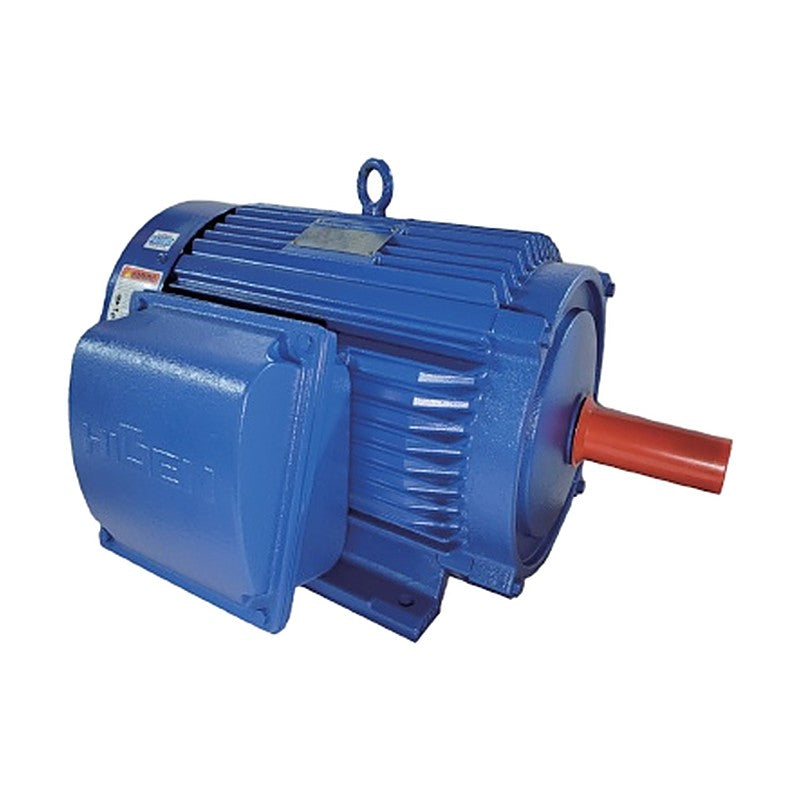

HIGEN RNM Ex d / Ex tb Flameproof Explosion-Proof Motors (71M-355L)

HIGEN RNM Ex d / Ex tb Flameproof Explosion-Proof Motors (71M-355L)

HIGEN RNM flameproof (Ex d IIB/IIC T4-T6) and dust ignition-proof (Ex tb IIIB/IIIC T125°C Db) three-phase induction motors, foot (IMB3) or flange (IMB5) mounted.

Key features

  • Flameproof enclosure withstands internal explosion pressure and prevents flame propagation (Ex d IIB / IIC, T4/T5/T6)
  • Dust ignition-proof version Ex tb IIIB / IIIC T125°C Db, IP65 or IP66
  • ATEX, IECEx, KTL and KGS explosion-proof certifications
  • Horizontal IMB3, vertical IMB5 and B3B5 constructions; TEFC, TEAO or TENV cooling
  • Flange FF130-FF500 for frames 71M-250M
  • Meets minimum efficiency regulations of the Korean Energy Use Rationalization Act

Specifications

Gas protection Ex d IIB / IIC, T4 / T5 / T6
Dust protection Ex tb IIIB / IIIC T125°C Db
Protection grade IP55 / 56 / 65 / 66
Enclosure TEFC / TEAO / TENV
Mounting IMB3, IMB5 (V1), B3B5
Ambient temperature -20 to +50 °C
Hazardous area Class 1, Class 2 places
Certifications ATEX, IECEx, KTL, KGS
Output range 0.2-260 kW
Source HIGEN RNM Low Voltage Motor catalog, p. 20-21
Ex d 71M 2P 0.4kW Output: 0.4 kW | Poles: 2 | Shaft: Ø14j6 | Flange: FF130 | Weight: 22 kg
Ex d 71M 4P 0.2kW Output: 0.2 kW | Poles: 4 | Shaft: Ø14j6 | Flange: FF130 | Weight: 22 kg
Ex d 71M 4P 0.4kW Output: 0.4 kW | Poles: 4 | Shaft: Ø14j6 | Flange: FF130 | Weight: 22 kg
Ex d 80M 2P 0.75kW Output: 0.75 kW | Poles: 2 | Shaft: Ø19j6 | Flange: FF165 | Weight: 25 kg
Ex d 80M 4P 0.75kW Output: 0.75 kW | Poles: 4 | Shaft: Ø19j6 | Flange: FF165 | Weight: 25 kg
Ex d 80M 6P 0.4kW Output: 0.4 kW | Poles: 6 | Shaft: Ø19j6 | Flange: FF165 | Weight: 25 kg
Ex d 90L 2P 1.5kW Output: 1.5 kW | Poles: 2 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 2P 2.2kW Output: 2.2 kW | Poles: 2 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 4P 1.5kW Output: 1.5 kW | Poles: 4 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 6P 0.75kW Output: 0.75 kW | Poles: 6 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 8P 0.4kW Output: 0.4 kW | Poles: 8 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 100L 4P 2.2kW Output: 2.2 kW | Poles: 4 | Shaft: Ø28j6 | Flange: FF215 | Weight: 45 kg
Ex d 100L 6P 1.5kW Output: 1.5 kW | Poles: 6 | Shaft: Ø28j6 | Flange: FF215 | Weight: 45 kg
Ex d 100L 8P 0.75kW Output: 0.75 kW | Poles: 8 | Shaft: Ø28j6 | Flange: FF215 | Weight: 45 kg
Ex d 112M 2P 3.7kW Output: 3.7 kW | Poles: 2 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 4P 2.2kW Output: 2.2 kW | Poles: 4 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 4P 3.7kW Output: 3.7 kW | Poles: 4 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 6P 2.2kW Output: 2.2 kW | Poles: 6 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 8P 1.5kW Output: 1.5 kW | Poles: 8 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 132S 2P 5.5kW Output: 5.5 kW | Poles: 2 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 2P 7.5kW Output: 7.5 kW | Poles: 2 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 4P 5.5kW Output: 5.5 kW | Poles: 4 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 6P 3.7kW Output: 3.7 kW | Poles: 6 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 8P 2.2kW Output: 2.2 kW | Poles: 8 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132M 4P 7.5kW Output: 7.5 kW | Poles: 4 | Shaft: Ø38k6 | Flange: FF265 | Weight: 95 kg
Ex d 132M 6P 5.5kW Output: 5.5 kW | Poles: 6 | Shaft: Ø38k6 | Flange: FF265 | Weight: 95 kg
Ex d 132M 8P 3.7kW Output: 3.7 kW | Poles: 8 | Shaft: Ø38k6 | Flange: FF265 | Weight: 95 kg
Ex d 160M 2P 11kW Output: 11 kW | Poles: 2 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 2P 15kW Output: 15 kW | Poles: 2 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 4P 11kW Output: 11 kW | Poles: 4 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 6P 7.5kW Output: 7.5 kW | Poles: 6 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 8P 5.5kW Output: 5.5 kW | Poles: 8 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160L 2P 18.5kW Output: 18.5 kW | Poles: 2 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 160L 4P 15kW Output: 15 kW | Poles: 4 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 160L 6P 11kW Output: 11 kW | Poles: 6 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 160L 8P 7.5kW Output: 7.5 kW | Poles: 8 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 180M 2P 22kW Output: 22 kW | Poles: 2 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 4P 18.5kW Output: 18.5 kW | Poles: 4 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 4P 22kW Output: 22 kW | Poles: 4 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 6P 15kW Output: 15 kW | Poles: 6 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 8P 11kW Output: 11 kW | Poles: 8 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180L 2P 30kW Output: 30 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 4P 30kW Output: 30 kW | Poles: 4 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 6P 18.5kW Output: 18.5 kW | Poles: 6 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 6P 22kW Output: 22 kW | Poles: 6 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 8P 15kW Output: 15 kW | Poles: 8 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 200L 2P 30kW Output: 30 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 2P 37kW Output: 37 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 4P 30kW Output: 30 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 4P 37kW Output: 37 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 6P 30kW Output: 30 kW | Poles: 6 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 8P 18.5kW Output: 18.5 kW | Poles: 8 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 8P 22kW Output: 22 kW | Poles: 8 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 225S 2P 45kW Output: 45 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 2P 55kW Output: 55 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 4P 45kW Output: 45 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 4P 55kW Output: 55 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 6P 37kW Output: 37 kW | Poles: 6 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 6P 45kW Output: 45 kW | Poles: 6 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 8P 30kW Output: 30 kW | Poles: 8 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 250S 2P 75kW Output: 75 kW | Poles: 2 | Shaft: Ø60m6 | Flange: FF500 | Weight: 450 kg
Ex d 250S 4P 75kW Output: 75 kW | Poles: 4 | Shaft: Ø75m6 | Flange: FF500 | Weight: 450 kg
Ex d 250S 6P 55kW Output: 55 kW | Poles: 6 | Shaft: Ø75m6 | Flange: FF500 | Weight: 450 kg
Ex d 250S 8P 37kW Output: 37 kW | Poles: 8 | Shaft: Ø75m6 | Flange: FF500 | Weight: 450 kg
Ex d 250M 2P 90kW Output: 90 kW | Poles: 2 | Shaft: Ø60m6 | Flange: FF500 | Weight: 495 kg
Ex d 250M 4P 90kW Output: 90 kW | Poles: 4 | Shaft: Ø75m6 | Flange: FF500 | Weight: 495 kg
Ex d 250M 6P 75kW Output: 75 kW | Poles: 6 | Shaft: Ø75m6 | Flange: FF500 | Weight: 495 kg
Ex d 250M 8P 45kW Output: 45 kW | Poles: 8 | Shaft: Ø75m6 | Flange: FF500 | Weight: 495 kg
Ex d 280M 2P 110kW Output: 110 kW | Poles: 2 | Shaft: Ø55m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 2P 132kW Output: 132 kW | Poles: 2 | Shaft: Ø55m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 4P 110kW Output: 110 kW | Poles: 4 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 4P 132kW Output: 132 kW | Poles: 4 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 6P 90kW Output: 90 kW | Poles: 6 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 6P 110kW Output: 110 kW | Poles: 6 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 8P 75kW Output: 75 kW | Poles: 8 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 315M 4P 150kW Output: 150 kW | Poles: 4 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 315M 4P 160kW Output: 160 kW | Poles: 4 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 315M 6P 132kW Output: 132 kW | Poles: 6 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 315M 8P 90kW Output: 90 kW | Poles: 8 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 355L 4P 260kW Output: 260 kW | Poles: 4 | Shaft: Ø100m6 | Flange: - | Weight: 2100 kg
Ex d 355L 6P 200kW Output: 200 kW | Poles: 6 | Shaft: Ø100m6 | Flange: - | Weight: 2100 kg
Explosion-Proof MotorsHIGEN RNM
81 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM Ex d / Ex tb Flameproof Explosion-Proof Motors (71M-355L)

Brand HIGEN RNM·Explosion-Proof Motors

Available part numbers (81)

Ex d 71M 2P 0.4kW, Ex d 71M 4P 0.2kW, Ex d 71M 4P 0.4kW, Ex d 80M 2P 0.75kW, Ex d 80M 4P 0.75kW, Ex d 80M 6P 0.4kW, Ex d 90L 2P 1.5kW, Ex d 90L 2P 2.2kW, Ex d 90L 4P 1.5kW, Ex d 90L 6P 0.75kW + 71 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
Ex d 71M 2P 0.4kWOutput: 0.4 kW | Poles: 2 | Shaft: Ø14j6 | Flange: FF130 | Weight: 22 kg
Ex d 71M 4P 0.2kWOutput: 0.2 kW | Poles: 4 | Shaft: Ø14j6 | Flange: FF130 | Weight: 22 kg
Ex d 71M 4P 0.4kWOutput: 0.4 kW | Poles: 4 | Shaft: Ø14j6 | Flange: FF130 | Weight: 22 kg
Ex d 80M 2P 0.75kWOutput: 0.75 kW | Poles: 2 | Shaft: Ø19j6 | Flange: FF165 | Weight: 25 kg
Ex d 80M 4P 0.75kWOutput: 0.75 kW | Poles: 4 | Shaft: Ø19j6 | Flange: FF165 | Weight: 25 kg
Ex d 80M 6P 0.4kWOutput: 0.4 kW | Poles: 6 | Shaft: Ø19j6 | Flange: FF165 | Weight: 25 kg
Ex d 90L 2P 1.5kWOutput: 1.5 kW | Poles: 2 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 2P 2.2kWOutput: 2.2 kW | Poles: 2 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 4P 1.5kWOutput: 1.5 kW | Poles: 4 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 6P 0.75kWOutput: 0.75 kW | Poles: 6 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 90L 8P 0.4kWOutput: 0.4 kW | Poles: 8 | Shaft: Ø24j6 | Flange: FF165 | Weight: 35 kg
Ex d 100L 4P 2.2kWOutput: 2.2 kW | Poles: 4 | Shaft: Ø28j6 | Flange: FF215 | Weight: 45 kg
Ex d 100L 6P 1.5kWOutput: 1.5 kW | Poles: 6 | Shaft: Ø28j6 | Flange: FF215 | Weight: 45 kg
Ex d 100L 8P 0.75kWOutput: 0.75 kW | Poles: 8 | Shaft: Ø28j6 | Flange: FF215 | Weight: 45 kg
Ex d 112M 2P 3.7kWOutput: 3.7 kW | Poles: 2 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 4P 2.2kWOutput: 2.2 kW | Poles: 4 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 4P 3.7kWOutput: 3.7 kW | Poles: 4 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 6P 2.2kWOutput: 2.2 kW | Poles: 6 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 112M 8P 1.5kWOutput: 1.5 kW | Poles: 8 | Shaft: Ø28j6 | Flange: FF215 | Weight: 65 kg
Ex d 132S 2P 5.5kWOutput: 5.5 kW | Poles: 2 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 2P 7.5kWOutput: 7.5 kW | Poles: 2 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 4P 5.5kWOutput: 5.5 kW | Poles: 4 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 6P 3.7kWOutput: 3.7 kW | Poles: 6 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132S 8P 2.2kWOutput: 2.2 kW | Poles: 8 | Shaft: Ø38k6 | Flange: FF265 | Weight: 90 kg
Ex d 132M 4P 7.5kWOutput: 7.5 kW | Poles: 4 | Shaft: Ø38k6 | Flange: FF265 | Weight: 95 kg
Ex d 132M 6P 5.5kWOutput: 5.5 kW | Poles: 6 | Shaft: Ø38k6 | Flange: FF265 | Weight: 95 kg
Ex d 132M 8P 3.7kWOutput: 3.7 kW | Poles: 8 | Shaft: Ø38k6 | Flange: FF265 | Weight: 95 kg
Ex d 160M 2P 11kWOutput: 11 kW | Poles: 2 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 2P 15kWOutput: 15 kW | Poles: 2 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 4P 11kWOutput: 11 kW | Poles: 4 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 6P 7.5kWOutput: 7.5 kW | Poles: 6 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160M 8P 5.5kWOutput: 5.5 kW | Poles: 8 | Shaft: Ø42k6 | Flange: FF300 | Weight: 135 kg
Ex d 160L 2P 18.5kWOutput: 18.5 kW | Poles: 2 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 160L 4P 15kWOutput: 15 kW | Poles: 4 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 160L 6P 11kWOutput: 11 kW | Poles: 6 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 160L 8P 7.5kWOutput: 7.5 kW | Poles: 8 | Shaft: Ø42k6 | Flange: FF300 | Weight: 155 kg
Ex d 180M 2P 22kWOutput: 22 kW | Poles: 2 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 4P 18.5kWOutput: 18.5 kW | Poles: 4 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 4P 22kWOutput: 22 kW | Poles: 4 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 6P 15kWOutput: 15 kW | Poles: 6 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180M 8P 11kWOutput: 11 kW | Poles: 8 | Shaft: Ø48k6 | Flange: FF300 | Weight: 200 kg
Ex d 180L 2P 30kWOutput: 30 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 4P 30kWOutput: 30 kW | Poles: 4 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 6P 18.5kWOutput: 18.5 kW | Poles: 6 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 6P 22kWOutput: 22 kW | Poles: 6 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 180L 8P 15kWOutput: 15 kW | Poles: 8 | Shaft: Ø55m6 | Flange: FF300 | Weight: 240 kg
Ex d 200L 2P 30kWOutput: 30 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 2P 37kWOutput: 37 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 4P 30kWOutput: 30 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 4P 37kWOutput: 37 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 6P 30kWOutput: 30 kW | Poles: 6 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 8P 18.5kWOutput: 18.5 kW | Poles: 8 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 200L 8P 22kWOutput: 22 kW | Poles: 8 | Shaft: Ø60m6 | Flange: FF400 | Weight: 310 kg
Ex d 225S 2P 45kWOutput: 45 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 2P 55kWOutput: 55 kW | Poles: 2 | Shaft: Ø55m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 4P 45kWOutput: 45 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 4P 55kWOutput: 55 kW | Poles: 4 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 6P 37kWOutput: 37 kW | Poles: 6 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 6P 45kWOutput: 45 kW | Poles: 6 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 225S 8P 30kWOutput: 30 kW | Poles: 8 | Shaft: Ø60m6 | Flange: FF400 | Weight: 390 kg
Ex d 250S 2P 75kWOutput: 75 kW | Poles: 2 | Shaft: Ø60m6 | Flange: FF500 | Weight: 450 kg
Ex d 250S 4P 75kWOutput: 75 kW | Poles: 4 | Shaft: Ø75m6 | Flange: FF500 | Weight: 450 kg
Ex d 250S 6P 55kWOutput: 55 kW | Poles: 6 | Shaft: Ø75m6 | Flange: FF500 | Weight: 450 kg
Ex d 250S 8P 37kWOutput: 37 kW | Poles: 8 | Shaft: Ø75m6 | Flange: FF500 | Weight: 450 kg
Ex d 250M 2P 90kWOutput: 90 kW | Poles: 2 | Shaft: Ø60m6 | Flange: FF500 | Weight: 495 kg
Ex d 250M 4P 90kWOutput: 90 kW | Poles: 4 | Shaft: Ø75m6 | Flange: FF500 | Weight: 495 kg
Ex d 250M 6P 75kWOutput: 75 kW | Poles: 6 | Shaft: Ø75m6 | Flange: FF500 | Weight: 495 kg
Ex d 250M 8P 45kWOutput: 45 kW | Poles: 8 | Shaft: Ø75m6 | Flange: FF500 | Weight: 495 kg
Ex d 280M 2P 110kWOutput: 110 kW | Poles: 2 | Shaft: Ø55m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 2P 132kWOutput: 132 kW | Poles: 2 | Shaft: Ø55m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 4P 110kWOutput: 110 kW | Poles: 4 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 4P 132kWOutput: 132 kW | Poles: 4 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 6P 90kWOutput: 90 kW | Poles: 6 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 6P 110kWOutput: 110 kW | Poles: 6 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 280M 8P 75kWOutput: 75 kW | Poles: 8 | Shaft: Ø85m6 | Flange: - | Weight: 1100-1150 kg
Ex d 315M 4P 150kWOutput: 150 kW | Poles: 4 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 315M 4P 160kWOutput: 160 kW | Poles: 4 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 315M 6P 132kWOutput: 132 kW | Poles: 6 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 315M 8P 90kWOutput: 90 kW | Poles: 8 | Shaft: Ø95m6 | Flange: - | Weight: 1300 kg
Ex d 355L 4P 260kWOutput: 260 kW | Poles: 4 | Shaft: Ø100m6 | Flange: - | Weight: 2100 kg
Ex d 355L 6P 200kWOutput: 200 kW | Poles: 6 | Shaft: Ø100m6 | Flange: - | Weight: 2100 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
