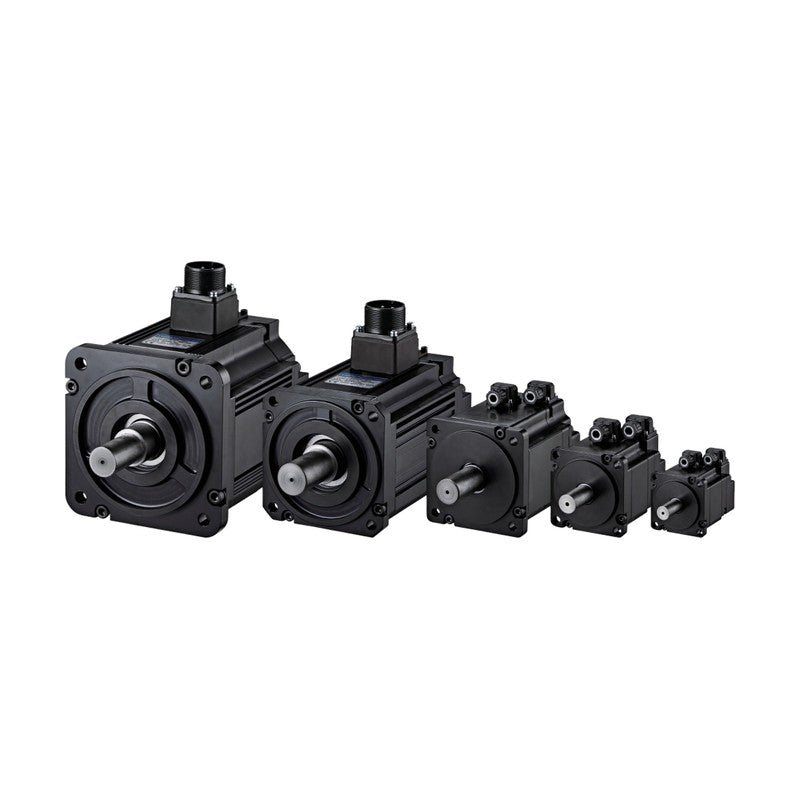

• HIGEN RNM FMA CJ/CN AC Servo Motors (High-Speed, Low Torque, 200V)
1 1

HIGEN RNM FMA CJ/CN AC Servo Motors (High-Speed, Low Torque, 200V)

HIGEN RNM FMA CJ/CN AC Servo Motors (High-Speed, Low Torque, 200V)

HIGEN RNM FMA CJ/CN series high-speed, low-torque AC servo motors for 200V systems, offered with incremental or 17/33-bit serial encoders and optional holding brake.

Key features

  • High-speed, low-torque CJ/CN series of the FMA 200V AC servo motor line
  • Encoder choice: 2,000 ppr incremental (A) or 17/33-bit serial 131,072 ppr (P)
  • Flange sizes 40, 60, 80, 130, 180 mm square
  • Rated output 50 W to 5000 W
  • Optional holding brake (DC24V / DC90V by frame), shaft key and oil seal
  • Matched to HIGEN RNM FDA7000 / EDA7000 servo drives

Specifications

Series FMA CJ/CN (high-speed, low-torque)
Voltage class 200V
Matching drive FDA7000 / EDA7000
Encoder options A = incremental 2,000 ppr; P = serial 17/33-bit 131,072 ppr
Brake options 0 none; 1 DC24V (fl. 40-80) / DC90V (fl. 130-220); 2 DC24V (fl. 130-220); none for 250/280
Shaft / oil seal (in codes) B = straight with key; oil seal 0 (1 = option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 54, 55-57, 68-77
FMACJZ5-AB00 Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACJZ5-AB10 Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACJZ5-PB00 Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACJZ5-PB10 Output: 50 W | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACJ01-AB00 Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACJ01-AB10 Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACJ01-PB00 Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACJ01-PB10 Output: 100 W | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACJ02-AB00 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACJ02-AB10 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACJ02-PB00 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACJ02-PB10 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACJ04-AB00 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACJ04-AB10 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACJ04-PB00 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACJ04-PB10 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN01-AB00 Output: 100 W | Flange: 60 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN01-AB10 Output: 100 W | Flange: 60 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN01-PB00 Output: 100 W | Flange: 60 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN01-PB10 Output: 100 W | Flange: 60 mm sq. | Rated torque: 0.32 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN02-AB00 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN02-AB10 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN02-PB00 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN02-PB10 Output: 200 W | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN03-AB00 Output: 300 W | Flange: 60 mm sq. | Rated torque: 0.96 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN03-AB10 Output: 300 W | Flange: 60 mm sq. | Rated torque: 0.96 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN03-PB00 Output: 300 W | Flange: 60 mm sq. | Rated torque: 0.96 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN03-PB10 Output: 300 W | Flange: 60 mm sq. | Rated torque: 0.96 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN04-AB00 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN04-AB10 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN04-PB00 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN04-PB10 Output: 400 W | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN05-AB00 Output: 500 W | Flange: 60 mm sq. | Rated torque: 1.59 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN05-AB10 Output: 500 W | Flange: 60 mm sq. | Rated torque: 1.59 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN05-PB00 Output: 500 W | Flange: 60 mm sq. | Rated torque: 1.59 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN05-PB10 Output: 500 W | Flange: 60 mm sq. | Rated torque: 1.59 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN04A-AB00 Output: 400 W | Flange: 80 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN04A-AB10 Output: 400 W | Flange: 80 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN04A-PB00 Output: 400 W | Flange: 80 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN04A-PB10 Output: 400 W | Flange: 80 mm sq. | Rated torque: 1.27 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN06-AB00 Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN06-AB10 Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN06-PB00 Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN06-PB10 Output: 600 W | Flange: 80 mm sq. | Rated torque: 1.91 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN08-AB00 Output: 800 W | Flange: 80 mm sq. | Rated torque: 2.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN08-AB10 Output: 800 W | Flange: 80 mm sq. | Rated torque: 2.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN08-PB00 Output: 800 W | Flange: 80 mm sq. | Rated torque: 2.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN08-PB10 Output: 800 W | Flange: 80 mm sq. | Rated torque: 2.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN10-AB00 Output: 1000 W | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN10-AB10 Output: 1000 W | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN10-PB00 Output: 1000 W | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN10-PB10 Output: 1000 W | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN09-AB00 Output: 900 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN09-AB10 Output: 900 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMACN09-AB20 Output: 900 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN09-PB00 Output: 900 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN09-PB10 Output: 900 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMACN09-PB20 Output: 900 W | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN15-AB00 Output: 1500 W | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN15-AB10 Output: 1500 W | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMACN15-AB20 Output: 1500 W | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN15-PB00 Output: 1500 W | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN15-PB10 Output: 1500 W | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMACN15-PB20 Output: 1500 W | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN22-AB00 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN22-AB10 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMACN22-AB20 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN22-PB00 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN22-PB10 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMACN22-PB20 Output: 2200 W | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN30-AB00 Output: 3000 W | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN30-AB10 Output: 3000 W | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMACN30-AB20 Output: 3000 W | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN30-PB00 Output: 3000 W | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN30-PB10 Output: 3000 W | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMACN30-PB20 Output: 3000 W | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN30A-AB00 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN30A-AB10 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMACN30A-AB20 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN30A-PB00 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN30A-PB10 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMACN30A-PB20 Output: 3000 W | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMACN50A-AB00 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMACN50A-AB10 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMACN50A-AB20 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMACN50A-PB00 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMACN50A-PB10 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMACN50A-PB20 Output: 5000 W | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
Servo MotorsHIGEN RNM
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM FMA CJ/CN AC Servo Motors (High-Speed, Low Torque, 200V)

Brand HIGEN RNM·Servo Motors

Available part numbers (88)

FMACJZ5-AB00, FMACJZ5-AB10, FMACJZ5-PB00, FMACJZ5-PB10, FMACJ01-AB00, FMACJ01-AB10, FMACJ01-PB00, FMACJ01-PB10, FMACJ02-AB00, FMACJ02-AB10 + 78 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
