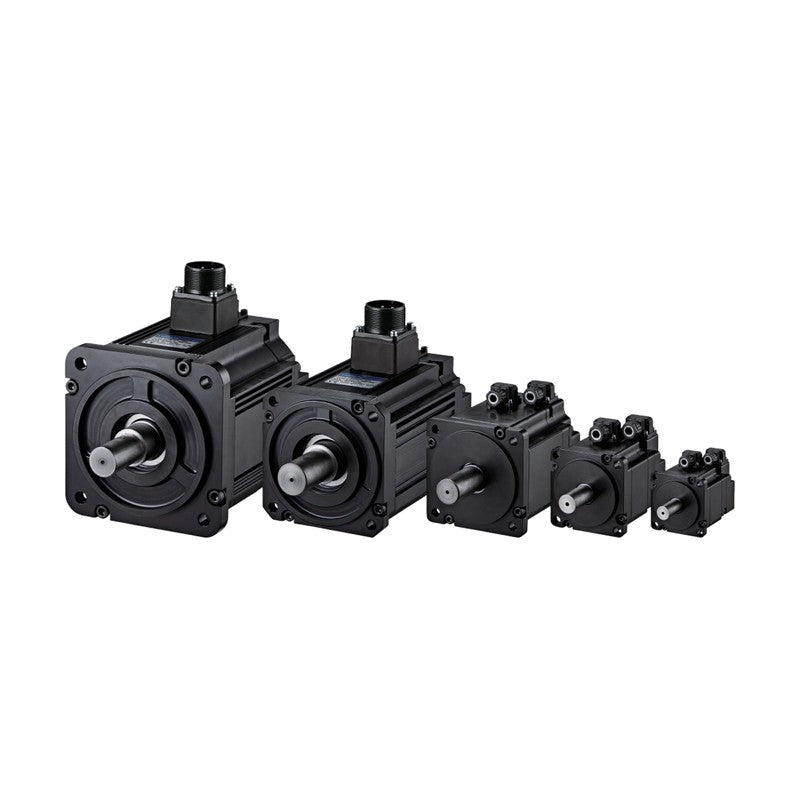

HIGEN RNM FMA TN/TF AC Servo Motors (Mid-Speed, High Torque, 200V)

HIGEN RNM FMA TN/TF AC Servo Motors (Mid-Speed, High Torque, 200V)

HIGEN RNM FMA TN/TF series mid-speed, high-torque AC servo motors for 200V systems, offered with incremental or 17/33-bit serial encoders and optional holding brake.

Key features

  • Mid-speed, high-torque TN/TF series of the FMA 200V AC servo motor line
  • Encoder choice: 2,000 ppr incremental (A) or 17/33-bit serial 131,072 ppr (P)
  • Flange sizes 130, 180, 220 mm square
  • Rated output 450 W to 15000 W
  • Optional holding brake (DC24V / DC90V by frame), shaft key and oil seal
  • Matched to HIGEN RNM FDA7000 / EDA7000 servo drives

Specifications

Series FMA TN/TF (mid-speed, high-torque)
Voltage class 200V
Matching drive FDA7000 / EDA7000
Encoder options A = incremental 2,000 ppr; P = serial 17/33-bit 131,072 ppr
Brake options 0 none; 1 DC24V (fl. 40-80) / DC90V (fl. 130-220); 2 DC24V (fl. 130-220); none for 250/280
Shaft / oil seal (in codes) B = straight with key; oil seal 0 (1 = option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 54, 59-62, 68-77
FMATN05-AB00 Output: 450 W | Flange: 130 mm sq. | Rated torque: 2.87 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN05-AB10 Output: 450 W | Flange: 130 mm sq. | Rated torque: 2.87 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN05-AB20 Output: 450 W | Flange: 130 mm sq. | Rated torque: 2.87 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN05-PB00 Output: 450 W | Flange: 130 mm sq. | Rated torque: 2.87 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN05-PB10 Output: 450 W | Flange: 130 mm sq. | Rated torque: 2.87 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN05-PB20 Output: 450 W | Flange: 130 mm sq. | Rated torque: 2.87 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN09-AB00 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN09-AB10 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN09-AB20 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN09-PB00 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN09-PB10 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN09-PB20 Output: 850 W | Flange: 130 mm sq. | Rated torque: 5.41 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN13-AB00 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.27 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN13-AB10 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.27 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN13-AB20 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.27 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN13-PB00 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.27 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN13-PB10 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.27 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN13-PB20 Output: 1300 W | Flange: 130 mm sq. | Rated torque: 8.27 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN17-AB00 Output: 1700 W | Flange: 130 mm sq. | Rated torque: 10.8 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN17-AB10 Output: 1700 W | Flange: 130 mm sq. | Rated torque: 10.8 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN17-AB20 Output: 1700 W | Flange: 130 mm sq. | Rated torque: 10.8 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN17-PB00 Output: 1700 W | Flange: 130 mm sq. | Rated torque: 10.8 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN17-PB10 Output: 1700 W | Flange: 130 mm sq. | Rated torque: 10.8 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN17-PB20 Output: 1700 W | Flange: 130 mm sq. | Rated torque: 10.8 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN20-AB00 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN20-AB10 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN20-AB20 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN20-PB00 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN20-PB10 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN20-PB20 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN30-AB00 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN30-AB10 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN30-AB20 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN30-PB00 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN30-PB10 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN30-PB20 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN44-AB00 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN44-AB10 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN44-AB20 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN44-PB00 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN44-PB10 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN44-PB20 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN55-AB00 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 35 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN55-AB10 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 35 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN55-AB20 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 35 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN55-PB00 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 35 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN55-PB10 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 35 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN55-PB20 Output: 5500 W | Flange: 180 mm sq. | Rated torque: 35 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN75N-AB00 Output: 7500 W | Flange: 180 mm sq. | Rated torque: 47.7 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN75N-AB10 Output: 7500 W | Flange: 180 mm sq. | Rated torque: 47.7 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN75N-AB20 Output: 7500 W | Flange: 180 mm sq. | Rated torque: 47.7 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN75N-PB00 Output: 7500 W | Flange: 180 mm sq. | Rated torque: 47.7 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN75N-PB10 Output: 7500 W | Flange: 180 mm sq. | Rated torque: 47.7 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN75N-PB20 Output: 7500 W | Flange: 180 mm sq. | Rated torque: 47.7 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN110-AB00 Output: 11000 W | Flange: 220 mm sq. | Rated torque: 70 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN110-AB10 Output: 11000 W | Flange: 220 mm sq. | Rated torque: 70 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN110-AB20 Output: 11000 W | Flange: 220 mm sq. | Rated torque: 70 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN110-PB00 Output: 11000 W | Flange: 220 mm sq. | Rated torque: 70 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN110-PB10 Output: 11000 W | Flange: 220 mm sq. | Rated torque: 70 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN110-PB20 Output: 11000 W | Flange: 220 mm sq. | Rated torque: 70 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATN150-AB00 Output: 15000 W | Flange: 220 mm sq. | Rated torque: 95.4 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATN150-AB10 Output: 15000 W | Flange: 220 mm sq. | Rated torque: 95.4 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATN150-AB20 Output: 15000 W | Flange: 220 mm sq. | Rated torque: 95.4 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATN150-PB00 Output: 15000 W | Flange: 220 mm sq. | Rated torque: 95.4 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATN150-PB10 Output: 15000 W | Flange: 220 mm sq. | Rated torque: 95.4 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATN150-PB20 Output: 15000 W | Flange: 220 mm sq. | Rated torque: 95.4 N·m | Speed (rated/max): 1500/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATF20-AB00 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATF20-AB10 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATF20-AB20 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATF20-PB00 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATF20-PB10 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATF20-PB20 Output: 1800 W | Flange: 180 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATF30-AB00 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATF30-AB10 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATF30-AB20 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATF30-PB00 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATF30-PB10 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATF30-PB20 Output: 2900 W | Flange: 180 mm sq. | Rated torque: 18.6 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
FMATF44-AB00 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
FMATF44-AB10 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
FMATF44-AB20 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
FMATF44-PB00 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
FMATF44-PB10 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
FMATF44-PB20 Output: 4400 W | Flange: 180 mm sq. | Rated torque: 27.9 N·m | Speed (rated/max): 1500/3000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
