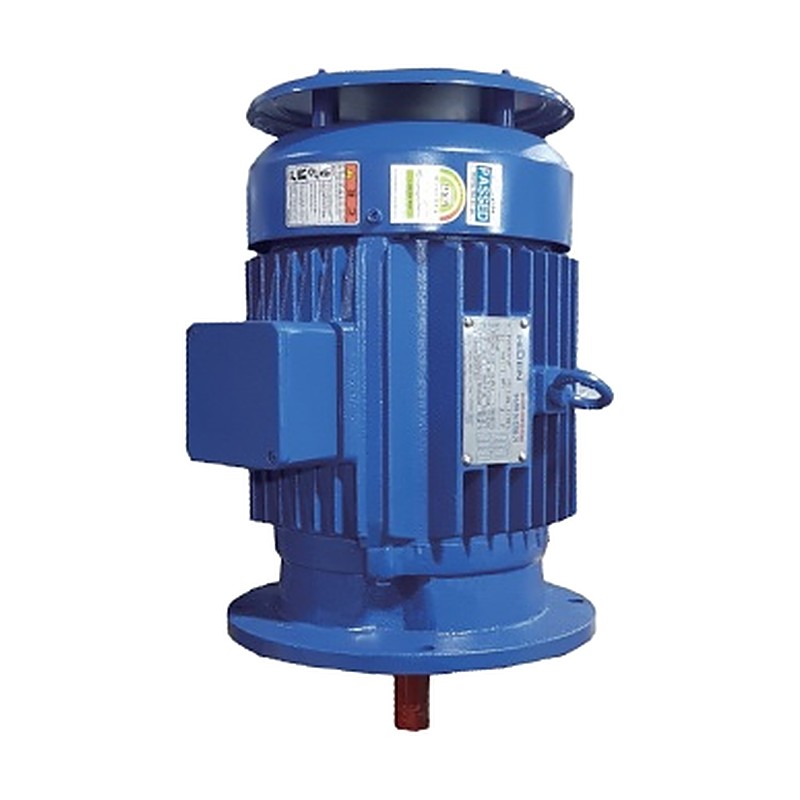

HIGEN RNM FWP Flange Water-Protection Cooling Tower Motors

HIGEN RNM FWP Flange Water-Protection Cooling Tower Motors

HIGEN RNM flange water-protection (FWP) totally enclosed outdoor motors for cooling towers and equipment permanently installed outdoors, 0.75 to 30 kW.

Key features

  • Perfectly sealed totally enclosed structure withstands rain, wind and dust
  • Anti-rust and anti-corrosion painting
  • Vertical flange mounting with threaded shaft end for fan hub
  • Same rating as the standard low-voltage three-phase motor; premium efficiency

Specifications

Type Flange water protection (FWP)
Enclosure Totally enclosed, outdoor
Mounting Vertical flange
Poles 4 / 6 / 8
Output range 0.75-30 kW
Frame range 112S-180L
Source HIGEN RNM Low Voltage Motor catalog, p. 31
FWP 112S 4P 2.2kW Output: 2.2 kW | Poles: 4 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112S 6P 1.5kW Output: 1.5 kW | Poles: 6 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112S 8P 0.75kW Output: 0.75 kW | Poles: 8 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112M 4P 3.7kW Output: 3.7 kW | Poles: 4 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112M 6P 2.2kW Output: 2.2 kW | Poles: 6 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112M 8P 1.5kW Output: 1.5 kW | Poles: 8 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 132S 4P 5.5kW Output: 5.5 kW | Poles: 4 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132S 6P 3.7kW Output: 3.7 kW | Poles: 6 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132S 8P 2.2kW Output: 2.2 kW | Poles: 8 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132M 4P 7.5kW Output: 7.5 kW | Poles: 4 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132M 6P 5.5kW Output: 5.5 kW | Poles: 6 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132M 8P 3.7kW Output: 3.7 kW | Poles: 8 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 160M 4P 11kW Output: 11 kW | Poles: 4 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160M 6P 7.5kW Output: 7.5 kW | Poles: 6 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160M 8P 5.5kW Output: 5.5 kW | Poles: 8 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160L 4P 15kW Output: 15 kW | Poles: 4 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160L 6P 11kW Output: 11 kW | Poles: 6 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160L 8P 7.5kW Output: 7.5 kW | Poles: 8 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180M 4P 22kW Output: 22 kW | Poles: 4 | Shaft: Ø48h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180M 6P 15kW Output: 15 kW | Poles: 6 | Shaft: Ø48h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180M 8P 11kW Output: 11 kW | Poles: 8 | Shaft: Ø48h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180L 4P 30kW Output: 30 kW | Poles: 4 | Shaft: Ø48h6 | Insulation: Class F | Shaft thread: M30 x P3.5
FWP 180L 6P 18.5kW Output: 18.5 kW | Poles: 6 | Shaft: Ø48h6 | Insulation: Class F | Shaft thread: M30 x P3.5
FWP 180L 8P 15kW Output: 15 kW | Poles: 8 | Shaft: Ø48h6 | Insulation: Class F | Shaft thread: M30 x P3.5
AC MotorsHIGEN RNM
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM FWP Flange Water-Protection Cooling Tower Motors

Brand HIGEN RNM·AC Motors

Available part numbers (24)

FWP 112S 4P 2.2kW, FWP 112S 6P 1.5kW, FWP 112S 8P 0.75kW, FWP 112M 4P 3.7kW, FWP 112M 6P 2.2kW, FWP 112M 8P 1.5kW, FWP 132S 4P 5.5kW, FWP 132S 6P 3.7kW, FWP 132S 8P 2.2kW, FWP 132M 4P 7.5kW + 14 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FWP 112S 4P 2.2kWOutput: 2.2 kW | Poles: 4 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112S 6P 1.5kWOutput: 1.5 kW | Poles: 6 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112S 8P 0.75kWOutput: 0.75 kW | Poles: 8 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112M 4P 3.7kWOutput: 3.7 kW | Poles: 4 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112M 6P 2.2kWOutput: 2.2 kW | Poles: 6 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 112M 8P 1.5kWOutput: 1.5 kW | Poles: 8 | Shaft: Ø28h6 | Insulation: Class B | Shaft thread: M16 x P1.5
FWP 132S 4P 5.5kWOutput: 5.5 kW | Poles: 4 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132S 6P 3.7kWOutput: 3.7 kW | Poles: 6 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132S 8P 2.2kWOutput: 2.2 kW | Poles: 8 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132M 4P 7.5kWOutput: 7.5 kW | Poles: 4 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132M 6P 5.5kWOutput: 5.5 kW | Poles: 6 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 132M 8P 3.7kWOutput: 3.7 kW | Poles: 8 | Shaft: Ø38h6 | Insulation: Class B | Shaft thread: M25 x P2
FWP 160M 4P 11kWOutput: 11 kW | Poles: 4 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160M 6P 7.5kWOutput: 7.5 kW | Poles: 6 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160M 8P 5.5kWOutput: 5.5 kW | Poles: 8 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160L 4P 15kWOutput: 15 kW | Poles: 4 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160L 6P 11kWOutput: 11 kW | Poles: 6 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 160L 8P 7.5kWOutput: 7.5 kW | Poles: 8 | Shaft: Ø42h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180M 4P 22kWOutput: 22 kW | Poles: 4 | Shaft: Ø48h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180M 6P 15kWOutput: 15 kW | Poles: 6 | Shaft: Ø48h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180M 8P 11kWOutput: 11 kW | Poles: 8 | Shaft: Ø48h6 | Insulation: Class B | Shaft thread: M30 x P3.5
FWP 180L 4P 30kWOutput: 30 kW | Poles: 4 | Shaft: Ø48h6 | Insulation: Class F | Shaft thread: M30 x P3.5
FWP 180L 6P 18.5kWOutput: 18.5 kW | Poles: 6 | Shaft: Ø48h6 | Insulation: Class F | Shaft thread: M30 x P3.5
FWP 180L 8P 15kWOutput: 15 kW | Poles: 8 | Shaft: Ø48h6 | Insulation: Class F | Shaft thread: M30 x P3.5
