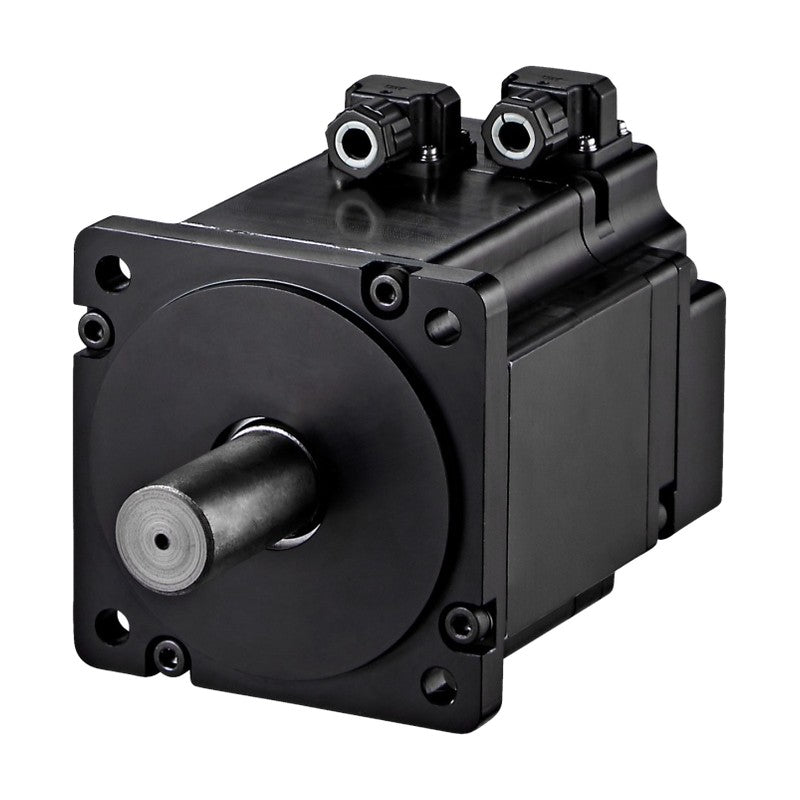

HIGEN RNM HMA CN Series AC Servo Motors (High-Speed, Low Torque, 400V)

HIGEN RNM HMA CN Series AC Servo Motors (High-Speed, Low Torque, 400V)

HIGEN RNM HMA CN series high-speed, low-torque AC servo motors for 400V systems, offered with incremental or 17/33-bit serial encoders and optional holding brake.

Key features

  • High-speed, low-torque CN series of the HMA 400V AC servo motor line
  • Encoder choice: 2,000 ppr incremental (A) or 17/33-bit serial 131,072 ppr (P)
  • Flange sizes 80, 130, 180 mm square
  • Rated output 0.9 kW to 5 kW
  • Optional holding brake (DC24V / DC90V by frame), shaft key and oil seal
  • Matched to HIGEN RNM FDA7000-H / EDA7000-H servo drives

Specifications

Series HMA CN (high-speed, low-torque)
Voltage class 400V
Matching drive FDA7000-H / EDA7000-H
Encoder options A = incremental 2,000 ppr; P = serial 17/33-bit 131,072 ppr
Brake options 0 none; 1 DC24V (fl. 40-80) / DC90V (fl. 130-220); 2 DC24V (fl. 130-220); none for 250/280
Shaft / oil seal (in codes) B = straight with key; oil seal 0 (1 = option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 54, 64, 68-77
HMACN10-AB00 Output: 1.0 kW | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN10-AB10 Output: 1.0 kW | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN10-PB00 Output: 1.0 kW | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN10-PB10 Output: 1.0 kW | Flange: 80 mm sq. | Rated torque: 3.18 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN09-AB00 Output: 0.9 kW | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN09-AB10 Output: 0.9 kW | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN09-AB20 Output: 0.9 kW | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN09-PB00 Output: 0.9 kW | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN09-PB10 Output: 0.9 kW | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN09-PB20 Output: 0.9 kW | Flange: 130 mm sq. | Rated torque: 2.86 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN15-AB00 Output: 1.5 kW | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN15-AB10 Output: 1.5 kW | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN15-AB20 Output: 1.5 kW | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN15-PB00 Output: 1.5 kW | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN15-PB10 Output: 1.5 kW | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN15-PB20 Output: 1.5 kW | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN22-AB00 Output: 2.2 kW | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN22-AB10 Output: 2.2 kW | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN22-AB20 Output: 2.2 kW | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN22-PB00 Output: 2.2 kW | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN22-PB10 Output: 2.2 kW | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN22-PB20 Output: 2.2 kW | Flange: 130 mm sq. | Rated torque: 7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN30-AB00 Output: 3 kW | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN30-AB10 Output: 3 kW | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN30-AB20 Output: 3 kW | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN30-PB00 Output: 3 kW | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN30-PB10 Output: 3 kW | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN30-PB20 Output: 3 kW | Flange: 130 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN40-AB00 Output: 4 kW | Flange: 130 mm sq. | Rated torque: 12.7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN40-AB10 Output: 4 kW | Flange: 130 mm sq. | Rated torque: 12.7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN40-AB20 Output: 4 kW | Flange: 130 mm sq. | Rated torque: 12.7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN40-PB00 Output: 4 kW | Flange: 130 mm sq. | Rated torque: 12.7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN40-PB10 Output: 4 kW | Flange: 130 mm sq. | Rated torque: 12.7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN40-PB20 Output: 4 kW | Flange: 130 mm sq. | Rated torque: 12.7 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN50-AB00 Output: 5 kW | Flange: 130 mm sq. | Rated torque: 15.8 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN50-AB10 Output: 5 kW | Flange: 130 mm sq. | Rated torque: 15.8 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN50-AB20 Output: 5 kW | Flange: 130 mm sq. | Rated torque: 15.8 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN50-PB00 Output: 5 kW | Flange: 130 mm sq. | Rated torque: 15.8 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN50-PB10 Output: 5 kW | Flange: 130 mm sq. | Rated torque: 15.8 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN50-PB20 Output: 5 kW | Flange: 130 mm sq. | Rated torque: 15.8 N·m | Speed (rated/max): 3000/5000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN30A-AB00 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN30A-AB10 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN30A-AB20 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN30A-PB00 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN30A-PB10 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN30A-PB20 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 9.54 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMACN50A-AB00 Output: 5 kW | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMACN50A-AB10 Output: 5 kW | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMACN50A-AB20 Output: 5 kW | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMACN50A-PB00 Output: 5 kW | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMACN50A-PB10 Output: 5 kW | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMACN50A-PB20 Output: 5 kW | Flange: 180 mm sq. | Rated torque: 15.9 N·m | Speed (rated/max): 3000/4500 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
Servo MotorsHIGEN RNM
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM HMA CN Series AC Servo Motors (High-Speed, Low Torque, 400V)

Brand HIGEN RNM·Servo Motors

Available part numbers (52)

HMACN10-AB00, HMACN10-AB10, HMACN10-PB00, HMACN10-PB10, HMACN09-AB00, HMACN09-AB10, HMACN09-AB20, HMACN09-PB00, HMACN09-PB10, HMACN09-PB20 + 42 more — see full table ↓
