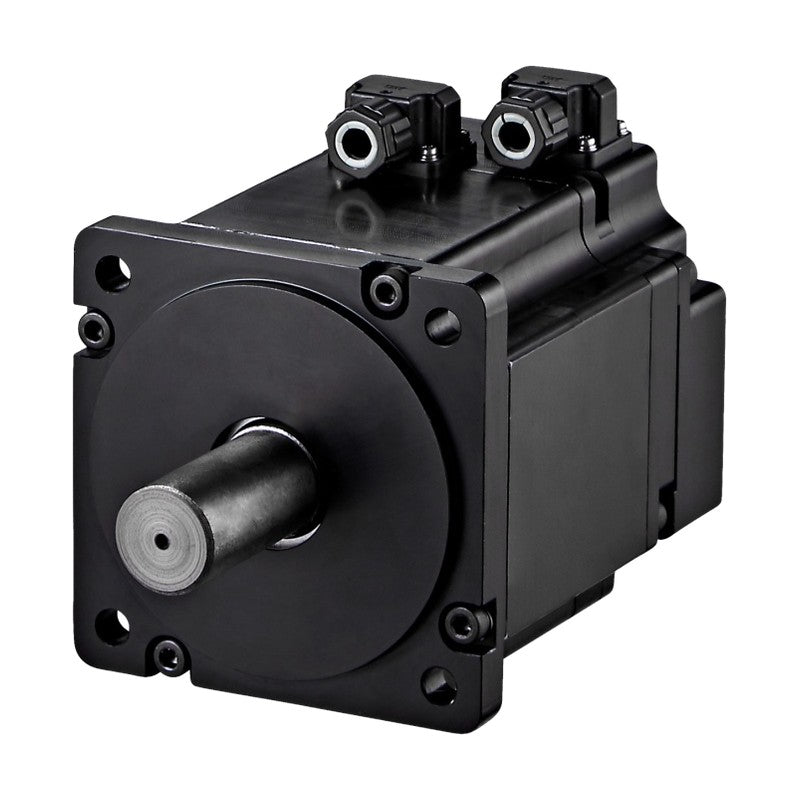

HIGEN RNM HMA LN Series AC Servo Motors (Low-Speed, High Torque, 400V)

HIGEN RNM HMA LN Series AC Servo Motors (Low-Speed, High Torque, 400V)

HIGEN RNM HMA LN series low-speed, high-torque AC servo motors for 400V systems, offered with incremental or 17/33-bit serial encoders and optional holding brake.

Key features

  • Low-speed, high-torque LN series of the HMA 400V AC servo motor line
  • Encoder choice: 2,000 ppr incremental (A) or 17/33-bit serial 131,072 ppr (P)
  • Flange sizes 130, 180, 280 mm square
  • Rated output 1.2 kW to 45 kW
  • Optional holding brake (DC24V / DC90V by frame), shaft key and oil seal
  • Matched to HIGEN RNM FDA7000-H / EDA7000-H servo drives

Specifications

Series HMA LN (low-speed, high-torque)
Voltage class 400V
Matching drive FDA7000-H / EDA7000-H
Encoder options A = incremental 2,000 ppr; P = serial 17/33-bit 131,072 ppr
Brake options 0 none; 1 DC24V (fl. 40-80) / DC90V (fl. 130-220); 2 DC24V (fl. 130-220); none for 250/280
Shaft / oil seal (in codes) B = straight with key; oil seal 0 (1 = option)
Source HIGEN RNM Servo System Catalog (KR) 2024, p. 54, 66-67, 68-77
HMALN12-AB00 Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN12-AB10 Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN12-AB20 Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN12-PB00 Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN12-PB10 Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN12-PB20 Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN20-AB00 Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN20-AB10 Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN20-AB20 Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN20-PB00 Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN20-PB10 Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN20-PB20 Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN30-AB00 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN30-AB10 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN30-AB20 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN30-PB00 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN30-PB10 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN30-PB20 Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN44-AB00 Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN44-AB10 Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN44-AB20 Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN44-PB00 Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN44-PB10 Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN44-PB20 Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN55-AB00 Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN55-AB10 Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN55-AB20 Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN55-PB00 Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN55-PB10 Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN55-PB20 Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN300-AB00 Output: 30 kW | Flange: 280 mm sq. | Rated torque: 358 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN300-PB00 Output: 30 kW | Flange: 280 mm sq. | Rated torque: 358 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN370-AB00 Output: 37 kW | Flange: 280 mm sq. | Rated torque: 441 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN370-PB00 Output: 37 kW | Flange: 280 mm sq. | Rated torque: 441 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN450-AB00 Output: 45 kW | Flange: 280 mm sq. | Rated torque: 537 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN450-PB00 Output: 45 kW | Flange: 280 mm sq. | Rated torque: 537 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
Servo MotorsHIGEN RNM
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM HMA LN Series AC Servo Motors (Low-Speed, High Torque, 400V)

Brand HIGEN RNM·Servo Motors

Available part numbers (36)

HMALN12-AB00, HMALN12-AB10, HMALN12-AB20, HMALN12-PB00, HMALN12-PB10, HMALN12-PB20, HMALN20-AB00, HMALN20-AB10, HMALN20-AB20, HMALN20-PB00 + 26 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HMALN12-AB00Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN12-AB10Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN12-AB20Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN12-PB00Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN12-PB10Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN12-PB20Output: 1.2 kW | Flange: 130 mm sq. | Rated torque: 11.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN20-AB00Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN20-AB10Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN20-AB20Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN20-PB00Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN20-PB10Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN20-PB20Output: 2 kW | Flange: 180 mm sq. | Rated torque: 19.1 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN30-AB00Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN30-AB10Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN30-AB20Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN30-PB00Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN30-PB10Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN30-PB20Output: 3 kW | Flange: 180 mm sq. | Rated torque: 28.6 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN44-AB00Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN44-AB10Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN44-AB20Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN44-PB00Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN44-PB10Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN44-PB20Output: 4.4 kW | Flange: 180 mm sq. | Rated torque: 42.03 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN55-AB00Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN55-AB10Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC90V
HMALN55-AB20Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Incremental 2,000 ppr | Brake: DC24V
HMALN55-PB00Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN55-PB10Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC90V
HMALN55-PB20Output: 5.5 kW | Flange: 180 mm sq. | Rated torque: 52.5 N·m | Speed (rated/max): 1000/2000 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: DC24V
HMALN300-AB00Output: 30 kW | Flange: 280 mm sq. | Rated torque: 358 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN300-PB00Output: 30 kW | Flange: 280 mm sq. | Rated torque: 358 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN370-AB00Output: 37 kW | Flange: 280 mm sq. | Rated torque: 441 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN370-PB00Output: 37 kW | Flange: 280 mm sq. | Rated torque: 441 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
HMALN450-AB00Output: 45 kW | Flange: 280 mm sq. | Rated torque: 537 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Incremental 2,000 ppr | Brake: None
HMALN450-PB00Output: 45 kW | Flange: 280 mm sq. | Rated torque: 537 N·m | Speed (rated/max): 800/1300 rpm | Encoder: Serial 17/33-bit (131,072) | Brake: None
