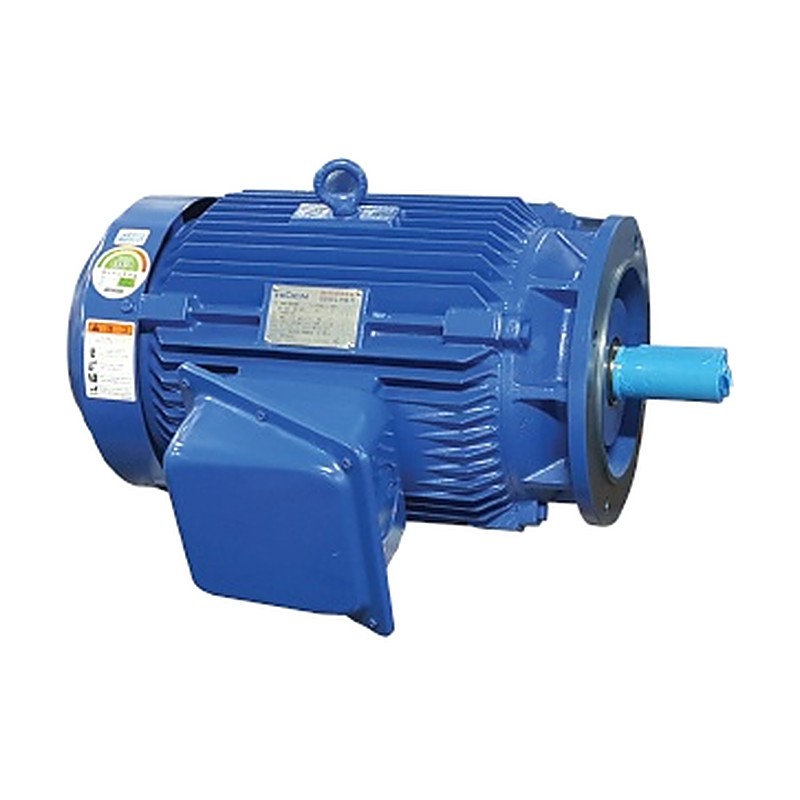

HIGEN RNM Premium Efficiency IE3 TEFC Induction Motors (Flange Mount)

HIGEN RNM Premium Efficiency IE3 TEFC Induction Motors (Flange Mount)

Three-phase totally enclosed fan-cooled vertical flange-mount induction motors from HIGEN RNM, IE3 premium efficiency, flanges FF130 to FF600.

Key features

  • Vertical flange-mount (FF flange) version of the IE3 TEFC motor line
  • 2, 4, 6 and 8 pole windings from 0.2 kW up to 200 kW
  • Flange sizes FF130-FF600 on frames 71M-315M; 180 frame also available with FF350
  • Steel-plate terminal box as standard; cast terminal box from frame 280S
  • Roller (NU) drive-end bearing available for belt (pulley) drive

Specifications

Phase Three phase
Enclosure Totally enclosed fan cooled (TEFC)
Mounting Vertical, flange (FF)
Efficiency class IE3 Premium (KS / NEMA)
Rated voltage 220V / 380V / 440V, 60 Hz
Output range 0.2-200 kW
Frame range 71M-315M
Source HIGEN RNM Low Voltage Motor catalog, p. 7-9, 14-15
TEFC FF130 71M 2P 0.2kW Output: 0.2 kW | Poles: 2 | Shaft: Ø14j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF130 71M 2P 0.4kW Output: 0.4 kW | Poles: 2 | Shaft: Ø14j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF130 71M 4P 0.2kW Output: 0.2 kW | Poles: 4 | Shaft: Ø14j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF130 71M 4P 0.4kW Output: 0.4 kW | Poles: 4 | Shaft: Ø14j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF165 80M 2P 0.75kW Output: 0.75 kW | Poles: 2 | Shaft: Ø19j6 | Efficiency: 77.0% | Current 380V: 1.9 A | Speed: 3460 rpm
TEFC FF165 80M 4P 0.4kW Output: 0.4 kW | Poles: 4 | Shaft: Ø19j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF165 80M 4P 0.75kW Output: 0.75 kW | Poles: 4 | Shaft: Ø19j6 | Efficiency: 83.5% | Current 380V: 1.9 A | Speed: 1730 rpm
TEFC FF165 80M 6P 0.2kW Output: 0.2 kW | Poles: 6 | Shaft: Ø19j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF165 80M 6P 0.4kW Output: 0.4 kW | Poles: 6 | Shaft: Ø19j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF165 80M 8P 0.2kW Output: 0.2 kW | Poles: 8 | Shaft: Ø19j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF165 90L 2P 1.5kW Output: 1.5 kW | Poles: 2 | Shaft: Ø24j6 | Efficiency: 85.5% | Current 380V: 3.3 A | Speed: 3460 rpm
TEFC FF165 90L 2P 2.2kW Output: 2.2 kW | Poles: 2 | Shaft: Ø24j6 | Efficiency: 86.5% | Current 380V: 4.7 A | Speed: 3460 rpm
TEFC FF165 90L 4P 1.5kW Output: 1.5 kW | Poles: 4 | Shaft: Ø24j6 | Efficiency: 86.5% | Current 380V: 3.5 A | Speed: 1740 rpm
TEFC FF165 90L 6P 0.75kW Output: 0.75 kW | Poles: 6 | Shaft: Ø24j6 | Efficiency: 82.5% | Current 380V: 2.2 A | Speed: 1140 rpm
TEFC FF165 90L 8P 0.4kW Output: 0.4 kW | Poles: 8 | Shaft: Ø24j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF215 100L 6P 1.5kW Output: 1.5 kW | Poles: 6 | Shaft: Ø28j6 | Efficiency: 88.5% | Current 380V: 3.7 A | Speed: 1150 rpm
TEFC FF215 100L 8P 0.75kW Output: 0.75 kW | Poles: 8 | Shaft: Ø28j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF215 112M 2P 3.7kW Output: 3.7 kW | Poles: 2 | Shaft: Ø28j6 | Efficiency: 88.5% | Current 380V: 7.7 A | Speed: 3510 rpm
TEFC FF215 112M 4P 2.2kW Output: 2.2 kW | Poles: 4 | Shaft: Ø28j6 | Efficiency: 89.5% | Current 380V: 4.9 A | Speed: 1750 rpm
TEFC FF215 112M 4P 3.7kW Output: 3.7 kW | Poles: 4 | Shaft: Ø28j6 | Efficiency: 89.5% | Current 380V: 8.1 A | Speed: 1750 rpm
TEFC FF215 112M 6P 2.2kW Output: 2.2 kW | Poles: 6 | Shaft: Ø28j6 | Efficiency: 89.5% | Current 380V: 5.3 A | Speed: 1160 rpm
TEFC FF215 112M 8P 1.5kW Output: 1.5 kW | Poles: 8 | Shaft: Ø28j6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF265 132S 2P 5.5kW Output: 5.5 kW | Poles: 2 | Shaft: Ø38k6 | Efficiency: 89.5% | Current 380V: 11.7 A | Speed: 3520 rpm
TEFC FF265 132S 2P 7.5kW Output: 7.5 kW | Poles: 2 | Shaft: Ø38k6 | Efficiency: 90.2% | Current 380V: 15.7 A | Speed: 3530 rpm
TEFC FF265 132S 4P 5.5kW Output: 5.5 kW | Poles: 4 | Shaft: Ø38k6 | Efficiency: 91.7% | Current 380V: 11.8 A | Speed: 1750 rpm
TEFC FF265 132S 6P 3.7kW Output: 3.7 kW | Poles: 6 | Shaft: Ø38k6 | Efficiency: 89.5% | Current 380V: 8.6 A | Speed: 1150 rpm
TEFC FF265 132S 8P 2.2kW Output: 2.2 kW | Poles: 8 | Shaft: Ø38k6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF265 132M 4P 7.5kW Output: 7.5 kW | Poles: 4 | Shaft: Ø38k6 | Efficiency: 91.7% | Current 380V: 15.9 A | Speed: 1750 rpm
TEFC FF265 132M 6P 5.5kW Output: 5.5 kW | Poles: 6 | Shaft: Ø38k6 | Efficiency: 91.0% | Current 380V: 12.8 A | Speed: 1150 rpm
TEFC FF265 132M 8P 3.7kW Output: 3.7 kW | Poles: 8 | Shaft: Ø38k6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF300 160M 2P 11kW Output: 11 kW | Poles: 2 | Shaft: Ø42k6 | Efficiency: 91.0% | Current 380V: 22.4 A | Speed: 3555 rpm
TEFC FF300 160M 2P 15kW Output: 15 kW | Poles: 2 | Shaft: Ø42k6 | Efficiency: 91.0% | Current 380V: 30.4 A | Speed: 3555 rpm
TEFC FF300 160M 4P 11kW Output: 11 kW | Poles: 4 | Shaft: Ø42k6 | Efficiency: 92.4% | Current 380V: 22.9 A | Speed: 1770 rpm
TEFC FF300 160M 6P 7.5kW Output: 7.5 kW | Poles: 6 | Shaft: Ø42k6 | Efficiency: 91.0% | Current 380V: 17.2 A | Speed: 1140 rpm
TEFC FF300 160M 8P 5.5kW Output: 5.5 kW | Poles: 8 | Shaft: Ø42k6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF300 160L 2P 18.5kW Output: 18.5 kW | Poles: 2 | Shaft: Ø42k6 | Efficiency: 91.7% | Current 380V: 36.9 A | Speed: 3560 rpm
TEFC FF300 160L 4P 15kW Output: 15 kW | Poles: 4 | Shaft: Ø42k6 | Efficiency: 93.0% | Current 380V: 30.8 A | Speed: 1770 rpm
TEFC FF300 160L 6P 11kW Output: 11 kW | Poles: 6 | Shaft: Ø42k6 | Efficiency: 91.7% | Current 380V: 24.5 A | Speed: 1175 rpm
TEFC FF300 160L 8P 7.5kW Output: 7.5 kW | Poles: 8 | Shaft: Ø42k6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF300 180M 2P 22kW Output: 22 kW | Poles: 2 | Shaft: Ø48k6 | Efficiency: 91.7% | Current 380V: 43.7 A | Speed: 3560 rpm
TEFC FF300 180M 4P 18.5kW Output: 18.5 kW | Poles: 4 | Shaft: Ø48k6 | Efficiency: 93.6% | Current 380V: 37.5 A | Speed: 1770 rpm
TEFC FF300 180M 4P 22kW Output: 22 kW | Poles: 4 | Shaft: Ø48k6 | Efficiency: 93.6% | Current 380V: 44.4 A | Speed: 1775 rpm
TEFC FF300 180M 6P 15kW Output: 15 kW | Poles: 6 | Shaft: Ø48k6 | Efficiency: 91.7% | Current 380V: 32.9 A | Speed: 1175 rpm
TEFC FF300 180M 8P 11kW Output: 11 kW | Poles: 8 | Shaft: Ø48k6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF300 180L 2P 30kW Output: 30 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 92.4% | Current 380V: 58.7 A | Speed: 3560 rpm
TEFC FF300 180L 4P 30kW Output: 30 kW | Poles: 4 | Shaft: Ø55m6 | Efficiency: 94.1% | Current 380V: 59.8 A | Speed: 1775 rpm
TEFC FF300 180L 6P 18.5kW Output: 18.5 kW | Poles: 6 | Shaft: Ø55m6 | Efficiency: 93.0% | Current 380V: 39.8 A | Speed: 1175 rpm
TEFC FF300 180L 6P 22kW Output: 22 kW | Poles: 6 | Shaft: Ø55m6 | Efficiency: 93.0% | Current 380V: 46.7 A | Speed: 1175 rpm
TEFC FF300 180L 8P 15kW Output: 15 kW | Poles: 8 | Shaft: Ø55m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF400 200L 2P 37kW Output: 37 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 93.0% | Current 380V: 71.5 A | Speed: 3550 rpm
TEFC FF400 200L 2P 45kW Output: 45 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 93.6% | Current 380V: 83.0 A | Speed: 3550 rpm
TEFC FF400 200L 4P 37kW Output: 37 kW | Poles: 4 | Shaft: Ø60m6 | Efficiency: 94.5% | Current 380V: 73.0 A | Speed: 1770 rpm
TEFC FF400 200L 4P 45kW Output: 45 kW | Poles: 4 | Shaft: Ø60m6 | Efficiency: 95.0% | Current 380V: 86.7 A | Speed: 1770 rpm
TEFC FF400 200L 6P 30kW Output: 30 kW | Poles: 6 | Shaft: Ø60m6 | Efficiency: 94.1% | Current 380V: 62.1 A | Speed: 1180 rpm
TEFC FF400 200L 6P 37kW Output: 37 kW | Poles: 6 | Shaft: Ø60m6 | Efficiency: 94.1% | Current 380V: 76.1 A | Speed: 1180 rpm
TEFC FF400 200L 8P 18.5kW Output: 18.5 kW | Poles: 8 | Shaft: Ø60m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF400 200L 8P 22kW Output: 22 kW | Poles: 8 | Shaft: Ø60m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF400 225S 2P 55kW Output: 55 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 93.6% | Current 380V: 101.5 A | Speed: 3530 rpm
TEFC FF400 225S 4P 55kW Output: 55 kW | Poles: 4 | Shaft: Ø65m6 | Efficiency: 95.4% | Current 380V: 104.9 A | Speed: 1770 rpm
TEFC FF400 225S 6P 45kW Output: 45 kW | Poles: 6 | Shaft: Ø65m6 | Efficiency: 94.5% | Current 380V: 88.8 A | Speed: 1170 rpm
TEFC FF400 225S 8P 30kW Output: 30 kW | Poles: 8 | Shaft: Ø65m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF500 250S 2P 75kW Output: 75 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 94.1% | Current 380V: 136.1 A | Speed: 3550 rpm
TEFC FF500 250S 4P 75kW Output: 75 kW | Poles: 4 | Shaft: Ø75m6 | Efficiency: 95.4% | Current 380V: 142.2 A | Speed: 1770 rpm
TEFC FF500 250S 6P 55kW Output: 55 kW | Poles: 6 | Shaft: Ø75m6 | Efficiency: 94.5% | Current 380V: 107.8 A | Speed: 1180 rpm
TEFC FF500 250S 8P 37kW Output: 37 kW | Poles: 8 | Shaft: Ø75m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF500 250M 2P 90kW Output: 90 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 95.0% | Current 380V: 161.7 A | Speed: 3570 rpm
TEFC FF500 250M 4P 90kW Output: 90 kW | Poles: 4 | Shaft: Ø75m6 | Efficiency: 95.4% | Current 380V: 168.6 A | Speed: 1780 rpm
TEFC FF500 250M 6P 75kW Output: 75 kW | Poles: 6 | Shaft: Ø75m6 | Efficiency: 95.0% | Current 380V: 145.4 A | Speed: 1180 rpm
TEFC FF500 250M 8P 45kW Output: 45 kW | Poles: 8 | Shaft: Ø75m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF500 280S 2P 110kW Output: 110 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 95.0% | Current 380V: 196.6 A | Speed: 3560 rpm
TEFC FF500 280S 4P 110kW Output: 110 kW | Poles: 4 | Shaft: Ø85m6 | Efficiency: 95.8% | Current 380V: 202.9 A | Speed: 1775 rpm
TEFC FF500 280S 6P 90kW Output: 90 kW | Poles: 6 | Shaft: Ø85m6 | Efficiency: 95.0% | Current 380V: 171.4 A | Speed: 1180 rpm
TEFC FF500 280S 8P 55kW Output: 55 kW | Poles: 8 | Shaft: Ø85m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF500 280M 2P 132kW Output: 132 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 95.4% | Current 380V: 234.9 A | Speed: 3560 rpm
TEFC FF500 280M 4P 132kW Output: 132 kW | Poles: 4 | Shaft: Ø85m6 | Efficiency: 95.8% | Current 380V: 240.6 A | Speed: 1775 rpm
TEFC FF500 280M 6P 110kW Output: 110 kW | Poles: 6 | Shaft: Ø85m6 | Efficiency: 95.8% | Current 380V: 202.9 A | Speed: 1180 rpm
TEFC FF500 280M 8P 75kW Output: 75 kW | Poles: 8 | Shaft: Ø85m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF600 315S 2P 160kW Output: 160 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 95.4% | Current 380V: 283.1 A | Speed: 3560 rpm
TEFC FF600 315S 4P 160kW Output: 160 kW | Poles: 4 | Shaft: Ø95m6 | Efficiency: 96.2% | Current 380V: 287.2 A | Speed: 1780 rpm
TEFC FF600 315S 6P 132kW Output: 132 kW | Poles: 6 | Shaft: Ø95m6 | Efficiency: 95.8% | Current 380V: 243.4 A | Speed: 1180 rpm
TEFC FF600 315S 8P 90kW Output: 90 kW | Poles: 8 | Shaft: Ø95m6 | Efficiency: - | Current 380V: - | Speed: -
TEFC FF600 315M 2P 200kW Output: 200 kW | Poles: 2 | Shaft: Ø55m6 | Efficiency: 95.8% | Current 380V: 352.4 A | Speed: 3540 rpm
TEFC FF600 315M 4P 200kW Output: 200 kW | Poles: 4 | Shaft: Ø95m6 | Efficiency: 96.2% | Current 380V: 359.0 A | Speed: 1780 rpm
TEFC FF600 315M 6P 160kW Output: 160 kW | Poles: 6 | Shaft: Ø95m6 | Efficiency: 95.8% | Current 380V: 295.1 A | Speed: 1180 rpm
TEFC FF600 315M 8P 110kW Output: 110 kW | Poles: 8 | Shaft: Ø95m6 | Efficiency: - | Current 380V: - | Speed: -
