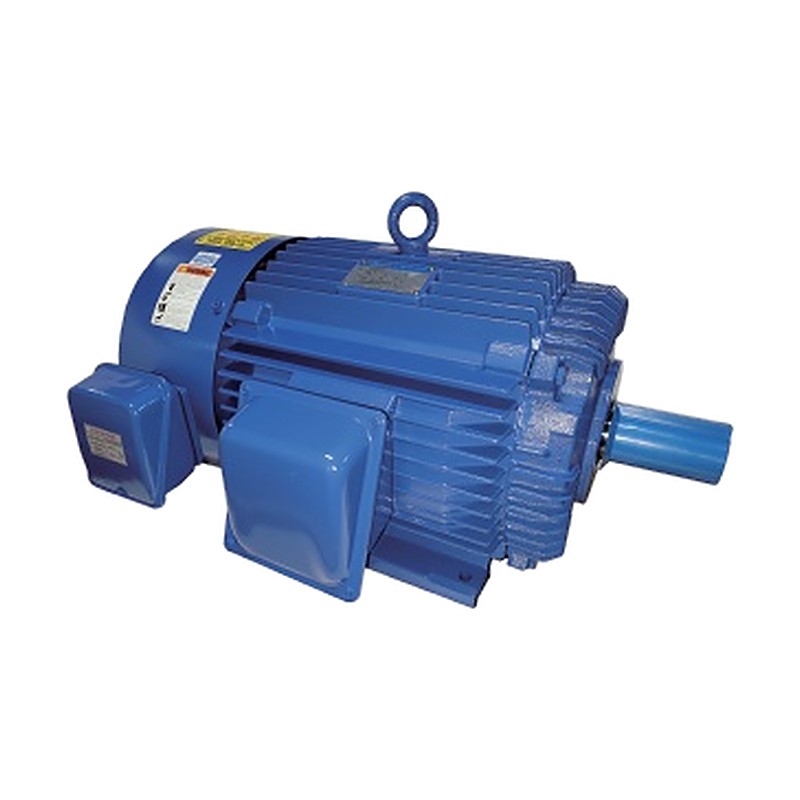

HIGEN RNM Inverter Duty Motors for General-Purpose Inverters

HIGEN RNM Inverter Duty Motors for General-Purpose Inverters

Self-ventilated TEFC inverter-duty induction motors from HIGEN RNM for driving pumps, fans and other centrifugal loads on general-purpose inverters over 20-60 Hz.

Key features

  • Inverter-grade insulation system with high partial-discharge inception voltage for surge resistance
  • Constant-torque operation from 20 to 60 Hz, constant-output area above 60 Hz
  • Harmonics-reduction core for low noise and precision machining for low vibration
  • 150% overload capacity for 1 minute
  • Same external dimensions as the HIGEN RNM three-phase TEFC motor line
  • Self-ventilated as standard; forced-ventilated type available

Specifications

Enclosure Totally enclosed fan cooled
Protection grade IP44 or IP54 / IP55
Insulation class F or F/B
Cooling Self ventilated or forced ventilated
Overload capacity 150%, 1 minute
Operating range 20-60 Hz
Poles 4 / 6
Source HIGEN RNM Low Voltage Motor catalog, p. 22-23
Inverter Duty 80M 4P 0.75kW Output: 1 HP / 0.75 kW | Poles: 4 | Frame: 80M
Inverter Duty 90L 6P 0.75kW Output: 1 HP / 0.75 kW | Poles: 6 | Frame: 90L
Inverter Duty 90L 4P 1.5kW Output: 2 HP / 1.5 kW | Poles: 4 | Frame: 90L
Inverter Duty 100L 6P 1.5kW Output: 2 HP / 1.5 kW | Poles: 6 | Frame: 100L
Inverter Duty 100L 4P 2.2kW Output: 3 HP / 2.2 kW | Poles: 4 | Frame: 100L
Inverter Duty 112M 6P 2.2kW Output: 3 HP / 2.2 kW | Poles: 6 | Frame: 112M
Inverter Duty 112M 4P 3.7kW Output: 5 HP / 3.7 kW | Poles: 4 | Frame: 112M
Inverter Duty 132S 6P 3.7kW Output: 5 HP / 3.7 kW | Poles: 6 | Frame: 132S
Inverter Duty 132S 4P 5.5kW Output: 7.5 HP / 5.5 kW | Poles: 4 | Frame: 132S
Inverter Duty 132M 6P 5.5kW Output: 7.5 HP / 5.5 kW | Poles: 6 | Frame: 132M
Inverter Duty 132M 4P 7.5kW Output: 10 HP / 7.5 kW | Poles: 4 | Frame: 132M
Inverter Duty 160M 6P 7.5kW Output: 10 HP / 7.5 kW | Poles: 6 | Frame: 160M
Inverter Duty 160M 4P 11kW Output: 15 HP / 11 kW | Poles: 4 | Frame: 160M
Inverter Duty 160L 6P 11kW Output: 15 HP / 11 kW | Poles: 6 | Frame: 160L
Inverter Duty 160L 4P 15kW Output: 20 HP / 15 kW | Poles: 4 | Frame: 160L
Inverter Duty 180M 6P 15kW Output: 20 HP / 15 kW | Poles: 6 | Frame: 180M
Inverter Duty 180M 4P 18.5kW Output: 25 HP / 18.5 kW | Poles: 4 | Frame: 180M
Inverter Duty 180L 6P 18.5kW Output: 25 HP / 18.5 kW | Poles: 6 | Frame: 180L
Inverter Duty 180M 4P 22kW Output: 30 HP / 22 kW | Poles: 4 | Frame: 180M
Inverter Duty 180L 6P 22kW Output: 30 HP / 22 kW | Poles: 6 | Frame: 180L
Inverter Duty 180L 4P 30kW Output: 40 HP / 30 kW | Poles: 4 | Frame: 180L
Inverter Duty 200L 6P 30kW Output: 40 HP / 30 kW | Poles: 6 | Frame: 200L
Inverter Duty 200L 4P 37kW Output: 50 HP / 37 kW | Poles: 4 | Frame: 200L
Inverter Duty 200L 6P 37kW Output: 50 HP / 37 kW | Poles: 6 | Frame: 200L
Inverter Duty 200L 4P 45kW Output: 60 HP / 45 kW | Poles: 4 | Frame: 200L
Inverter Duty 225S 6P 45kW Output: 60 HP / 45 kW | Poles: 6 | Frame: 225S
Inverter Duty 225S 4P 55kW Output: 75 HP / 55 kW | Poles: 4 | Frame: 225S
Inverter Duty 250S 6P 55kW Output: 75 HP / 55 kW | Poles: 6 | Frame: 250S
Inverter Duty 250S 4P 75kW Output: 100 HP / 75 kW | Poles: 4 | Frame: 250S
Inverter Duty 250M 6P 75kW Output: 100 HP / 75 kW | Poles: 6 | Frame: 250M
Inverter Duty 250M 4P 90kW Output: 120 HP / 90 kW | Poles: 4 | Frame: 250M
Inverter Duty 280S 6P 90kW Output: 120 HP / 90 kW | Poles: 6 | Frame: 280S
Inverter Duty 280S 4P 110kW Output: 150 HP / 110 kW | Poles: 4 | Frame: 280S
Inverter Duty 280M 6P 110kW Output: 150 HP / 110 kW | Poles: 6 | Frame: 280M
Inverter Duty 280M 4P 132kW Output: 175 HP / 132 kW | Poles: 4 | Frame: 280M
Inverter Duty 315S 6P 132kW Output: 175 HP / 132 kW | Poles: 6 | Frame: 315S
Inverter Duty 315S 4P 160kW Output: 215 HP / 160 kW | Poles: 4 | Frame: 315S
AC MotorsHIGEN RNM
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM Inverter Duty Motors for General-Purpose Inverters

Brand HIGEN RNM·AC Motors

Available part numbers (37)

Inverter Duty 80M 4P 0.75kW, Inverter Duty 90L 6P 0.75kW, Inverter Duty 90L 4P 1.5kW, Inverter Duty 100L 6P 1.5kW, Inverter Duty 100L 4P 2.2kW, Inverter Duty 112M 6P 2.2kW, Inverter Duty 112M 4P 3.7kW, Inverter Duty 132S 6P 3.7kW, Inverter Duty 132S 4P 5.5kW, Inverter Duty 132M 6P 5.5kW + 27 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
Inverter Duty 80M 4P 0.75kWOutput: 1 HP / 0.75 kW | Poles: 4 | Frame: 80M
Inverter Duty 90L 6P 0.75kWOutput: 1 HP / 0.75 kW | Poles: 6 | Frame: 90L
Inverter Duty 90L 4P 1.5kWOutput: 2 HP / 1.5 kW | Poles: 4 | Frame: 90L
Inverter Duty 100L 6P 1.5kWOutput: 2 HP / 1.5 kW | Poles: 6 | Frame: 100L
Inverter Duty 100L 4P 2.2kWOutput: 3 HP / 2.2 kW | Poles: 4 | Frame: 100L
Inverter Duty 112M 6P 2.2kWOutput: 3 HP / 2.2 kW | Poles: 6 | Frame: 112M
Inverter Duty 112M 4P 3.7kWOutput: 5 HP / 3.7 kW | Poles: 4 | Frame: 112M
Inverter Duty 132S 6P 3.7kWOutput: 5 HP / 3.7 kW | Poles: 6 | Frame: 132S
Inverter Duty 132S 4P 5.5kWOutput: 7.5 HP / 5.5 kW | Poles: 4 | Frame: 132S
Inverter Duty 132M 6P 5.5kWOutput: 7.5 HP / 5.5 kW | Poles: 6 | Frame: 132M
Inverter Duty 132M 4P 7.5kWOutput: 10 HP / 7.5 kW | Poles: 4 | Frame: 132M
Inverter Duty 160M 6P 7.5kWOutput: 10 HP / 7.5 kW | Poles: 6 | Frame: 160M
Inverter Duty 160M 4P 11kWOutput: 15 HP / 11 kW | Poles: 4 | Frame: 160M
Inverter Duty 160L 6P 11kWOutput: 15 HP / 11 kW | Poles: 6 | Frame: 160L
Inverter Duty 160L 4P 15kWOutput: 20 HP / 15 kW | Poles: 4 | Frame: 160L
Inverter Duty 180M 6P 15kWOutput: 20 HP / 15 kW | Poles: 6 | Frame: 180M
Inverter Duty 180M 4P 18.5kWOutput: 25 HP / 18.5 kW | Poles: 4 | Frame: 180M
Inverter Duty 180L 6P 18.5kWOutput: 25 HP / 18.5 kW | Poles: 6 | Frame: 180L
Inverter Duty 180M 4P 22kWOutput: 30 HP / 22 kW | Poles: 4 | Frame: 180M
Inverter Duty 180L 6P 22kWOutput: 30 HP / 22 kW | Poles: 6 | Frame: 180L
Inverter Duty 180L 4P 30kWOutput: 40 HP / 30 kW | Poles: 4 | Frame: 180L
Inverter Duty 200L 6P 30kWOutput: 40 HP / 30 kW | Poles: 6 | Frame: 200L
Inverter Duty 200L 4P 37kWOutput: 50 HP / 37 kW | Poles: 4 | Frame: 200L
Inverter Duty 200L 6P 37kWOutput: 50 HP / 37 kW | Poles: 6 | Frame: 200L
Inverter Duty 200L 4P 45kWOutput: 60 HP / 45 kW | Poles: 4 | Frame: 200L
Inverter Duty 225S 6P 45kWOutput: 60 HP / 45 kW | Poles: 6 | Frame: 225S
Inverter Duty 225S 4P 55kWOutput: 75 HP / 55 kW | Poles: 4 | Frame: 225S
Inverter Duty 250S 6P 55kWOutput: 75 HP / 55 kW | Poles: 6 | Frame: 250S
Inverter Duty 250S 4P 75kWOutput: 100 HP / 75 kW | Poles: 4 | Frame: 250S
Inverter Duty 250M 6P 75kWOutput: 100 HP / 75 kW | Poles: 6 | Frame: 250M
Inverter Duty 250M 4P 90kWOutput: 120 HP / 90 kW | Poles: 4 | Frame: 250M
Inverter Duty 280S 6P 90kWOutput: 120 HP / 90 kW | Poles: 6 | Frame: 280S
Inverter Duty 280S 4P 110kWOutput: 150 HP / 110 kW | Poles: 4 | Frame: 280S
Inverter Duty 280M 6P 110kWOutput: 150 HP / 110 kW | Poles: 6 | Frame: 280M
Inverter Duty 280M 4P 132kWOutput: 175 HP / 132 kW | Poles: 4 | Frame: 280M
Inverter Duty 315S 6P 132kWOutput: 175 HP / 132 kW | Poles: 6 | Frame: 315S
Inverter Duty 315S 4P 160kWOutput: 215 HP / 160 kW | Poles: 4 | Frame: 315S
