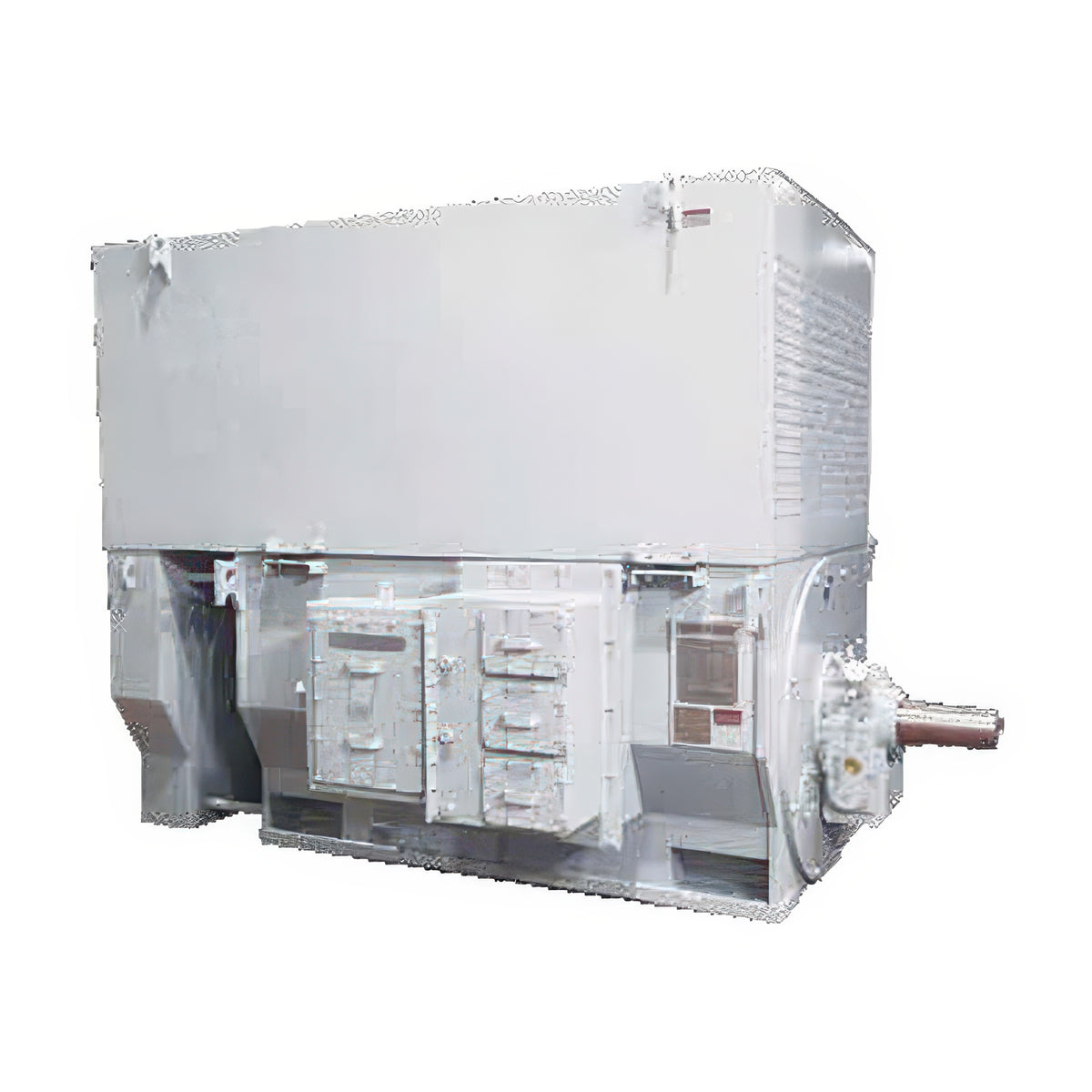

HIGEN RNM NHE High Voltage Induction Motor, TEAAC Air-to-Air Cooled, IEC 355-630, 350-4,000 kW

HIGEN RNM NHE High Voltage Induction Motor, TEAAC Air-to-Air Cooled, IEC 355-630, 350-4,000 kW

The NHE is a totally enclosed air-to-air cooled (TEAAC) high voltage squirrel cage induction motor from the N-series NH line.

Key features

  • It uses an extremely robust welded steel housing with a modular top-mounted air-air cooler
  • Frames run from IEC 355 to 630 with feet lengths E, F and G, covering 2 to 8 poles at 3300/6600 V 60 Hz and 3000/6000 V 50 Hz
  • Intensive cooling of winding ends and a brazed copper bar rotor support heavy duty and high inertia loads
  • Products are listed by frame size; pole count, voltage and options are specified at order

Specifications

Series NHE
Rotor brazed copper bar and ring squirrel cage
Voltage range 600 V to 13.2 kV (frames for 11 kV and above on request)
Mounting B3 (V1 optional)
Insulation class F
Enclosure TEAAC IP44/IP65, IC611/IC616
HIGEN RNM NHE High Voltage Induction Motor, TEAAC Air-to-Air Cooled, IEC 355-630, 350-4,000 kW reference 2
NHE-355F Series: NHE | Frame: 355F (IEC frame 355, feet length F) | Output 60Hz 3300V/6600V: 4P 600 kW, 6P 400 kW | Output 50Hz 3000V/6000V: 4P 550 kW, 6P 350 kW | Weight: 3300 kg | Shaft height H: 355 mm | Shaft D x E: 2P 85x170, 4P 100x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P 6218C3/6218C3, 4P 6322C3/6322C3, 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-355E Series: NHE | Frame: 355E (IEC frame 355, feet length E) | Output 60Hz 3300V/6600V: 2P 700 kW, 4P 750 kW, 6P 550 kW, 8P 400 kW | Output 50Hz 3000V/6000V: 2P 600 kW, 4P 650 kW, 6P 450 kW, 8P 350 kW | Weight: 3500 kg | Shaft height H: 355 mm | Shaft D x E: 2P 85x170, 4P 100x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P 6218C3/6218C3, 4P 6322C3/6322C3, 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-400F Series: NHE | Frame: 400F (IEC frame 400, feet length F) | Output 60Hz 3300V/6600V: 4P 900 kW, 6P 750 kW, 8P 600 kW | Output 50Hz 3000V/6000V: 4P 780 kW, 6P 650 kW, 8P 480 kW | Weight: 5000 kg | Shaft height H: 400 mm | Shaft D x E: 2P 100x170, 4P 110x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P and 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-400E Series: NHE | Frame: 400E (IEC frame 400, feet length E) | Output 60Hz 3300V/6600V: 2P 1250 kW, 4P 1250 kW, 6P 950 kW, 8P 750 kW | Output 50Hz 3000V/6000V: 2P 1000 kW, 4P 1040 kW, 6P 820 kW, 8P 600 kW | Weight: 5400 kg | Shaft height H: 400 mm | Shaft D x E: 2P 100x170, 4P 110x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P and 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-450F Series: NHE | Frame: 450F (IEC frame 450, feet length F) | Output 60Hz 3300V/6600V: 4P 1500 kW, 6P 1200 kW, 8P 900 kW | Output 50Hz 3000V/6000V: 4P 1300 kW, 6P 980 kW, 8P 770 kW | Weight: 6200 kg | Shaft height H: 450 mm | Shaft D x E: 2P 110x210, 4P 130x250, 6P+ 140x250 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6328C3/6228C3, 6P+ 6330C3/6230C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-450E Series: NHE | Frame: 450E (IEC frame 450, feet length E) | Output 60Hz 3300V/6600V: 2P 2000 kW, 4P 1900 kW, 6P 1550 kW, 8P 1200 kW | Output 50Hz 3000V/6000V: 2P 1600 kW, 4P 1600 kW, 6P 1250 kW, 8P 980 kW | Weight: 6800 kg | Shaft height H: 450 mm | Shaft D x E: 2P 110x210, 4P 130x250, 6P+ 140x250 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6328C3/6228C3, 6P+ 6330C3/6230C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-500G Series: NHE | Frame: 500G (IEC frame 500, feet length G) | Output 60Hz 3300V/6600V: 4P 2300 kW, 6P 1800 kW, 8P 1400 kW | Output 50Hz 3000V/6000V: 4P 2000 kW, 6P 1500 kW, 8P 1100 kW | Weight: 7700 kg | Shaft height H: 500 mm | Shaft D x E: 2P 120x210, 4P 140x250, 6P+ 160x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6330C3/6230C3, 6P+ 6334C3/6234C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-500F Series: NHE | Frame: 500F (IEC frame 500, feet length F) | Output 60Hz 3300V/6600V: 4P 2600 kW, 6P 2100 kW, 8P 1600 kW | Output 50Hz 3000V/6000V: 4P 2120 kW, 6P 1650 kW, 8P 1260 kW | Weight: 8200 kg | Shaft height H: 500 mm | Shaft D x E: 2P 120x210, 4P 140x250, 6P+ 160x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6330C3/6230C3, 6P+ 6334C3/6234C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-500E Series: NHE | Frame: 500E (IEC frame 500, feet length E) | Output 60Hz 3300V/6600V: 2P 3000 kW, 4P 3000 kW, 6P 2500 kW, 8P 2000 kW | Output 50Hz 3000V/6000V: 2P 2400 kW, 4P 2600 kW, 6P 2050 kW, 8P 1600 kW | Weight: 9200 kg | Shaft height H: 500 mm | Shaft D x E: 2P 120x210, 4P 140x250, 6P+ 160x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6330C3/6230C3, 6P+ 6334C3/6234C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-560G Series: NHE | Frame: 560G (IEC frame 560, feet length G) | Output 60Hz 3300V/6600V: 2P 3800 kW, 4P 3500 kW, 6P 2750 kW, 8P 2250 kW | Output 50Hz 3000V/6000V: 2P 3200 kW, 4P 3100 kW, 6P 2250 kW, 8P 1800 kW | Weight: 10400 kg | Shaft height H: 560 mm | Shaft D x E: 2P 140x250, 4P 160x300, 6P+ 180x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1034+6034/NU1034, 6P+ NU1038+6038/NU1038 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-560F Series: NHE | Frame: 560F (IEC frame 560, feet length F) | Output 60Hz 3300V/6600V: 4P 4000 kW, 6P 3200 kW, 8P 2700 kW | Output 50Hz 3000V/6000V: 4P 3600 kW, 6P 2650 kW, 8P 2150 kW | Weight: 12100 kg | Shaft height H: 560 mm | Shaft D x E: 2P 140x250, 4P 160x300, 6P+ 180x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1034+6034/NU1034, 6P+ NU1038+6038/NU1038 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-560E Series: NHE | Frame: 560E (IEC frame 560, feet length E) | Output 60Hz 3300V/6600V: 2P 4000 kW, 6P 4000 kW, 8P 3200 kW | Output 50Hz 3000V/6000V: 2P 3700 kW, 4P 4000 kW, 6P 3300 kW, 8P 2600 kW | Weight: 13500 kg | Shaft height H: 560 mm | Shaft D x E: 2P 140x250, 4P 160x300, 6P+ 180x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1034+6034/NU1034, 6P+ NU1038+6038/NU1038 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-630G Series: NHE | Frame: 630G (IEC frame 630, feet length G) | Output 60Hz 3300V/6600V: 8P 3450 kW | Output 50Hz 3000V/6000V: 2P 4000 kW, 6P 3600 kW, 8P 3000 kW | Weight: 15200 kg | Shaft height H: 630 mm | Shaft D x E: 2P 160x300, 4P 180x350, 6P+ 200x350 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1038+6038/NU1038, 6P+ NU1044+6044/NU1044 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-630F Series: NHE | Frame: 630F (IEC frame 630, feet length F) | Output 60Hz 3300V/6600V: 8P 4000 kW | Output 50Hz 3000V/6000V: 6P 4000 kW, 8P 3300 kW | Weight: 16000 kg | Shaft height H: 630 mm | Shaft D x E: 2P 160x300, 4P 180x350, 6P+ 200x350 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1038+6038/NU1038, 6P+ NU1044+6044/NU1044 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-630E Series: NHE | Frame: 630E (IEC frame 630, feet length E) | Output 60Hz 3300V/6600V: not assigned | Output 50Hz 3000V/6000V: 8P 3900 kW | Weight: 18000 kg | Shaft height H: 630 mm | Shaft D x E: 2P 160x300, 4P 180x350, 6P+ 200x350 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1038+6038/NU1038, 6P+ NU1044+6044/NU1044 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
AC MotorsHIGEN RNM
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

HIGEN RNM NHE High Voltage Induction Motor, TEAAC Air-to-Air Cooled, IEC 355-630, 350-4,000 kW

Brand HIGEN RNM·AC Motors

Available part numbers (15)

NHE-355F, NHE-355E, NHE-400F, NHE-400E, NHE-450F, NHE-450E, NHE-500G, NHE-500F, NHE-500E, NHE-560G + 5 more — see full table ↓

How to order

Send the HIGEN RNM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
HIGEN RNM NHE High Voltage Induction Motor, TEAAC Air-to-Air Cooled, IEC 355-630, 350-4,000 kW reference 2
0 selected
RFQ List (0)
Product codeSpec
NHE-355FSeries: NHE | Frame: 355F (IEC frame 355, feet length F) | Output 60Hz 3300V/6600V: 4P 600 kW, 6P 400 kW | Output 50Hz 3000V/6000V: 4P 550 kW, 6P 350 kW | Weight: 3300 kg | Shaft height H: 355 mm | Shaft D x E: 2P 85x170, 4P 100x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P 6218C3/6218C3, 4P 6322C3/6322C3, 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-355ESeries: NHE | Frame: 355E (IEC frame 355, feet length E) | Output 60Hz 3300V/6600V: 2P 700 kW, 4P 750 kW, 6P 550 kW, 8P 400 kW | Output 50Hz 3000V/6000V: 2P 600 kW, 4P 650 kW, 6P 450 kW, 8P 350 kW | Weight: 3500 kg | Shaft height H: 355 mm | Shaft D x E: 2P 85x170, 4P 100x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P 6218C3/6218C3, 4P 6322C3/6322C3, 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-400FSeries: NHE | Frame: 400F (IEC frame 400, feet length F) | Output 60Hz 3300V/6600V: 4P 900 kW, 6P 750 kW, 8P 600 kW | Output 50Hz 3000V/6000V: 4P 780 kW, 6P 650 kW, 8P 480 kW | Weight: 5000 kg | Shaft height H: 400 mm | Shaft D x E: 2P 100x170, 4P 110x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P and 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-400ESeries: NHE | Frame: 400E (IEC frame 400, feet length E) | Output 60Hz 3300V/6600V: 2P 1250 kW, 4P 1250 kW, 6P 950 kW, 8P 750 kW | Output 50Hz 3000V/6000V: 2P 1000 kW, 4P 1040 kW, 6P 820 kW, 8P 600 kW | Weight: 5400 kg | Shaft height H: 400 mm | Shaft D x E: 2P 100x170, 4P 110x210, 6P+ 110x210 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P and 6P+ 6324C3/6224C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-450FSeries: NHE | Frame: 450F (IEC frame 450, feet length F) | Output 60Hz 3300V/6600V: 4P 1500 kW, 6P 1200 kW, 8P 900 kW | Output 50Hz 3000V/6000V: 4P 1300 kW, 6P 980 kW, 8P 770 kW | Weight: 6200 kg | Shaft height H: 450 mm | Shaft D x E: 2P 110x210, 4P 130x250, 6P+ 140x250 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6328C3/6228C3, 6P+ 6330C3/6230C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-450ESeries: NHE | Frame: 450E (IEC frame 450, feet length E) | Output 60Hz 3300V/6600V: 2P 2000 kW, 4P 1900 kW, 6P 1550 kW, 8P 1200 kW | Output 50Hz 3000V/6000V: 2P 1600 kW, 4P 1600 kW, 6P 1250 kW, 8P 980 kW | Weight: 6800 kg | Shaft height H: 450 mm | Shaft D x E: 2P 110x210, 4P 130x250, 6P+ 140x250 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6328C3/6228C3, 6P+ 6330C3/6230C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-500GSeries: NHE | Frame: 500G (IEC frame 500, feet length G) | Output 60Hz 3300V/6600V: 4P 2300 kW, 6P 1800 kW, 8P 1400 kW | Output 50Hz 3000V/6000V: 4P 2000 kW, 6P 1500 kW, 8P 1100 kW | Weight: 7700 kg | Shaft height H: 500 mm | Shaft D x E: 2P 120x210, 4P 140x250, 6P+ 160x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6330C3/6230C3, 6P+ 6334C3/6234C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-500FSeries: NHE | Frame: 500F (IEC frame 500, feet length F) | Output 60Hz 3300V/6600V: 4P 2600 kW, 6P 2100 kW, 8P 1600 kW | Output 50Hz 3000V/6000V: 4P 2120 kW, 6P 1650 kW, 8P 1260 kW | Weight: 8200 kg | Shaft height H: 500 mm | Shaft D x E: 2P 120x210, 4P 140x250, 6P+ 160x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6330C3/6230C3, 6P+ 6334C3/6234C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-500ESeries: NHE | Frame: 500E (IEC frame 500, feet length E) | Output 60Hz 3300V/6600V: 2P 3000 kW, 4P 3000 kW, 6P 2500 kW, 8P 2000 kW | Output 50Hz 3000V/6000V: 2P 2400 kW, 4P 2600 kW, 6P 2050 kW, 8P 1600 kW | Weight: 9200 kg | Shaft height H: 500 mm | Shaft D x E: 2P 120x210, 4P 140x250, 6P+ 160x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P 6330C3/6230C3, 6P+ 6334C3/6234C3 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-560GSeries: NHE | Frame: 560G (IEC frame 560, feet length G) | Output 60Hz 3300V/6600V: 2P 3800 kW, 4P 3500 kW, 6P 2750 kW, 8P 2250 kW | Output 50Hz 3000V/6000V: 2P 3200 kW, 4P 3100 kW, 6P 2250 kW, 8P 1800 kW | Weight: 10400 kg | Shaft height H: 560 mm | Shaft D x E: 2P 140x250, 4P 160x300, 6P+ 180x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1034+6034/NU1034, 6P+ NU1038+6038/NU1038 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-560FSeries: NHE | Frame: 560F (IEC frame 560, feet length F) | Output 60Hz 3300V/6600V: 4P 4000 kW, 6P 3200 kW, 8P 2700 kW | Output 50Hz 3000V/6000V: 4P 3600 kW, 6P 2650 kW, 8P 2150 kW | Weight: 12100 kg | Shaft height H: 560 mm | Shaft D x E: 2P 140x250, 4P 160x300, 6P+ 180x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1034+6034/NU1034, 6P+ NU1038+6038/NU1038 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-560ESeries: NHE | Frame: 560E (IEC frame 560, feet length E) | Output 60Hz 3300V/6600V: 2P 4000 kW, 6P 4000 kW, 8P 3200 kW | Output 50Hz 3000V/6000V: 2P 3700 kW, 4P 4000 kW, 6P 3300 kW, 8P 2600 kW | Weight: 13500 kg | Shaft height H: 560 mm | Shaft D x E: 2P 140x250, 4P 160x300, 6P+ 180x300 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1034+6034/NU1034, 6P+ NU1038+6038/NU1038 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-630GSeries: NHE | Frame: 630G (IEC frame 630, feet length G) | Output 60Hz 3300V/6600V: 8P 3450 kW | Output 50Hz 3000V/6000V: 2P 4000 kW, 6P 3600 kW, 8P 3000 kW | Weight: 15200 kg | Shaft height H: 630 mm | Shaft D x E: 2P 160x300, 4P 180x350, 6P+ 200x350 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1038+6038/NU1038, 6P+ NU1044+6044/NU1044 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-630FSeries: NHE | Frame: 630F (IEC frame 630, feet length F) | Output 60Hz 3300V/6600V: 8P 4000 kW | Output 50Hz 3000V/6000V: 6P 4000 kW, 8P 3300 kW | Weight: 16000 kg | Shaft height H: 630 mm | Shaft D x E: 2P 160x300, 4P 180x350, 6P+ 200x350 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1038+6038/NU1038, 6P+ NU1044+6044/NU1044 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
NHE-630ESeries: NHE | Frame: 630E (IEC frame 630, feet length E) | Output 60Hz 3300V/6600V: not assigned | Output 50Hz 3000V/6000V: 8P 3900 kW | Weight: 18000 kg | Shaft height H: 630 mm | Shaft D x E: 2P 160x300, 4P 180x350, 6P+ 200x350 mm | Bearings (DE/NDE): 2P sleeve bearing (oil lubricated), 4P NU1038+6038/NU1038, 6P+ NU1044+6044/NU1044 | Rotor: brazed copper bar and ring squirrel cage | Frame: welded steel | Voltage range: 600 V to 13.2 kV (frames for 11 kV and above on request) | Mounting: B3 (V1 optional) | Insulation: class F | Enclosure: TEAAC IP44/IP65, IC611/IC616
