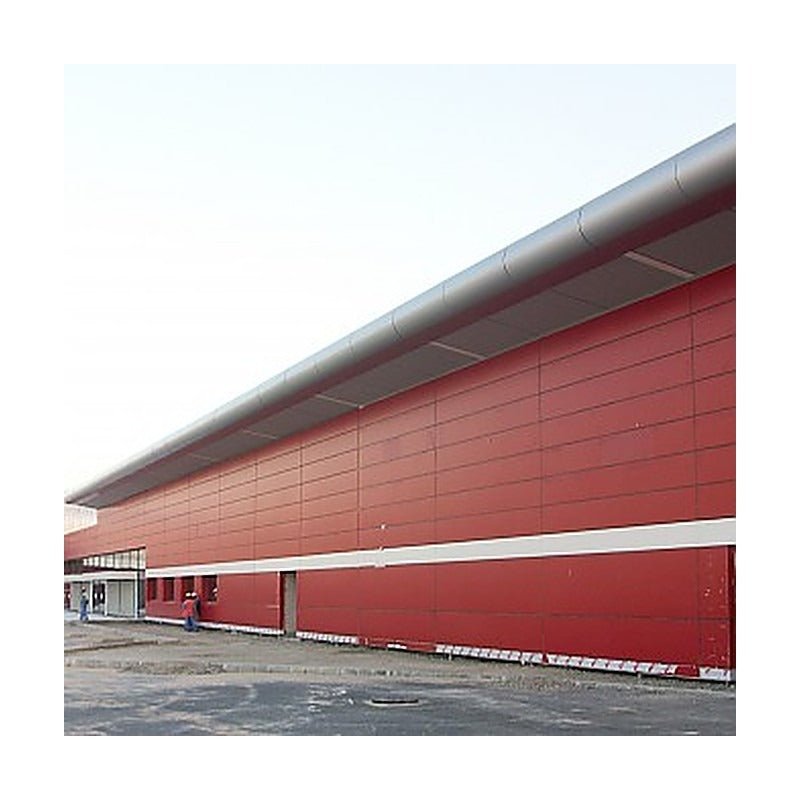

ARCHITECKS FR Fire-Retardant Aluminium Composite Panel (4 mm)

ARCHITECKS FR is Hongseong Industrial's flagship aluminium composite panel: two 0.5 mm aluminium skins bonded to a non-combustible mineral-filled FR core for quasi-non-combustible fire performance. It is light, easy to cut and fold, and suited to high-rise exterior cladding.

Key features

0.5 mm aluminium skins with a mineral-filled fire-retardant (FR) core
Front skin coated with PVDF fluoropolymer paint for long-term UV and weather resistance
Solid colours plus wood-grain and stone patterns; hydrophilic or ceramic anti-soiling coatings available
In-house film-type adhesive for uniform, durable bond strength
More than 50% lighter than solid metal sheet; easy routing, cutting and folding on site
Korea's first aluminium composite panel, developed and marketed by Hongseong since 1987

Specifications

Construction	0.5 AL + 3.0 FR core + 0.5 AL
Standard thickness	4 mm (3 to 6 mm available)
Widths	1,020 / 1,250 / 1,575 mm (custom on request)
Length	2,000 to 5,000 mm
Front skin finish	PVDF fluoropolymer coating
Rear skin	0.5 mm mill finish (service coating optional)
Fire performance	Quasi-non-combustible or better
Certification	PSB (ARCHITECKS FR)
Standard colours (metallic)	HS-110MT Metallic White, HS-217MT Champagne, HS-211MT Silver, HS-355MT Turquoise, HS-285MT Medium Bronze, HS-311MT Exotic Silver, HS-353MT Jade, HS-327MT Gold, HS-411MT Bright Silver, HS-710MT Wine Red, HS-275MT Copper Penny, HS-511MT Gray Silver
Standard colours (solid)	HS-114 White, HS-123 Yellow, HS-170 Red, HS-111 Bone White, HS-122 Ivory, HS-165 Orange, HS-112 Ascot White, HS-134 Raw Gray, HS-157 Light Blue, HS-116 Concert White, HS-124 Sea Wolf, HS-148 Emerald Green, HS-132 Dove Gray, HS-136 Fashion Gray, HS-158 Signal Blue, HS-137 Dark Gray, HS-199 Black, HS-185 Rustic Bronze
Standard colours (special)	HS-039SP Granite, HS-015SP Chameleon, HS-017SP Anodizing, HS-033SP Dark Brown, HS-037SP Wood; custom colours on request
Source	architecks.com m02_01_01, m02_01_04

ARCHITECKS FR 4T W1020		Thickness: 4 mm \| Width: 1,020 mm \| Length: 2,000-5,000 mm \| Core: Mineral-filled FR
ARCHITECKS FR 4T W1250		Thickness: 4 mm \| Width: 1,250 mm \| Length: 2,000-5,000 mm \| Core: Mineral-filled FR
ARCHITECKS FR 4T W1575		Thickness: 4 mm \| Width: 1,575 mm \| Length: 2,000-5,000 mm \| Core: Mineral-filled FR

Composite PanelsHongseong Industrial

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

ARCHITECKS FR Fire-Retardant Aluminium Composite Panel (4 mm)

Brand Hongseong Industrial·Composite Panels

Available part numbers (3)

ARCHITECKS FR 4T W1020, ARCHITECKS FR 4T W1250, ARCHITECKS FR 4T W1575

How to order

Send the Hongseong Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ARCHITECKS FR 4T W1020	Thickness: 4 mm \| Width: 1,020 mm \| Length: 2,000-5,000 mm \| Core: Mineral-filled FR
	ARCHITECKS FR 4T W1250	Thickness: 4 mm \| Width: 1,250 mm \| Length: 2,000-5,000 mm \| Core: Mineral-filled FR
	ARCHITECKS FR 4T W1575	Thickness: 4 mm \| Width: 1,575 mm \| Length: 2,000-5,000 mm \| Core: Mineral-filled FR
