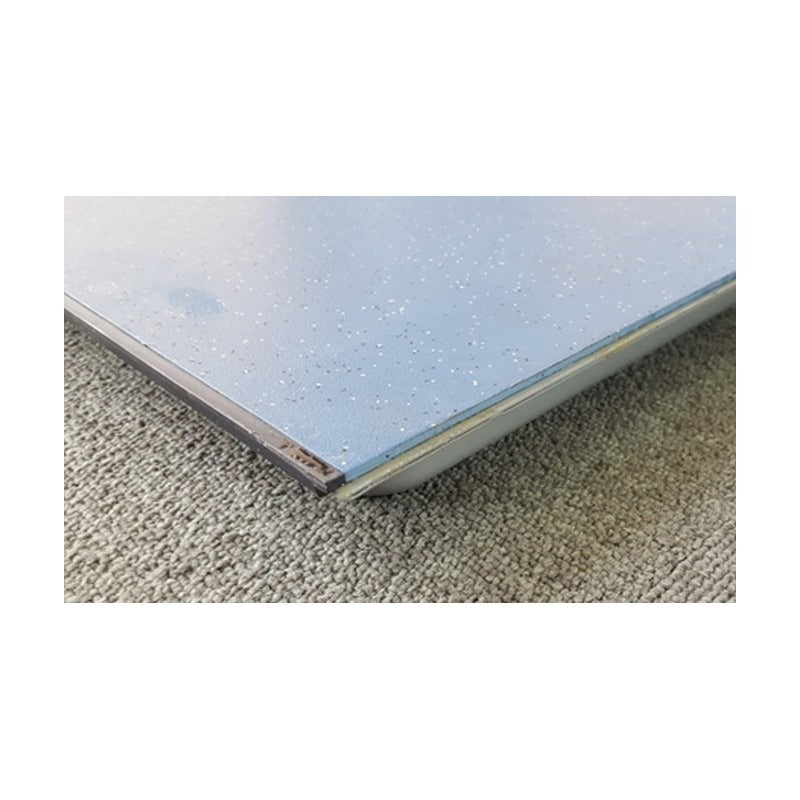

DeckDyne Steel Concrete Raised Floor (Heavy Duty, 1.5-2 t)

DeckDyne Steel Concrete is a heavy-traffic floating floor with a cementitious core designed for loads of 1.5 to 2 tonnes, part of Hongseong Industrial's DeckDyne raised floor range for ships and offshore units. A simple pedestal system allows fast installation within ship delivery schedules.

Key features

Epoxy-coated steel top skin and dimpled steel bottom skin with cementitious core
Designed for heavy loads of 1.5 to 2 tonnes
Fire performance meets BS standards and IMO FTP Code (Res. A.653)
Simple pedestal and stringer system for fast, high-volume installation
Pedestal models T1, T2 (steel) and T3 (aluminium + steel)

Specifications

Panel dimension	600 x 600 x 33 mm
Panel weight	44.5 kg/m2
Front skin	Epoxy-coated plain steel
Rear skin	Dimpled steel
Core	Cementitious
Finish	Conductive tiles or others
Pedestal height	80 to 1,000 mm
Electrical resistance	25,000 to 1,000,000 ohms floor to ground
Fire standards	BS, IMO FTP Code (Res. A.653)
Manufacturer	Hongseong Industrial Co., Ltd. (Korea)
Source	architecks.com m02_02_01

STEEL CONCRETE T1		Pedestal position: Middle \| Height: 80-600 mm \| Axial load: 27 kN \| Pedestal material: Steel
STEEL CONCRETE T2		Pedestal position: Perimeter \| Height: 80-600 mm \| Axial load: 27 kN \| Pedestal material: Steel
STEEL CONCRETE T3		Pedestal position: Middle \| Height: 150-1,000 mm \| Axial load: 63 kN \| Pedestal material: Aluminium + steel

Raised Floor SystemsHongseong Industrial

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DeckDyne Steel Concrete Raised Floor (Heavy Duty, 1.5-2 t)

Brand Hongseong Industrial·Raised Floor Systems

Available part numbers (3)

STEEL CONCRETE T1, STEEL CONCRETE T2, STEEL CONCRETE T3

How to order

Send the Hongseong Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	STEEL CONCRETE T1	Pedestal position: Middle \| Height: 80-600 mm \| Axial load: 27 kN \| Pedestal material: Steel
	STEEL CONCRETE T2	Pedestal position: Perimeter \| Height: 80-600 mm \| Axial load: 27 kN \| Pedestal material: Steel
	STEEL CONCRETE T3	Pedestal position: Middle \| Height: 150-1,000 mm \| Axial load: 63 kN \| Pedestal material: Aluminium + steel
