Embotecks Aluminium Corrugated Core Panel (4 / 6 mm)

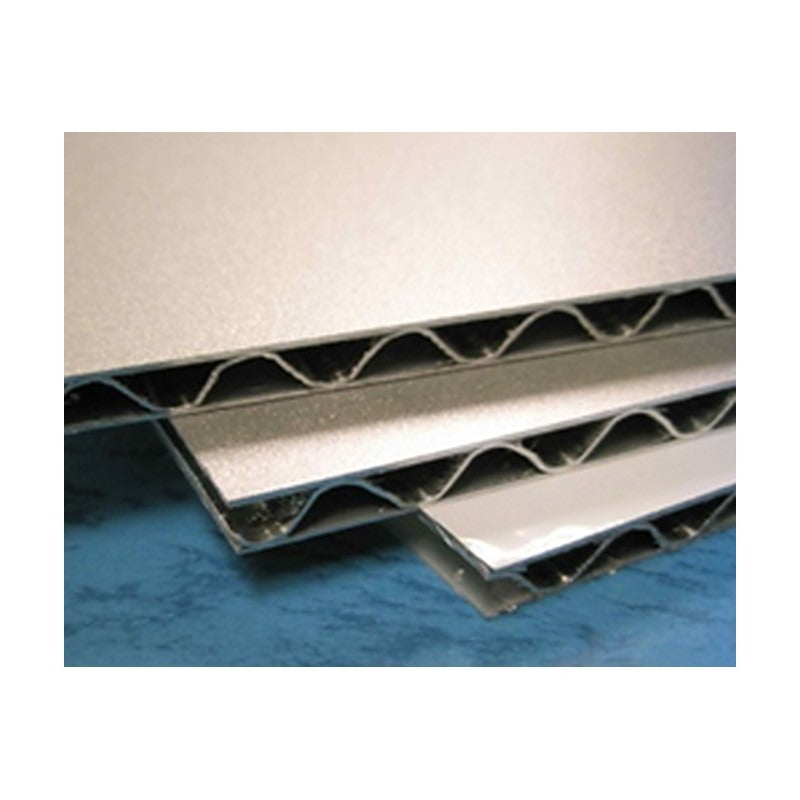

Embotecks bonds 0.5 mm aluminium skins to a corrugated aluminium core, giving better flatness and lower weight than standard composite panels while keeping their workability. It is used for building exteriors, ship furniture, railway car interiors and electronics.

Key features

Corrugated aluminium core for improved flatness and lightness versus solid-core ACP
Front skin with PVDF fluoropolymer paint in a wide range of colours and patterns
In-house film adhesive holds under frequent vibration and temperature change
Continuous-line production for uniform quality
Combines honeycomb-panel lightness with composite-panel workability
Applied to railway side, end and ceiling panels

Specifications

Construction	AL + AL corrugated core + AL
Skins	0.5 mm aluminium
Thickness	4 mm / 6 mm
Widths	1,020 / 1,250 mm (custom on request)
Length	2,800 to 5,000 mm
Rear skin	0.5 mm mill finish (service coating optional)
Standard colours (metallic)	HS-110MT Metallic White, HS-217MT Champagne, HS-211MT Silver, HS-355MT Turquoise, HS-285MT Medium Bronze, HS-311MT Exotic Silver, HS-353MT Jade, HS-327MT Gold, HS-411MT Bright Silver, HS-710MT Wine Red, HS-275MT Copper Penny, HS-511MT Gray Silver
Standard colours (solid)	HS-114 White, HS-123 Yellow, HS-170 Red, HS-111 Bone White, HS-122 Ivory, HS-165 Orange, HS-112 Ascot White, HS-134 Raw Gray, HS-157 Light Blue, HS-116 Concert White, HS-124 Sea Wolf, HS-148 Emerald Green, HS-132 Dove Gray, HS-136 Fashion Gray, HS-158 Signal Blue, HS-137 Dark Gray, HS-199 Black, HS-185 Rustic Bronze
Standard colours (special)	HS-039SP Granite, HS-015SP Chameleon, HS-017SP Anodizing, HS-033SP Dark Brown, HS-037SP Wood; custom colours on request
Source	architecks.com m02_01_03, m02_01_04, m02_03_02, m02_03_03

EMBOTECKS 4T W1020		Thickness: 4 mm \| Width: 1,020 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
EMBOTECKS 4T W1250		Thickness: 4 mm \| Width: 1,250 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
EMBOTECKS 6T W1020		Thickness: 6 mm \| Width: 1,020 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
EMBOTECKS 6T W1250		Thickness: 6 mm \| Width: 1,250 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium

Composite PanelsHongseong Industrial

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Embotecks Aluminium Corrugated Core Panel (4 / 6 mm)

Brand Hongseong Industrial·Composite Panels

Available part numbers (4)

EMBOTECKS 4T W1020, EMBOTECKS 4T W1250, EMBOTECKS 6T W1020, EMBOTECKS 6T W1250

How to order

Send the Hongseong Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

Colours & finishes

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EMBOTECKS 4T W1020	Thickness: 4 mm \| Width: 1,020 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
	EMBOTECKS 4T W1250	Thickness: 4 mm \| Width: 1,250 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
	EMBOTECKS 6T W1020	Thickness: 6 mm \| Width: 1,020 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
	EMBOTECKS 6T W1250	Thickness: 6 mm \| Width: 1,250 mm \| Length: 2,800-5,000 mm \| Core: Corrugated aluminium
