• Hongseong Floating Roof Seals (Shoe, Wiper, Foam, Secondary)
1 1

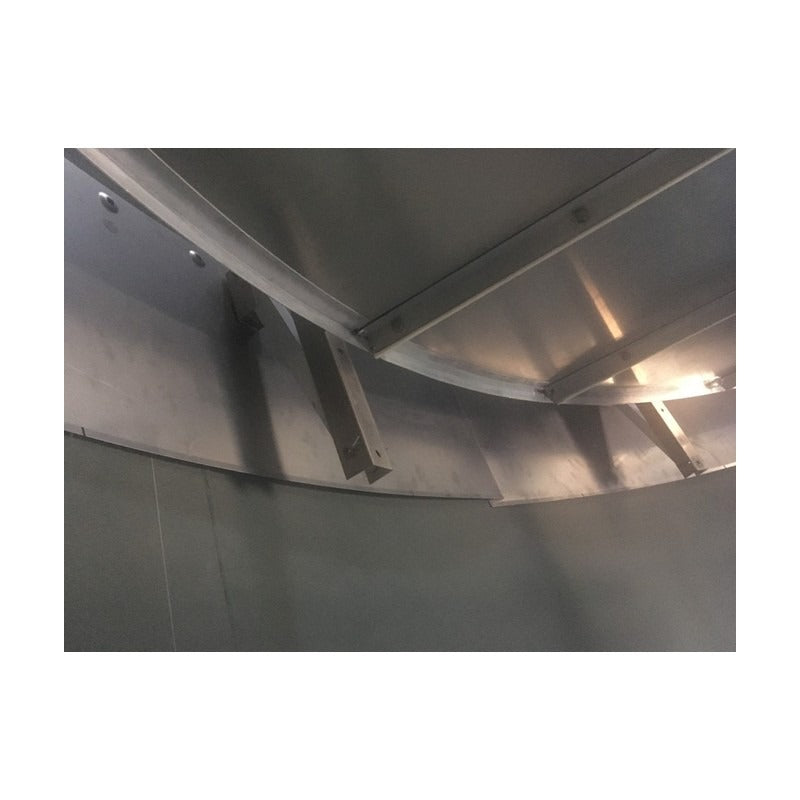

Hongseong Floating Roof Seals (Shoe, Wiper, Foam, Secondary)

Hongseong Floating Roof Seals (Shoe, Wiper, Foam, Secondary)

Hongseong floating roof seals close the rim gap between floating roof and tank shell, the final barrier against VOC emissions. Mechanical shoe, wiper, foam and secondary seals are offered. Each system is engineered per project for oil, gas and petrochemical storage tanks.

Key features

  • Mechanical shoe seals with stainless pusher-spring or pantograph mechanism track rough or deformed shells
  • Wiper seals (polyethylene) and foam seals (polyurethane/polyester) for tight, abrasion-resistant sealing
  • Secondary seals and weather shields to API 650
  • Seal materials NBR, EPDM, Viton, PTFE, polyurethane
  • Designed to fit Hongseong pontoon and full-contact IFRs

Specifications

Function Rim seal between floating roof and shell
Types Mechanical shoe, wiper, foam, secondary
Cover / seal materials PTFE, polyurethane, NBR, PVC, EPDM, Viton
Standard API 650 (secondary seals)
Testing Friction, wear and chemical resistance
Supply Engineered per tank
Manufacturer Hongseong Industrial Co., Ltd. (Korea)
Source architecks.com m02_05_01
SEAL MECHANICAL SHOE Type: Primary mechanical shoe | Mechanism: Pusher spring or pantograph | Cover: PTFE, PU, NBR, PVC
SEAL WIPER Type: Primary wiper (elastomer) | Material: Polyethylene compound | Use: Rim and other IFR parts
SEAL FOAM Type: Primary foam (elastomer) | Material: Polyurethane / polyester | Property: High abrasion resistance
SEAL SECONDARY Type: Secondary seal / weather shield | Style: Wiper or compression plate | Standard: API 650
Storage Tank EquipmentHongseong Industrial
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hongseong Floating Roof Seals (Shoe, Wiper, Foam, Secondary)

Brand Hongseong Industrial·Storage Tank Equipment

Available part numbers (4)

SEAL MECHANICAL SHOE, SEAL WIPER, SEAL FOAM, SEAL SECONDARY

How to order

Send the Hongseong Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SEAL MECHANICAL SHOEType: Primary mechanical shoe | Mechanism: Pusher spring or pantograph | Cover: PTFE, PU, NBR, PVC
SEAL WIPERType: Primary wiper (elastomer) | Material: Polyethylene compound | Use: Rim and other IFR parts
SEAL FOAMType: Primary foam (elastomer) | Material: Polyurethane / polyester | Property: High abrasion resistance
SEAL SECONDARYType: Secondary seal / weather shield | Style: Wiper or compression plate | Standard: API 650

Need a different model, or a part not listed here? Send us your parts list →
