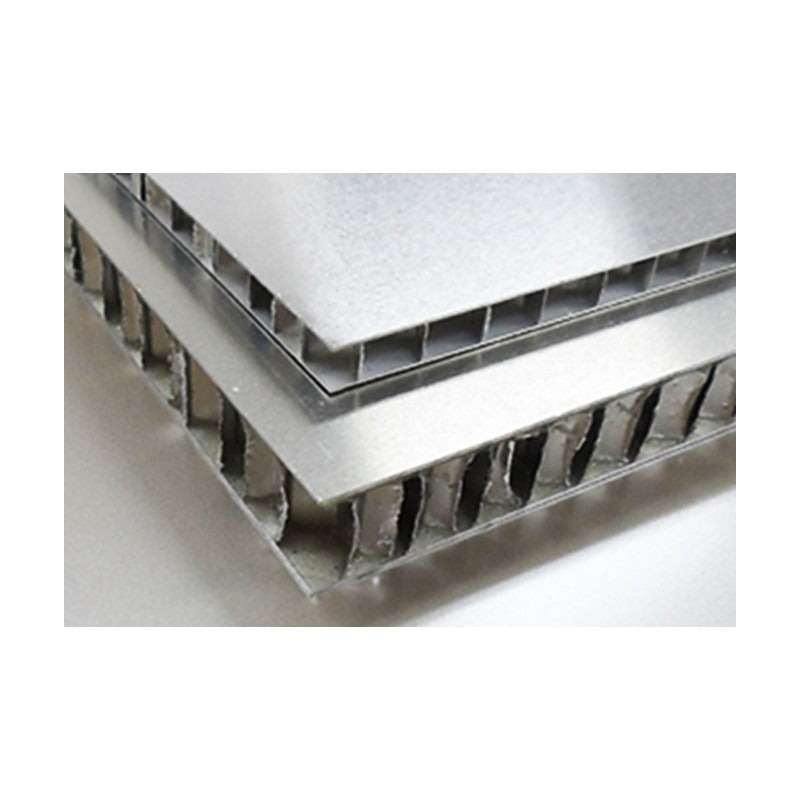

Hivecore HHC Aluminium Honeycomb Core (3/16"-1" Cell)

Hivecore HHC Aluminium Honeycomb Core (3/16"-1" Cell)

Hivecore is Hongseong's in-house aluminium hexagonal honeycomb core for structural sandwich panels in construction, rail, marine, aerospace, wind energy and furniture. It is normally sold as unexpanded slices and is also available as expanded sheet or block.

Key features

  • Six standard cell sizes from 3/16" to 1"
  • Cell height 3 to 150 mm; expanded width up to 1,600 mm and length up to 5,000 mm
  • Perforated or non-perforated foil
  • Supplied unexpanded (UX), expanded (EX) or as block (BL)
  • Ordering code HHC-cell-foil(um)P/N-alloy-form, e.g. HHC-1/4"-60N-3003-UX

Specifications

Material Aluminium foil (e.g. 3003 alloy)
Cell sizes 3/16", 1/4", 3/8", 1/2", 3/4", 1"
Cell height (T) 3.0 to 150 mm
Width (W) 500 to 1,600 mm (1,300 mm standard)
Length (L) 1,000 to 5,000 mm (4,000 mm standard)
Option Perforated / non-perforated
Supply form UX unexpanded slice, EX expanded sheet, BL block
Notation HHC-cell-foil thickness+P/N-alloy-form
Note Sizes are after expansion
Manufacturer Hongseong Industrial Co., Ltd. (Korea)
Source architecks.com m02_03_06
HHC-3/16IN Cell size: 3/16" (4.76 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-1/4IN Cell size: 1/4" (6.35 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-3/8IN Cell size: 3/8" (9.53 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-1/2IN Cell size: 1/2" (12.50 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-3/4IN Cell size: 3/4" (19.00 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-1IN Cell size: 1" (25.4 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
Honeycomb CoreHongseong Industrial
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hivecore HHC Aluminium Honeycomb Core (3/16"-1" Cell)

Brand Hongseong Industrial·Honeycomb Core

Available part numbers (6)

HHC-3/16IN, HHC-1/4IN, HHC-3/8IN, HHC-1/2IN, HHC-3/4IN, HHC-1IN

How to order

Send the Hongseong Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HHC-3/16INCell size: 3/16" (4.76 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-1/4INCell size: 1/4" (6.35 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-3/8INCell size: 3/8" (9.53 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-1/2INCell size: 1/2" (12.50 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-3/4INCell size: 3/4" (19.00 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
HHC-1INCell size: 1" (25.4 mm) | Height: 3.0-150 mm | Width: 500-1,600 mm (1,300 std) | Length: 1,000-5,000 mm (4,000 std)
