Hivetecks Aluminium Honeycomb Panel (6-100 mm, Building Facade)

Hivetecks Aluminium Honeycomb Panel (6-100 mm, Building Facade)

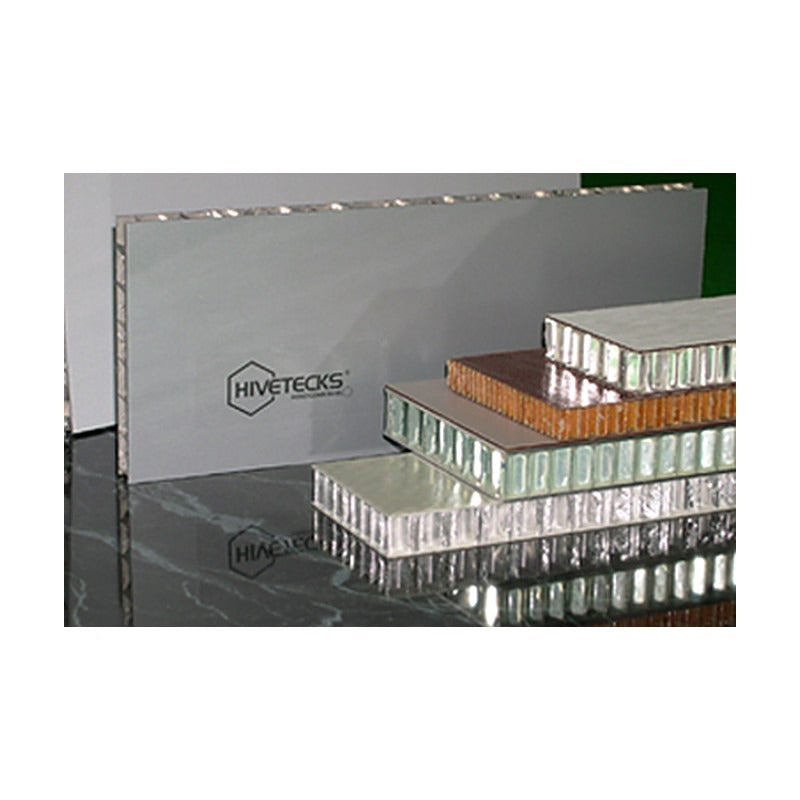

Hivetecks is Hongseong Industrial's aluminium honeycomb panel, with metal skins bonded to an aluminium honeycomb core for the best stiffness-to-weight ratio among composite panels. It is produced on Korea's first and only continuous honeycomb panel line for uniform quality.

Key features

  • Aluminium honeycomb core gives excellent flatness and very low weight
  • Skins in aluminium or other metals (GI, stainless steel) for different applications
  • Alternative to plywood, urethane foam and solid aluminium or timber panels
  • In-house film-type adhesive for uniform, durable bonding
  • Continuous-line production for higher consistency than press-laminated panels
  • Used for building exteriors and in shipbuilding, railway, vehicle and aerospace applications

Specifications

Construction AL + AL honeycomb core + AL (other skins available)
Thickness 6 to 100 mm
Widths 1,020 / 1,250 / 1,575 mm (custom on request)
Length 2,800 to 5,000 mm
Cell sizes 1/4", 3/8", 1/2", 3/4"
Rear skin Same material as front skin recommended
Certification PSB (Hivetecks)
Standard colours (metallic) HS-110MT Metallic White, HS-217MT Champagne, HS-211MT Silver, HS-355MT Turquoise, HS-285MT Medium Bronze, HS-311MT Exotic Silver, HS-353MT Jade, HS-327MT Gold, HS-411MT Bright Silver, HS-710MT Wine Red, HS-275MT Copper Penny, HS-511MT Gray Silver
Standard colours (solid) HS-114 White, HS-123 Yellow, HS-170 Red, HS-111 Bone White, HS-122 Ivory, HS-165 Orange, HS-112 Ascot White, HS-134 Raw Gray, HS-157 Light Blue, HS-116 Concert White, HS-124 Sea Wolf, HS-148 Emerald Green, HS-132 Dove Gray, HS-136 Fashion Gray, HS-158 Signal Blue, HS-137 Dark Gray, HS-199 Black, HS-185 Rustic Bronze
Standard colours (special) HS-039SP Granite, HS-015SP Chameleon, HS-017SP Anodizing, HS-033SP Dark Brown, HS-037SP Wood; custom colours on request
Source architecks.com m02_01_02, m02_01_04
HIVETECKS 1/4IN-CELL W1020 Cell size: 1/4" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/4IN-CELL W1250 Cell size: 1/4" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/4IN-CELL W1575 Cell size: 1/4" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/8IN-CELL W1020 Cell size: 3/8" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/8IN-CELL W1250 Cell size: 3/8" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/8IN-CELL W1575 Cell size: 3/8" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/2IN-CELL W1020 Cell size: 1/2" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/2IN-CELL W1250 Cell size: 1/2" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/2IN-CELL W1575 Cell size: 1/2" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/4IN-CELL W1020 Cell size: 3/4" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/4IN-CELL W1250 Cell size: 3/4" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/4IN-CELL W1575 Cell size: 3/4" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
Honeycomb PanelsHongseong Industrial
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hivetecks Aluminium Honeycomb Panel (6-100 mm, Building Facade)

Brand Hongseong Industrial·Honeycomb Panels

Available part numbers (12)

HIVETECKS 1/4IN-CELL W1020, HIVETECKS 1/4IN-CELL W1250, HIVETECKS 1/4IN-CELL W1575, HIVETECKS 3/8IN-CELL W1020, HIVETECKS 3/8IN-CELL W1250, HIVETECKS 3/8IN-CELL W1575, HIVETECKS 1/2IN-CELL W1020, HIVETECKS 1/2IN-CELL W1250, HIVETECKS 1/2IN-CELL W1575, HIVETECKS 3/4IN-CELL W1020 + 2 more — see full table ↓

How to order

Send the Hongseong Industrial part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

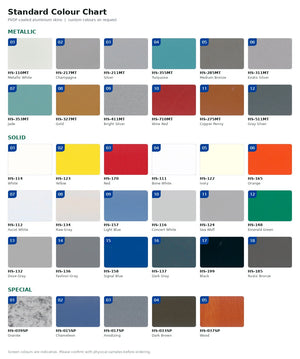

Colours & finishes
Open full size ↗
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HIVETECKS 1/4IN-CELL W1020Cell size: 1/4" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/4IN-CELL W1250Cell size: 1/4" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/4IN-CELL W1575Cell size: 1/4" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/8IN-CELL W1020Cell size: 3/8" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/8IN-CELL W1250Cell size: 3/8" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/8IN-CELL W1575Cell size: 3/8" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/2IN-CELL W1020Cell size: 1/2" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/2IN-CELL W1250Cell size: 1/2" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 1/2IN-CELL W1575Cell size: 1/2" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/4IN-CELL W1020Cell size: 3/4" | Width: 1,020 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/4IN-CELL W1250Cell size: 3/4" | Width: 1,250 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
HIVETECKS 3/4IN-CELL W1575Cell size: 3/4" | Width: 1,575 mm | Thickness: 6-100 mm | Length: 2,800-5,000 mm
