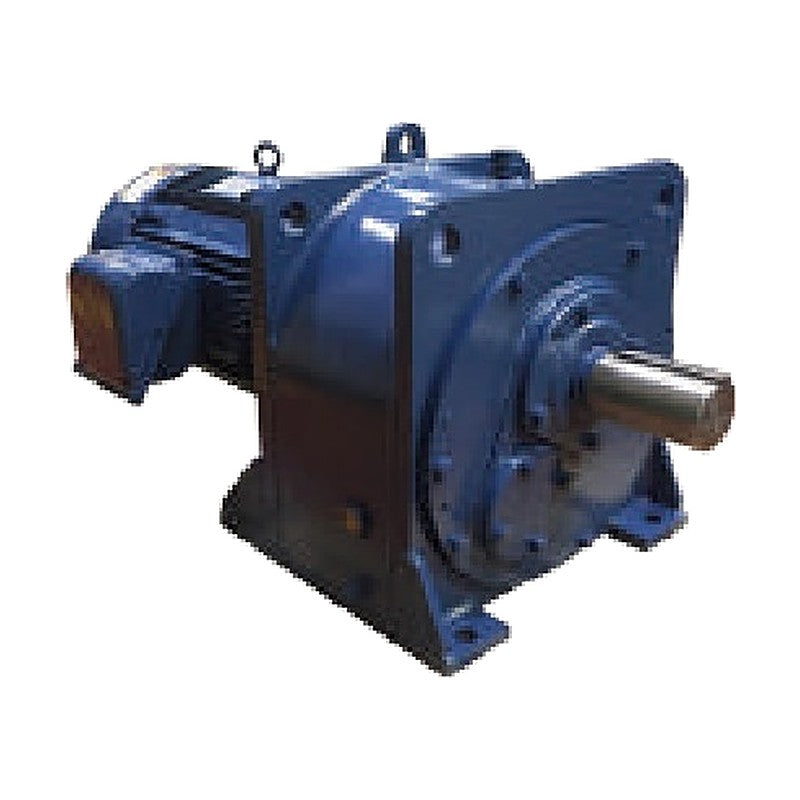

Hyosung F Series Helical Geared Motor, 5.5-160 kW

Hyosung F Series Helical Geared Motor, 5.5-160 kW

Oil-lubricated helical geared motors from 5.5 to 160 kW with ratios 1/5 to 1/30 in horizontal, vertical, IEC-flange and line-power versions.

Key features

  • Helical gear type with oil lubrication
  • Service factor 1.4-2.0
  • Fig. 1 (FHB/FVB) for 5.5-15 kW, Fig. 2 (FHM/FVM) for 18.5 kW and above

Specifications

Motor 4-pole (4-6P), 50/60 Hz
Selection basis 60 Hz, 4P
Gear type Helical
Power range 5.5-160 kW
Ratio range 1/5-1/30
Lubrication Oil
Service factor 1.4-2.0
FHM Mounting: Horizontal, foot, integrated motor | Power: 18.5-160 kW | Ratio: 1/5-1/30 | Weight: 442-2950 kg
FVM Mounting: Vertical, flange, integrated motor | Power: 18.5-90 kW | Ratio: 1/5-1/30 | Weight: 502-1458 kg
FHL Mounting: Horizontal, line power (input shaft) | Power: 18.5-90 kW | Ratio: 1/5-1/30
Geared MotorsHyosung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung F Series Helical Geared Motor, 5.5-160 kW

Brand Hyosung·Geared Motors

Available part numbers (3)

FHM, FVM, FHL

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FHMMounting: Horizontal, foot, integrated motor | Power: 18.5-160 kW | Ratio: 1/5-1/30 | Weight: 442-2950 kg
FVMMounting: Vertical, flange, integrated motor | Power: 18.5-90 kW | Ratio: 1/5-1/30 | Weight: 502-1458 kg
FHLMounting: Horizontal, line power (input shaft) | Power: 18.5-90 kW | Ratio: 1/5-1/30
