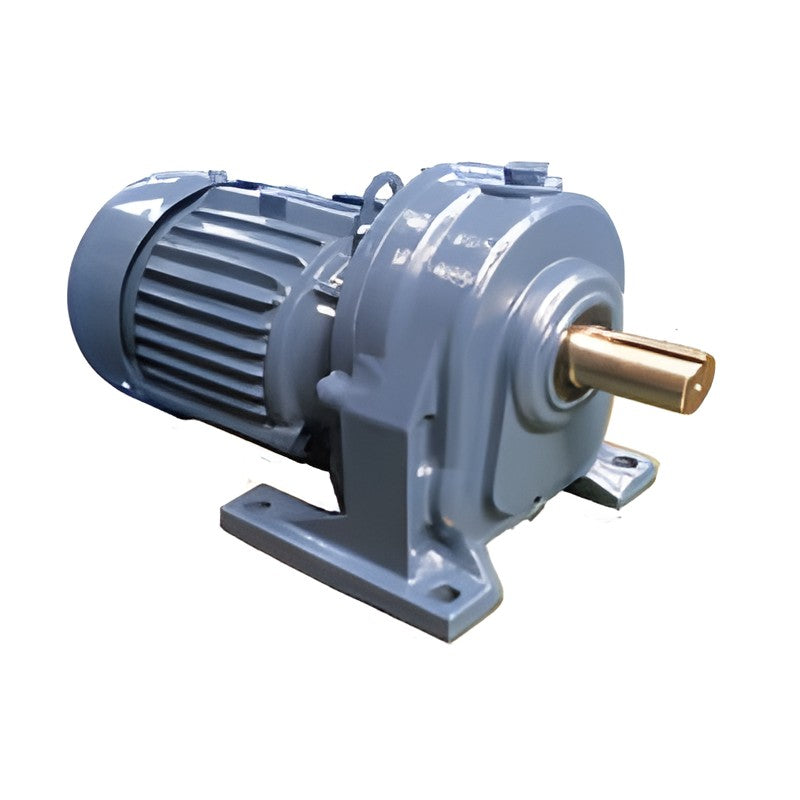

Hyosung F1 Series Helical Geared Motor, 0.2-3.7 kW

Hyosung F1 Series Helical Geared Motor, 0.2-3.7 kW

Compact grease-lubricated helical geared motors from 0.2 to 3.7 kW with ratios 1/5 to 1/120, in horizontal, vertical, IEC-flange and line-power (input shaft) versions.

Key features

  • Optimised, ground and polished gears for low noise and up to 97 % efficiency
  • Fully sealed grease lubrication allows any mounting position
  • Grease life of 20,000 maintenance-free hours
  • Standard parts held semi-finished for prompt delivery

Specifications

Motor 4-pole (4-6P), 50/60 Hz
Selection basis 60 Hz, 4P
Gear type Helical
Power range 0.2-3.7 kW
Ratio range 1/5-1/120
Lubrication Grease
Service factor 1.4-2.0
Unit sizes 08, 10, 13, 15, 17, 18, 20, 23, 27
F1HM08 Mounting: Horizontal, integrated motor | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 9 kg
F1HM10 Mounting: Horizontal, integrated motor | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 11 kg
F1HM13 Mounting: Horizontal, integrated motor | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 41 kg
F1HM15 Mounting: Horizontal, integrated motor | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 52-53 kg
F1HM17 Mounting: Horizontal, integrated motor | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 62-81 kg
F1HM18 Mounting: Horizontal, integrated motor | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 90-92 kg
F1HM20 Mounting: Horizontal, integrated motor | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 108-113 kg
F1HM23 Mounting: Horizontal, integrated motor | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 116-137 kg
F1HM27 Mounting: Horizontal, integrated motor | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 163-168 kg
F1VM08 Mounting: Vertical, integrated motor | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 9 kg
F1VM10 Mounting: Vertical, integrated motor | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 11 kg
F1VM13 Mounting: Vertical, integrated motor | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 41 kg
F1VM15 Mounting: Vertical, integrated motor | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 53-54 kg
F1VM17 Mounting: Vertical, integrated motor | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 74-93 kg
F1VM18 Mounting: Vertical, integrated motor | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 94-96 kg
F1VM20 Mounting: Vertical, integrated motor | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 112-117 kg
F1VM23 Mounting: Vertical, integrated motor | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 121-142 kg
F1VM27 Mounting: Vertical, integrated motor | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 174-179 kg
F1HF08 Mounting: Horizontal, IEC flange | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1HF10 Mounting: Horizontal, IEC flange | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1HF13 Mounting: Horizontal, IEC flange | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 19 kg
F1HF15 Mounting: Horizontal, IEC flange | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 30-33 kg
F1HF17 Mounting: Horizontal, IEC flange | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 43-46 kg
F1HF18 Mounting: Horizontal, IEC flange | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 57-58 kg
F1HF20 Mounting: Horizontal, IEC flange | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 78-80 kg
F1HF23 Mounting: Horizontal, IEC flange | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 102-106 kg
F1HF27 Mounting: Horizontal, IEC flange | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 142-144 kg
F1VF08 Mounting: Vertical, IEC flange | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1VF10 Mounting: Vertical, IEC flange | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1VF13 Mounting: Vertical, IEC flange | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 17 kg
F1VF15 Mounting: Vertical, IEC flange | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 30-33 kg
F1VF17 Mounting: Vertical, IEC flange | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 53-56 kg
F1VF18 Mounting: Vertical, IEC flange | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 59-60 kg
F1VF20 Mounting: Vertical, IEC flange | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 79-81 kg
F1VF23 Mounting: Vertical, IEC flange | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 102-107 kg
F1VF27 Mounting: Vertical, IEC flange | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 148-149 kg
F1HL08 Mounting: Horizontal, line power (input shaft) | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1HL10 Mounting: Horizontal, line power (input shaft) | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1HL13 Mounting: Horizontal, line power (input shaft) | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 19 kg
F1HL15 Mounting: Horizontal, line power (input shaft) | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 25-33 kg
F1HL17 Mounting: Horizontal, line power (input shaft) | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 40-43 kg
F1HL18 Mounting: Horizontal, line power (input shaft) | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 54-55 kg
F1HL20 Mounting: Horizontal, line power (input shaft) | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 75-77 kg
F1HL23 Mounting: Horizontal, line power (input shaft) | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 99-103 kg
F1HL27 Mounting: Horizontal, line power (input shaft) | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 139-141 kg
F1VL08 Mounting: Vertical, line power (input shaft) | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1VL10 Mounting: Vertical, line power (input shaft) | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1VL13 Mounting: Vertical, line power (input shaft) | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 16 kg
F1VL15 Mounting: Vertical, line power (input shaft) | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 29-30 kg
F1VL17 Mounting: Vertical, line power (input shaft) | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 50-53 kg
F1VL18 Mounting: Vertical, line power (input shaft) | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 56-57 kg
F1VL20 Mounting: Vertical, line power (input shaft) | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 76-78 kg
F1VL23 Mounting: Vertical, line power (input shaft) | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 100-104 kg
F1VL27 Mounting: Vertical, line power (input shaft) | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 144-146 kg
Geared MotorsHyosung
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung F1 Series Helical Geared Motor, 0.2-3.7 kW

Brand Hyosung·Geared Motors

Available part numbers (54)

F1HM08, F1HM10, F1HM13, F1HM15, F1HM17, F1HM18, F1HM20, F1HM23, F1HM27, F1VM08 + 44 more — see full table ↓

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F1HM08Mounting: Horizontal, integrated motor | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 9 kg
F1HM10Mounting: Horizontal, integrated motor | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 11 kg
F1HM13Mounting: Horizontal, integrated motor | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 41 kg
F1HM15Mounting: Horizontal, integrated motor | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 52-53 kg
F1HM17Mounting: Horizontal, integrated motor | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 62-81 kg
F1HM18Mounting: Horizontal, integrated motor | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 90-92 kg
F1HM20Mounting: Horizontal, integrated motor | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 108-113 kg
F1HM23Mounting: Horizontal, integrated motor | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 116-137 kg
F1HM27Mounting: Horizontal, integrated motor | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 163-168 kg
F1VM08Mounting: Vertical, integrated motor | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 9 kg
F1VM10Mounting: Vertical, integrated motor | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 11 kg
F1VM13Mounting: Vertical, integrated motor | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 41 kg
F1VM15Mounting: Vertical, integrated motor | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 53-54 kg
F1VM17Mounting: Vertical, integrated motor | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 74-93 kg
F1VM18Mounting: Vertical, integrated motor | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 94-96 kg
F1VM20Mounting: Vertical, integrated motor | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 112-117 kg
F1VM23Mounting: Vertical, integrated motor | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 121-142 kg
F1VM27Mounting: Vertical, integrated motor | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 174-179 kg
F1HF08Mounting: Horizontal, IEC flange | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1HF10Mounting: Horizontal, IEC flange | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1HF13Mounting: Horizontal, IEC flange | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 19 kg
F1HF15Mounting: Horizontal, IEC flange | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 30-33 kg
F1HF17Mounting: Horizontal, IEC flange | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 43-46 kg
F1HF18Mounting: Horizontal, IEC flange | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 57-58 kg
F1HF20Mounting: Horizontal, IEC flange | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 78-80 kg
F1HF23Mounting: Horizontal, IEC flange | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 102-106 kg
F1HF27Mounting: Horizontal, IEC flange | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 142-144 kg
F1VF08Mounting: Vertical, IEC flange | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1VF10Mounting: Vertical, IEC flange | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1VF13Mounting: Vertical, IEC flange | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 17 kg
F1VF15Mounting: Vertical, IEC flange | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 30-33 kg
F1VF17Mounting: Vertical, IEC flange | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 53-56 kg
F1VF18Mounting: Vertical, IEC flange | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 59-60 kg
F1VF20Mounting: Vertical, IEC flange | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 79-81 kg
F1VF23Mounting: Vertical, IEC flange | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 102-107 kg
F1VF27Mounting: Vertical, IEC flange | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 148-149 kg
F1HL08Mounting: Horizontal, line power (input shaft) | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1HL10Mounting: Horizontal, line power (input shaft) | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1HL13Mounting: Horizontal, line power (input shaft) | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 19 kg
F1HL15Mounting: Horizontal, line power (input shaft) | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 25-33 kg
F1HL17Mounting: Horizontal, line power (input shaft) | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 40-43 kg
F1HL18Mounting: Horizontal, line power (input shaft) | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 54-55 kg
F1HL20Mounting: Horizontal, line power (input shaft) | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 75-77 kg
F1HL23Mounting: Horizontal, line power (input shaft) | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 99-103 kg
F1HL27Mounting: Horizontal, line power (input shaft) | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 139-141 kg
F1VL08Mounting: Vertical, line power (input shaft) | Unit size: 08 | Power and ratio: 0.2 kW 1/5-1/100 | Weight: 5.5 kg
F1VL10Mounting: Vertical, line power (input shaft) | Unit size: 10 | Power and ratio: 0.4 kW 1/5-1/100 | Weight: 7.5 kg
F1VL13Mounting: Vertical, line power (input shaft) | Unit size: 13 | Power and ratio: 0.75 kW 1/5-1/30 | Weight: 16 kg
F1VL15Mounting: Vertical, line power (input shaft) | Unit size: 15 | Power and ratio: 0.75 kW 1/40-1/120; 1.5 kW 1/5-1/30 | Weight: 29-30 kg
F1VL17Mounting: Vertical, line power (input shaft) | Unit size: 17 | Power and ratio: 1.5 kW 1/40-1/120; 2.2 kW 1/5-1/30; 3.7 kW 1/5-1/20 | Weight: 50-53 kg
F1VL18Mounting: Vertical, line power (input shaft) | Unit size: 18 | Power and ratio: 2.2 kW 1/40-1/100; 3.7 kW 1/25-1/30 | Weight: 56-57 kg
F1VL20Mounting: Vertical, line power (input shaft) | Unit size: 20 | Power and ratio: 2.2 kW 1/60-1/120; 3.7 kW 1/40-1/60 | Weight: 76-78 kg
F1VL23Mounting: Vertical, line power (input shaft) | Unit size: 23 | Power and ratio: 1.5 kW 1/100-1/120; 2.2 kW 1/75-1/90; 3.7 kW 1/60 | Weight: 100-104 kg
F1VL27Mounting: Vertical, line power (input shaft) | Unit size: 27 | Power and ratio: 2.2 kW 1/100-1/120; 3.7 kW 1/75-1/90 | Weight: 144-146 kg

Need a different model, or a part not listed here? Send us your parts list →
