• Hyosung F2 Series Helical Geared Motor, 5.5-15 kW
1 1

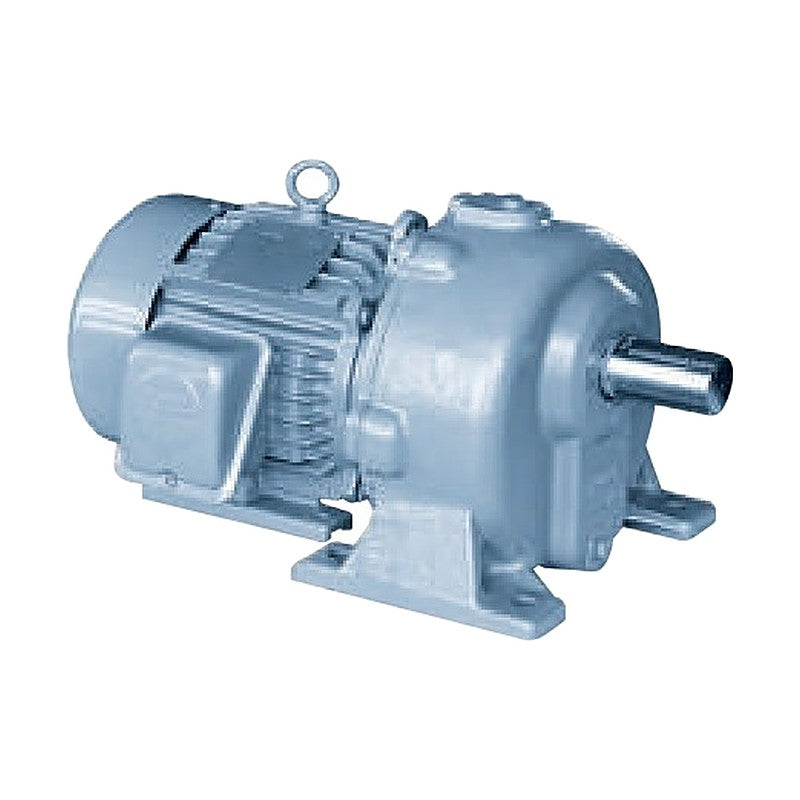

Hyosung F2 Series Helical Geared Motor, 5.5-15 kW

Hyosung F2 Series Helical Geared Motor, 5.5-15 kW

Helical geared motors from 5.5 to 15 kW with ratios 1/5 to 1/30 for horizontal or vertical mounting.

Key features

  • Grease lubrication on smaller units (5.5 kW 1/5 to 7.5 kW 1/20); oil lubrication on larger units
  • Service factor 1.4-2.0

Specifications

Motor 4-pole (4-6P), 50/60 Hz
Selection basis 60 Hz, 4P
Gear type Helical
Power range 5.5-15 kW
Ratio range 1/5-1/30
Lubrication Grease or oil
Service factor 1.4-2.0
F2H Mounting: Horizontal, foot | Power: 5.5, 7.5, 11, 15 kW | Ratio: 1/5-1/30 | Output speed: 350-58.3 rpm | Weight: 92-257 kg
F2V Mounting: Vertical, flange | Power: 5.5, 7.5, 11, 15 kW | Ratio: 1/5-1/30 | Output speed: 350-58.3 rpm | Weight: 127-273 kg
Geared MotorsHyosung
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung F2 Series Helical Geared Motor, 5.5-15 kW

Brand Hyosung·Geared Motors

Available part numbers (2)

F2H, F2V

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F2HMounting: Horizontal, foot | Power: 5.5, 7.5, 11, 15 kW | Ratio: 1/5-1/30 | Output speed: 350-58.3 rpm | Weight: 92-257 kg
F2VMounting: Vertical, flange | Power: 5.5, 7.5, 11, 15 kW | Ratio: 1/5-1/30 | Output speed: 350-58.3 rpm | Weight: 127-273 kg

Need a different model, or a part not listed here? Send us your parts list →
