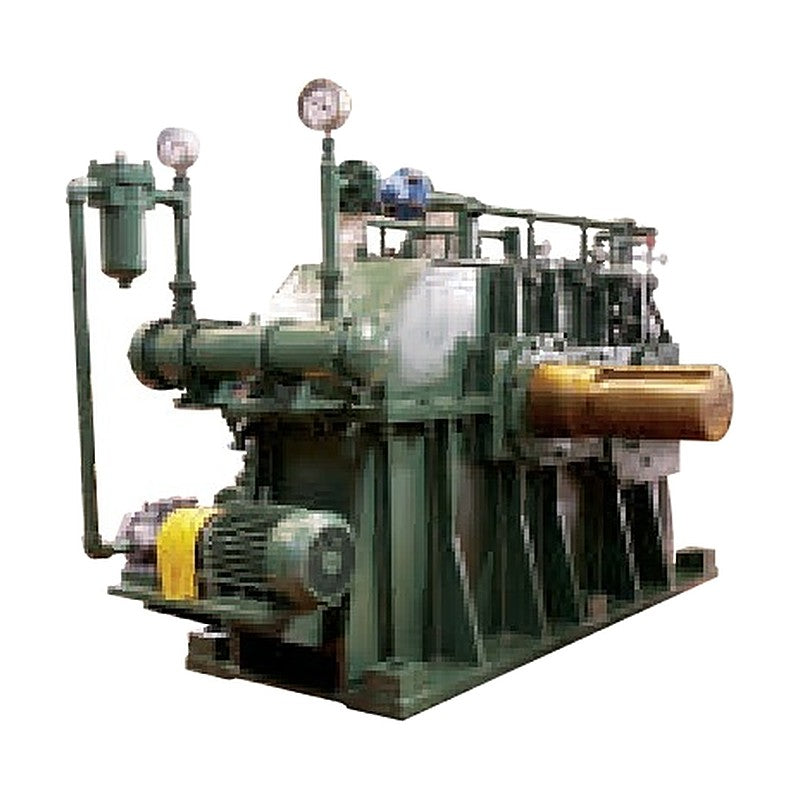

Hyosung SH Parallel Shaft Gear Box

Hyosung SH Parallel Shaft Gear Box

Oil-lubricated parallel-shaft helical gear reducers in single to quadruple reduction with ratios up to 500 and output torque up to 40,000 kgf·m.

Key features

  • Mounting arrangements: BM solid shaft base mounted, HM hollow shaft base mounted, SM hollow shaft shaft mounted
  • Output shaft: solid, hollow with shrink disk, or hollow with keyway
  • Options: special shaft extensions, lubrication systems, auxiliary (fan) cooling, sump heaters, bedplates, couplings, backstops, clutches and brakes

Specifications

Gear type Helical, parallel shaft
Ratio range 2-500
Max. output torque 40,000 kgf·m
Lubrication Oil
Input speed basis 900, 1200, 1800 rpm
SHA-12 Type: SHA | Reduction: Single | Unit size: 12 | Nominal ratio: 2-6.3
SHA-16 Type: SHA | Reduction: Single | Unit size: 16 | Nominal ratio: 2-6.3
SHA-18 Type: SHA | Reduction: Single | Unit size: 18 | Nominal ratio: 2-6.3
SHA-22 Type: SHA | Reduction: Single | Unit size: 22 | Nominal ratio: 2-6.3
SHA-26 Type: SHA | Reduction: Single | Unit size: 26 | Nominal ratio: 2-6.3
SHA-32 Type: SHA | Reduction: Single | Unit size: 32 | Nominal ratio: 2-6.3
SHA-38 Type: SHA | Reduction: Single | Unit size: 38 | Nominal ratio: 2-6.3
SHA-45 Type: SHA | Reduction: Single | Unit size: 45 | Nominal ratio: 2-6.3
SHA-50 Type: SHA | Reduction: Single | Unit size: 50 | Nominal ratio: 2-6.3
SHB-18 Type: SHB | Reduction: Double | Unit size: 18 | Nominal ratio: 7.1-28
SHB-22 Type: SHB | Reduction: Double | Unit size: 22 | Nominal ratio: 7.1-28
SHB-26 Type: SHB | Reduction: Double | Unit size: 26 | Nominal ratio: 7.1-28
SHB-32 Type: SHB | Reduction: Double | Unit size: 32 | Nominal ratio: 7.1-28
SHB-38 Type: SHB | Reduction: Double | Unit size: 38 | Nominal ratio: 7.1-28
SHB-45 Type: SHB | Reduction: Double | Unit size: 45 | Nominal ratio: 7.1-28
SHB-50 Type: SHB | Reduction: Double | Unit size: 50 | Nominal ratio: 7.1-28
SHB-56 Type: SHB | Reduction: Double | Unit size: 56 | Nominal ratio: 7.1-28
SHB-61 Type: SHB | Reduction: Double | Unit size: 61 | Nominal ratio: 7.1-28
SHB-66 Type: SHB | Reduction: Double | Unit size: 66 | Nominal ratio: 7.1-28
SHB-71 Type: SHB | Reduction: Double | Unit size: 71 | Nominal ratio: 7.1-28
SHC-18 Type: SHC | Reduction: Triple | Unit size: 18 | Nominal ratio: 28-112
SHC-22 Type: SHC | Reduction: Triple | Unit size: 22 | Nominal ratio: 28-112
SHC-26 Type: SHC | Reduction: Triple | Unit size: 26 | Nominal ratio: 28-112
SHC-32 Type: SHC | Reduction: Triple | Unit size: 32 | Nominal ratio: 28-112
SHC-38 Type: SHC | Reduction: Triple | Unit size: 38 | Nominal ratio: 28-112
SHC-45 Type: SHC | Reduction: Triple | Unit size: 45 | Nominal ratio: 28-112
SHC-50 Type: SHC | Reduction: Triple | Unit size: 50 | Nominal ratio: 28-112
SHC-56 Type: SHC | Reduction: Triple | Unit size: 56 | Nominal ratio: 28-112
SHC-61 Type: SHC | Reduction: Triple | Unit size: 61 | Nominal ratio: 28-112
SHC-66 Type: SHC | Reduction: Triple | Unit size: 66 | Nominal ratio: 28-112
SHC-71 Type: SHC | Reduction: Triple | Unit size: 71 | Nominal ratio: 28-112
SHD-22 Type: SHD | Reduction: Quadruple | Unit size: 22 | Nominal ratio: 112-500
SHD-26 Type: SHD | Reduction: Quadruple | Unit size: 26 | Nominal ratio: 112-500
SHD-32 Type: SHD | Reduction: Quadruple | Unit size: 32 | Nominal ratio: 112-500
SHD-38 Type: SHD | Reduction: Quadruple | Unit size: 38 | Nominal ratio: 112-500
SHD-45 Type: SHD | Reduction: Quadruple | Unit size: 45 | Nominal ratio: 112-500
SHD-50 Type: SHD | Reduction: Quadruple | Unit size: 50 | Nominal ratio: 112-500
SHD-56 Type: SHD | Reduction: Quadruple | Unit size: 56 | Nominal ratio: 112-500
SHD-61 Type: SHD | Reduction: Quadruple | Unit size: 61 | Nominal ratio: 112-500
SHD-66 Type: SHD | Reduction: Quadruple | Unit size: 66 | Nominal ratio: 112-500
SHD-71 Type: SHD | Reduction: Quadruple | Unit size: 71 | Nominal ratio: 112-500
Gear ReducersHyosung
41 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Hyosung SH Parallel Shaft Gear Box

Brand Hyosung·Gear Reducers

Available part numbers (41)

SHA-12, SHA-16, SHA-18, SHA-22, SHA-26, SHA-32, SHA-38, SHA-45, SHA-50, SHB-18 + 31 more — see full table ↓

How to order

Send the Hyosung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHA-12Type: SHA | Reduction: Single | Unit size: 12 | Nominal ratio: 2-6.3
SHA-16Type: SHA | Reduction: Single | Unit size: 16 | Nominal ratio: 2-6.3
SHA-18Type: SHA | Reduction: Single | Unit size: 18 | Nominal ratio: 2-6.3
SHA-22Type: SHA | Reduction: Single | Unit size: 22 | Nominal ratio: 2-6.3
SHA-26Type: SHA | Reduction: Single | Unit size: 26 | Nominal ratio: 2-6.3
SHA-32Type: SHA | Reduction: Single | Unit size: 32 | Nominal ratio: 2-6.3
SHA-38Type: SHA | Reduction: Single | Unit size: 38 | Nominal ratio: 2-6.3
SHA-45Type: SHA | Reduction: Single | Unit size: 45 | Nominal ratio: 2-6.3
SHA-50Type: SHA | Reduction: Single | Unit size: 50 | Nominal ratio: 2-6.3
SHB-18Type: SHB | Reduction: Double | Unit size: 18 | Nominal ratio: 7.1-28
SHB-22Type: SHB | Reduction: Double | Unit size: 22 | Nominal ratio: 7.1-28
SHB-26Type: SHB | Reduction: Double | Unit size: 26 | Nominal ratio: 7.1-28
SHB-32Type: SHB | Reduction: Double | Unit size: 32 | Nominal ratio: 7.1-28
SHB-38Type: SHB | Reduction: Double | Unit size: 38 | Nominal ratio: 7.1-28
SHB-45Type: SHB | Reduction: Double | Unit size: 45 | Nominal ratio: 7.1-28
SHB-50Type: SHB | Reduction: Double | Unit size: 50 | Nominal ratio: 7.1-28
SHB-56Type: SHB | Reduction: Double | Unit size: 56 | Nominal ratio: 7.1-28
SHB-61Type: SHB | Reduction: Double | Unit size: 61 | Nominal ratio: 7.1-28
SHB-66Type: SHB | Reduction: Double | Unit size: 66 | Nominal ratio: 7.1-28
SHB-71Type: SHB | Reduction: Double | Unit size: 71 | Nominal ratio: 7.1-28
SHC-18Type: SHC | Reduction: Triple | Unit size: 18 | Nominal ratio: 28-112
SHC-22Type: SHC | Reduction: Triple | Unit size: 22 | Nominal ratio: 28-112
SHC-26Type: SHC | Reduction: Triple | Unit size: 26 | Nominal ratio: 28-112
SHC-32Type: SHC | Reduction: Triple | Unit size: 32 | Nominal ratio: 28-112
SHC-38Type: SHC | Reduction: Triple | Unit size: 38 | Nominal ratio: 28-112
SHC-45Type: SHC | Reduction: Triple | Unit size: 45 | Nominal ratio: 28-112
SHC-50Type: SHC | Reduction: Triple | Unit size: 50 | Nominal ratio: 28-112
SHC-56Type: SHC | Reduction: Triple | Unit size: 56 | Nominal ratio: 28-112
SHC-61Type: SHC | Reduction: Triple | Unit size: 61 | Nominal ratio: 28-112
SHC-66Type: SHC | Reduction: Triple | Unit size: 66 | Nominal ratio: 28-112
SHC-71Type: SHC | Reduction: Triple | Unit size: 71 | Nominal ratio: 28-112
SHD-22Type: SHD | Reduction: Quadruple | Unit size: 22 | Nominal ratio: 112-500
SHD-26Type: SHD | Reduction: Quadruple | Unit size: 26 | Nominal ratio: 112-500
SHD-32Type: SHD | Reduction: Quadruple | Unit size: 32 | Nominal ratio: 112-500
SHD-38Type: SHD | Reduction: Quadruple | Unit size: 38 | Nominal ratio: 112-500
SHD-45Type: SHD | Reduction: Quadruple | Unit size: 45 | Nominal ratio: 112-500
SHD-50Type: SHD | Reduction: Quadruple | Unit size: 50 | Nominal ratio: 112-500
SHD-56Type: SHD | Reduction: Quadruple | Unit size: 56 | Nominal ratio: 112-500
SHD-61Type: SHD | Reduction: Quadruple | Unit size: 61 | Nominal ratio: 112-500
SHD-66Type: SHD | Reduction: Quadruple | Unit size: 66 | Nominal ratio: 112-500
SHD-71Type: SHD | Reduction: Quadruple | Unit size: 71 | Nominal ratio: 112-500
