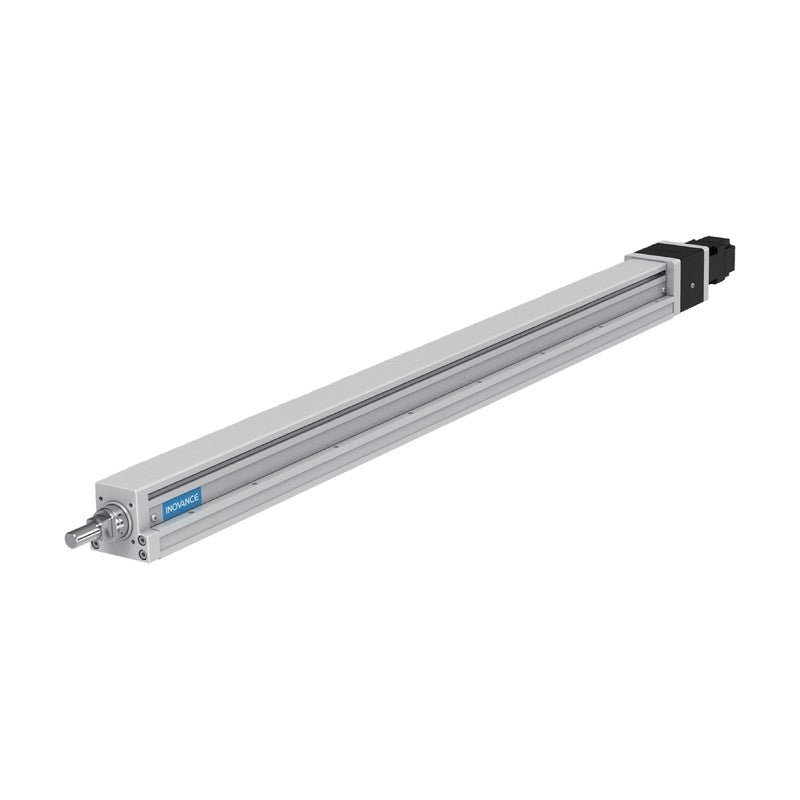

Inovance GY Series Track-Embedded Rod-Type Ball Screw Cylinder

Inovance GY Series Track-Embedded Rod-Type Ball Screw Cylinder

Inovance GY series track-embedded rod-type ball screw electric cylinder in 54 mm (GY5) and 82 mm (GY8) body widths.

Key features

  • C7 ground ball screw (dia. 12 mm GY5, dia. 16 mm GY8)
  • Repeatability +/-0.01 mm
  • Max. speed up to 1,000 mm/s with lead 20
  • Travel 50 to 600 mm (GY5) or 800 mm (GY8) in 50 mm steps
  • Four motor positions: direct, down, left and right
  • Pre-matched with Inovance SV660P / SV660N servo drives

Specifications

Series GY (track-embedded rod type)
Sizes GY5 (54 mm), GY8 (82 mm)
Repeatability +/-0.01 mm
Max. load (horizontal) GY5 30 kg, GY8 50 kg
Sensor (code fixed) N3: NPN, 3 sensors
Drive type (code fixed) VP: SV660P
Origin sensor SGY-NH (NPN) / SGY-PH (PNP)
Source Inovance Electric Cylinder Product Catalog (Actuator_EN), p. 270-279
GY5-2S50-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2S100-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2S150-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2S200-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2S250-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2S300-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2S350-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2S400-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2S450-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2S500-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2S550-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2S600-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-2D50-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2D100-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2D150-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2D200-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2D250-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2D300-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2D350-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2D400-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2D450-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2D500-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2D550-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2D600-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-2L50-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2L100-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2L150-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2L200-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2L250-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2L300-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2L350-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2L400-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2L450-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2L500-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2L550-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2L600-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-2R50-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2R100-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2R150-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2R200-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2R250-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2R300-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2R350-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2R400-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2R450-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2R500-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2R550-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2R600-N3-10-VP Model: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5S50-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5S100-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5S150-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5S200-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5S250-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5S300-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5S350-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5S400-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5S450-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5S500-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5S550-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5S600-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5D50-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5D100-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5D150-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5D200-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5D250-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5D300-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5D350-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5D400-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5D450-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5D500-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5D550-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5D600-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5L50-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5L100-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5L150-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5L200-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5L250-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5L300-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5L350-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5L400-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5L450-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5L500-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5L550-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5L600-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5R50-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5R100-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5R150-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5R200-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5R250-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5R300-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5R350-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5R400-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5R450-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5R500-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5R550-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5R600-N3-10-VP Model: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10S50-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10S100-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10S150-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10S200-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10S250-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10S300-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10S350-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10S400-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10S450-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10S500-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10S550-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10S600-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10D50-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10D100-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10D150-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10D200-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10D250-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10D300-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10D350-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10D400-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10D450-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10D500-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10D550-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10D600-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10L50-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10L100-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10L150-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10L200-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10L250-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10L300-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10L350-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10L400-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10L450-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10L500-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10L550-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10L600-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10R50-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10R100-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10R150-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10R200-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10R250-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10R300-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10R350-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10R400-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10R450-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10R500-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10R550-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10R600-N3-10-VP Model: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20S50-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20S100-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20S150-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20S200-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20S250-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20S300-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20S350-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20S400-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20S450-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20S500-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20S550-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20S600-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20D50-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20D100-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20D150-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20D200-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20D250-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20D300-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20D350-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20D400-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20D450-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20D500-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20D550-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20D600-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20L50-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20L100-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20L150-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20L200-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20L250-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20L300-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20L350-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20L400-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20L450-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20L500-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20L550-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20L600-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20R50-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20R100-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20R150-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20R200-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20R250-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20R300-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20R350-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20R400-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20R450-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20R500-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20R550-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20R600-N3-10-VP Model: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY8-5S50-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5S100-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5S150-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5S200-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5S250-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5S300-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5S350-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5S400-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5S450-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5S500-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5S550-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5S600-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5S650-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5S700-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5S750-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5S800-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-5D50-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5D100-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5D150-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5D200-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5D250-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5D300-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5D350-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5D400-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5D450-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5D500-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5D550-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5D600-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5D650-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5D700-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5D750-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5D800-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-5L50-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5L100-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5L150-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5L200-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5L250-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5L300-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5L350-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5L400-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5L450-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5L500-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5L550-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5L600-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5L650-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5L700-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5L750-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5L800-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-5R50-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5R100-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5R150-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5R200-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5R250-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5R300-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5R350-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5R400-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5R450-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5R500-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5R550-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5R600-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5R650-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5R700-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5R750-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5R800-N3-40-VP Model: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10S50-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10S100-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10S150-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10S200-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10S250-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10S300-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10S350-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10S400-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10S450-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10S500-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10S550-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10S600-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10S650-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10S700-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10S750-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10S800-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10D50-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10D100-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10D150-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10D200-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10D250-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10D300-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10D350-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10D400-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10D450-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10D500-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10D550-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10D600-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10D650-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10D700-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10D750-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10D800-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10L50-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10L100-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10L150-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10L200-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10L250-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10L300-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10L350-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10L400-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10L450-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10L500-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10L550-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10L600-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10L650-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10L700-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10L750-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10L800-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10R50-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10R100-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10R150-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10R200-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10R250-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10R300-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10R350-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10R400-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10R450-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10R500-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10R550-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10R600-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10R650-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10R700-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10R750-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10R800-N3-40-VP Model: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20S50-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20S100-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20S150-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20S200-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20S250-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20S300-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20S350-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20S400-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20S450-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20S500-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20S550-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20S600-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20S650-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20S700-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20S750-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20S800-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20D50-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20D100-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20D150-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20D200-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20D250-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20D300-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20D350-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20D400-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20D450-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20D500-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20D550-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20D600-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20D650-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20D700-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20D750-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20D800-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20L50-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20L100-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20L150-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20L200-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20L250-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20L300-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20L350-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20L400-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20L450-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20L500-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20L550-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20L600-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20L650-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20L700-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20L750-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20L800-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20R50-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20R100-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20R150-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20R200-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20R250-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20R300-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20R350-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20R400-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20R450-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20R500-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20R550-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20R600-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20R650-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20R700-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20R750-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20R800-N3-40-VP Model: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 800 mm | Motor power code: 40 (400 W)
GY5 Legacy code (base size designation, not a full order code) | Model: GY5
GY8 Legacy code (base size designation, not a full order code) | Model: GY8
Electric CylindersInovance
386 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance GY Series Track-Embedded Rod-Type Ball Screw Cylinder

Brand Inovance·Electric Cylinders

Available part numbers (386)

GY5-2S50-N3-10-VP, GY5-2S100-N3-10-VP, GY5-2S150-N3-10-VP, GY5-2S200-N3-10-VP, GY5-2S250-N3-10-VP, GY5-2S300-N3-10-VP, GY5-2S350-N3-10-VP, GY5-2S400-N3-10-VP, GY5-2S450-N3-10-VP, GY5-2S500-N3-10-VP + 376 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GY5-2S50-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2S100-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2S150-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2S200-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2S250-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2S300-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2S350-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2S400-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2S450-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2S500-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2S550-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2S600-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-2D50-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2D100-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2D150-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2D200-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2D250-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2D300-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2D350-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2D400-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2D450-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2D500-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2D550-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2D600-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-2L50-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2L100-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2L150-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2L200-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2L250-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2L300-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2L350-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2L400-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2L450-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2L500-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2L550-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2L600-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-2R50-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-2R100-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-2R150-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-2R200-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-2R250-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-2R300-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-2R350-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-2R400-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-2R450-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-2R500-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-2R550-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-2R600-N3-10-VPModel: GY5 | Lead: 2 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5S50-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5S100-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5S150-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5S200-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5S250-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5S300-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5S350-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5S400-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5S450-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5S500-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5S550-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5S600-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5D50-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5D100-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5D150-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5D200-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5D250-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5D300-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5D350-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5D400-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5D450-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5D500-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5D550-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5D600-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5L50-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5L100-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5L150-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5L200-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5L250-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5L300-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5L350-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5L400-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5L450-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5L500-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5L550-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5L600-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-5R50-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-5R100-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-5R150-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-5R200-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-5R250-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-5R300-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-5R350-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-5R400-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-5R450-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-5R500-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-5R550-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-5R600-N3-10-VPModel: GY5 | Lead: 5 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10S50-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10S100-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10S150-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10S200-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10S250-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10S300-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10S350-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10S400-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10S450-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10S500-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10S550-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10S600-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10D50-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10D100-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10D150-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10D200-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10D250-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10D300-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10D350-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10D400-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10D450-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10D500-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10D550-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10D600-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10L50-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10L100-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10L150-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10L200-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10L250-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10L300-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10L350-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10L400-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10L450-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10L500-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10L550-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10L600-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-10R50-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-10R100-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-10R150-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-10R200-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-10R250-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-10R300-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-10R350-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-10R400-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-10R450-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-10R500-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-10R550-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-10R600-N3-10-VPModel: GY5 | Lead: 10 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20S50-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20S100-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20S150-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20S200-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20S250-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20S300-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20S350-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20S400-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20S450-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20S500-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20S550-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20S600-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20D50-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20D100-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20D150-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20D200-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20D250-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20D300-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20D350-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20D400-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20D450-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20D500-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20D550-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20D600-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20L50-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20L100-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20L150-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20L200-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20L250-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20L300-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20L350-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20L400-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20L450-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20L500-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20L550-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20L600-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 10 (100 W)
GY5-20R50-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 10 (100 W)
GY5-20R100-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 10 (100 W)
GY5-20R150-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 10 (100 W)
GY5-20R200-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 10 (100 W)
GY5-20R250-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 10 (100 W)
GY5-20R300-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 10 (100 W)
GY5-20R350-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 10 (100 W)
GY5-20R400-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 10 (100 W)
GY5-20R450-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 10 (100 W)
GY5-20R500-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 10 (100 W)
GY5-20R550-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 10 (100 W)
GY5-20R600-N3-10-VPModel: GY5 | Lead: 20 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 10 (100 W)
GY8-5S50-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5S100-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5S150-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5S200-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5S250-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5S300-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5S350-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5S400-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5S450-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5S500-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5S550-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5S600-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5S650-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5S700-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5S750-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5S800-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Direct (S) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-5D50-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5D100-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5D150-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5D200-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5D250-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5D300-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5D350-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5D400-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5D450-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5D500-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5D550-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5D600-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5D650-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5D700-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5D750-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5D800-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Down (D) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-5L50-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5L100-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5L150-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5L200-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5L250-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5L300-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5L350-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5L400-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5L450-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5L500-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5L550-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5L600-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5L650-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5L700-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5L750-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5L800-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Left (L) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-5R50-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-5R100-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-5R150-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-5R200-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-5R250-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-5R300-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-5R350-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-5R400-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-5R450-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-5R500-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-5R550-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-5R600-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-5R650-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-5R700-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-5R750-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-5R800-N3-40-VPModel: GY8 | Lead: 5 mm | Motor position: Right (R) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10S50-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10S100-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10S150-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10S200-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10S250-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10S300-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10S350-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10S400-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10S450-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10S500-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10S550-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10S600-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10S650-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10S700-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10S750-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10S800-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Direct (S) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10D50-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10D100-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10D150-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10D200-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10D250-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10D300-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10D350-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10D400-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10D450-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10D500-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10D550-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10D600-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10D650-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10D700-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10D750-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10D800-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Down (D) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10L50-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10L100-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10L150-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10L200-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10L250-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10L300-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10L350-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10L400-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10L450-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10L500-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10L550-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10L600-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10L650-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10L700-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10L750-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10L800-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Left (L) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-10R50-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-10R100-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-10R150-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-10R200-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-10R250-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-10R300-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-10R350-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-10R400-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-10R450-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-10R500-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-10R550-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-10R600-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-10R650-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-10R700-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-10R750-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-10R800-N3-40-VPModel: GY8 | Lead: 10 mm | Motor position: Right (R) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20S50-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20S100-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20S150-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20S200-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20S250-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20S300-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20S350-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20S400-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20S450-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20S500-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20S550-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20S600-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20S650-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20S700-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20S750-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20S800-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Direct (S) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20D50-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20D100-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20D150-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20D200-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20D250-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20D300-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20D350-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20D400-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20D450-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20D500-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20D550-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20D600-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20D650-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20D700-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20D750-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20D800-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Down (D) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20L50-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20L100-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20L150-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20L200-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20L250-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20L300-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20L350-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20L400-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20L450-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20L500-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20L550-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20L600-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20L650-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20L700-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20L750-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20L800-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Left (L) | Travel: 800 mm | Motor power code: 40 (400 W)
GY8-20R50-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 50 mm | Motor power code: 40 (400 W)
GY8-20R100-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 100 mm | Motor power code: 40 (400 W)
GY8-20R150-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 150 mm | Motor power code: 40 (400 W)
GY8-20R200-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 200 mm | Motor power code: 40 (400 W)
GY8-20R250-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 250 mm | Motor power code: 40 (400 W)
GY8-20R300-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 300 mm | Motor power code: 40 (400 W)
GY8-20R350-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 350 mm | Motor power code: 40 (400 W)
GY8-20R400-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 400 mm | Motor power code: 40 (400 W)
GY8-20R450-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 450 mm | Motor power code: 40 (400 W)
GY8-20R500-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 500 mm | Motor power code: 40 (400 W)
GY8-20R550-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 550 mm | Motor power code: 40 (400 W)
GY8-20R600-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 600 mm | Motor power code: 40 (400 W)
GY8-20R650-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 650 mm | Motor power code: 40 (400 W)
GY8-20R700-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 700 mm | Motor power code: 40 (400 W)
GY8-20R750-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 750 mm | Motor power code: 40 (400 W)
GY8-20R800-N3-40-VPModel: GY8 | Lead: 20 mm | Motor position: Right (R) | Travel: 800 mm | Motor power code: 40 (400 W)
GY5Legacy code (base size designation, not a full order code) | Model: GY5
GY8Legacy code (base size designation, not a full order code) | Model: GY8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
