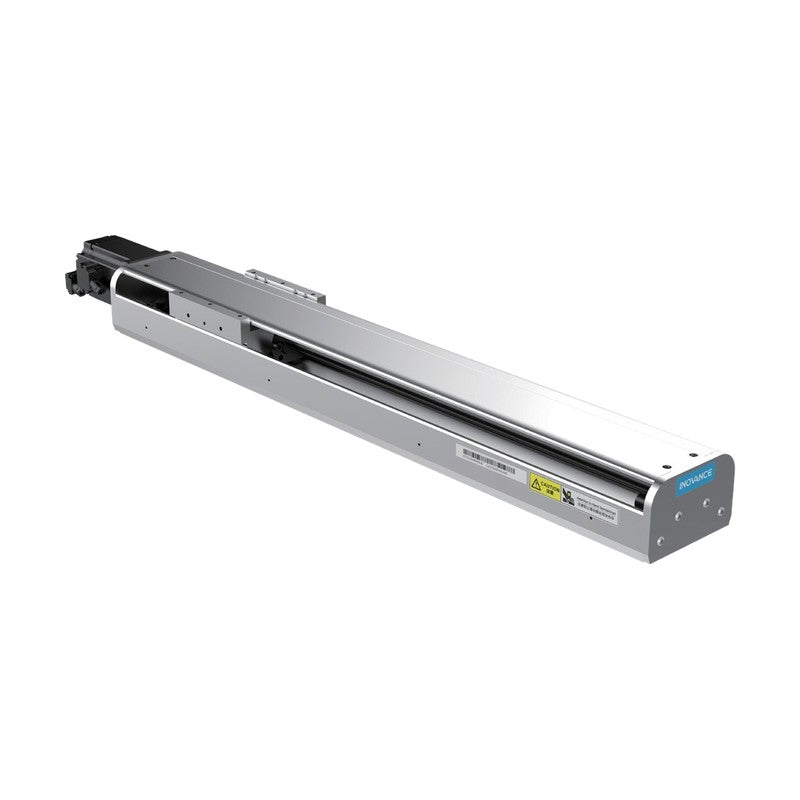

Inovance LS Series Ball Screw Electric Cylinder (LS12, LS13, LS14)

Inovance LS Series Ball Screw Electric Cylinder (LS12, LS13, LS14)

Inovance LS standard ball screw sliding table electric cylinders, medium sizes LS12/LS13/LS14 (102-135 mm body, 100-400 W, travel to 1,050 mm), supplied as complete linear drive units with Inovance servo motor and SV660 drive matching.

Key features

  • C7 ground ball screw with high-stiffness linear slide rail
  • Repeatability ±0.01 mm, semi-closed lead screw design
  • Motor mounting direct, folded down, left or right
  • Standard absolute encoder motors, mechanical homing without external sensors
  • Designed with SV660P (pulse) or SV660N (EtherCAT) servo drives

Specifications

Series LS (lead screw semi-closed)
Transmission Ball screw
Repeatability ±0.01 mm
Code example field values N3 = NPN sensor x 3, B = brake
Drive type in code VP = standard SV660P drive (VN = SV660N)
Travel interval 50 mm
Origin sensor External SGT-NH (NPN) / SGT-PH (PNP)
Motor positions S direct, D down, L left, R right
Servo motor Inovance MS1 series, 3,000 rpm rated
Source Inovance Electric Cylinder Product Catalog 19120535A00, p. 19-34
LS12-5S50-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D50-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L50-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R50-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S100-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D100-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L100-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R100-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S150-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D150-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L150-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R150-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S200-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D200-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L200-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R200-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S250-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D250-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L250-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R250-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S300-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D300-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L300-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R300-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S350-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D350-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L350-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R350-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S400-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D400-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L400-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R400-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S450-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D450-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L450-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R450-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S500-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D500-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L500-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R500-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S550-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D550-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L550-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R550-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S600-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D600-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L600-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R600-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S650-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D650-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L650-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R650-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S700-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D700-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L700-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R700-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S750-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D750-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L750-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R750-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S800-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D800-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L800-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R800-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S850-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D850-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L850-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R850-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S900-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D900-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L900-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R900-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S950-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D950-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L950-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R950-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-10S50-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D50-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L50-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R50-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S100-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D100-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L100-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R100-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S150-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D150-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L150-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R150-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S200-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D200-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L200-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R200-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S250-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D250-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L250-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R250-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S300-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D300-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L300-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R300-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S350-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D350-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L350-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R350-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S400-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D400-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L400-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R400-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S450-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D450-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L450-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R450-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S500-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D500-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L500-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R500-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S550-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D550-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L550-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R550-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S600-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D600-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L600-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R600-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S650-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D650-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L650-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R650-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S700-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D700-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L700-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R700-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S750-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D750-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L750-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R750-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S800-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D800-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L800-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R800-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S850-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D850-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L850-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R850-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S900-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D900-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L900-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R900-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S950-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D950-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L950-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R950-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-20S50-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D50-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L50-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R50-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S100-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D100-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L100-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R100-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S150-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D150-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L150-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R150-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S200-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D200-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L200-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R200-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S250-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D250-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L250-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R250-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S300-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D300-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L300-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R300-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S350-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D350-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L350-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R350-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S400-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D400-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L400-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R400-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S450-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D450-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L450-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R450-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S500-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D500-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L500-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R500-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S550-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D550-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L550-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R550-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S600-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D600-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L600-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R600-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S650-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D650-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L650-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R650-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S700-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D700-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L700-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R700-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S750-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D750-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L750-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R750-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S800-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D800-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L800-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R800-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S850-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D850-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L850-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R850-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S900-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D900-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L900-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R900-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S950-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D950-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L950-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R950-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-32S50-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D50-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L50-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R50-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S100-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D100-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L100-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R100-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S150-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D150-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L150-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R150-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S200-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D200-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L200-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R200-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S250-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D250-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L250-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R250-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S300-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D300-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L300-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R300-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S350-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D350-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L350-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R350-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S400-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D400-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L400-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R400-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S450-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D450-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L450-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R450-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S500-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D500-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L500-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R500-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S550-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D550-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L550-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R550-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S600-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D600-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L600-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R600-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S650-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D650-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L650-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R650-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S700-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D700-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L700-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R700-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S750-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D750-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L750-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R750-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S800-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D800-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L800-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R800-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S850-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D850-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L850-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R850-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S900-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D900-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L900-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R900-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S950-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D950-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L950-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R950-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R1000-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R1050-N3-10B-VP Size: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS13-5S50-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D50-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L50-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R50-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S100-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D100-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L100-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R100-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S150-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D150-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L150-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R150-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S200-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D200-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L200-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R200-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S250-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D250-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L250-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R250-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S300-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D300-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L300-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R300-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S350-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D350-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L350-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R350-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S400-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D400-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L400-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R400-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S450-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D450-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L450-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R450-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S500-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D500-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L500-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R500-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S550-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D550-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L550-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R550-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S600-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D600-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L600-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R600-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S650-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D650-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L650-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R650-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S700-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D700-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L700-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R700-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S750-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D750-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L750-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R750-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S800-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D800-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L800-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R800-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S850-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D850-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L850-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R850-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S900-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D900-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L900-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R900-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S950-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D950-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L950-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R950-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-10S50-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D50-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L50-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R50-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S100-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D100-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L100-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R100-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S150-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D150-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L150-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R150-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S200-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D200-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L200-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R200-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S250-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D250-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L250-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R250-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S300-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D300-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L300-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R300-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S350-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D350-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L350-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R350-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S400-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D400-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L400-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R400-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S450-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D450-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L450-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R450-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S500-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D500-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L500-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R500-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S550-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D550-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L550-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R550-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S600-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D600-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L600-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R600-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S650-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D650-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L650-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R650-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S700-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D700-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L700-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R700-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S750-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D750-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L750-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R750-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S800-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D800-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L800-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R800-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S850-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D850-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L850-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R850-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S900-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D900-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L900-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R900-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S950-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D950-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L950-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R950-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-20S50-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D50-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L50-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R50-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S100-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D100-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L100-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R100-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S150-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D150-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L150-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R150-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S200-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D200-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L200-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R200-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S250-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D250-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L250-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R250-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S300-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D300-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L300-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R300-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S350-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D350-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L350-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R350-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S400-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D400-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L400-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R400-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S450-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D450-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L450-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R450-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S500-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D500-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L500-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R500-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S550-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D550-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L550-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R550-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S600-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D600-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L600-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R600-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S650-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D650-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L650-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R650-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S700-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D700-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L700-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R700-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S750-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D750-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L750-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R750-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S800-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D800-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L800-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R800-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S850-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D850-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L850-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R850-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S900-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D900-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L900-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R900-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S950-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D950-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L950-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R950-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-32S50-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D50-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L50-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R50-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S100-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D100-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L100-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R100-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S150-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D150-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L150-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R150-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S200-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D200-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L200-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R200-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S250-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D250-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L250-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R250-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S300-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D300-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L300-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R300-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S350-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D350-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L350-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R350-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S400-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D400-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L400-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R400-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S450-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D450-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L450-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R450-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S500-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D500-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L500-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R500-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S550-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D550-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L550-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R550-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S600-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D600-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L600-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R600-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S650-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D650-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L650-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R650-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S700-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D700-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L700-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R700-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S750-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D750-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L750-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R750-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S800-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D800-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L800-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R800-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S850-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D850-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L850-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R850-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S900-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D900-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L900-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R900-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S950-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D950-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L950-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R950-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R1000-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R1050-N3-40B-VP Size: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS14-5S50-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D50-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L50-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R50-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S100-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D100-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L100-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R100-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S150-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D150-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L150-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R150-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S200-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D200-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L200-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R200-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S250-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D250-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L250-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R250-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S300-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D300-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L300-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R300-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S350-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D350-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L350-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R350-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S400-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D400-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L400-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R400-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S450-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D450-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L450-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R450-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S500-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D500-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L500-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R500-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S550-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D550-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L550-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R550-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S600-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D600-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L600-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R600-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S650-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D650-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L650-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R650-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S700-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D700-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L700-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R700-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S750-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D750-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L750-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R750-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S800-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D800-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L800-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R800-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S850-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D850-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L850-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R850-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S900-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D900-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L900-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R900-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S950-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D950-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L950-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R950-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-10S50-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D50-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L50-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R50-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S100-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D100-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L100-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R100-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S150-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D150-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L150-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R150-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S200-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D200-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L200-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R200-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S250-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D250-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L250-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R250-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S300-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D300-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L300-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R300-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S350-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D350-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L350-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R350-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S400-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D400-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L400-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R400-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S450-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D450-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L450-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R450-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S500-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D500-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L500-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R500-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S550-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D550-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L550-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R550-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S600-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D600-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L600-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R600-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S650-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D650-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L650-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R650-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S700-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D700-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L700-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R700-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S750-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D750-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L750-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R750-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S800-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D800-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L800-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R800-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S850-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D850-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L850-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R850-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S900-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D900-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L900-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R900-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S950-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D950-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L950-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R950-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-20S50-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D50-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L50-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R50-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S100-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D100-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L100-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R100-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S150-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D150-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L150-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R150-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S200-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D200-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L200-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R200-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S250-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D250-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L250-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R250-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S300-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D300-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L300-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R300-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S350-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D350-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L350-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R350-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S400-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D400-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L400-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R400-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S450-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D450-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L450-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R450-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S500-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D500-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L500-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R500-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S550-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D550-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L550-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R550-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S600-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D600-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L600-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R600-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S650-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D650-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L650-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R650-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S700-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D700-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L700-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R700-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S750-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D750-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L750-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R750-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S800-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D800-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L800-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R800-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S850-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D850-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L850-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R850-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S900-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D900-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L900-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R900-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S950-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D950-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L950-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R950-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-32S50-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D50-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L50-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R50-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S100-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D100-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L100-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R100-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S150-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D150-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L150-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R150-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S200-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D200-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L200-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R200-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S250-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D250-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L250-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R250-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S300-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D300-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L300-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R300-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S350-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D350-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L350-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R350-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S400-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D400-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L400-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R400-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S450-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D450-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L450-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R450-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S500-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D500-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L500-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R500-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S550-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D550-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L550-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R550-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S600-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D600-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L600-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R600-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S650-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D650-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L650-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R650-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S700-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D700-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L700-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R700-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S750-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D750-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L750-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R750-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S800-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D800-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L800-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R800-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S850-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D850-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L850-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R850-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S900-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D900-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L900-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R900-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S950-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D950-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L950-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R950-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R1000-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R1050-N3-40B-VP Size: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS12 Legacy code (base size, order by full code) | Model: LS12 | Type: LS standard ball screw sliding table
LS13 Legacy code (base size, order by full code) | Model: LS13 | Type: LS standard ball screw sliding table
LS14 Legacy code (base size, order by full code) | Model: LS14 | Type: LS standard ball screw sliding table
Linear ModulesInovance
1011 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance LS Series Ball Screw Electric Cylinder (LS12, LS13, LS14)

Brand Inovance·Linear Modules

Available part numbers (1011)

LS12-5S50-N3-10B-VP, LS12-5D50-N3-10B-VP, LS12-5L50-N3-10B-VP, LS12-5R50-N3-10B-VP, LS12-5S100-N3-10B-VP, LS12-5D100-N3-10B-VP, LS12-5L100-N3-10B-VP, LS12-5R100-N3-10B-VP, LS12-5S150-N3-10B-VP, LS12-5D150-N3-10B-VP + 1001 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LS12-5S50-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D50-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L50-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R50-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S100-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D100-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L100-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R100-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S150-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D150-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L150-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R150-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S200-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D200-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L200-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R200-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S250-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D250-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L250-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R250-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S300-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D300-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L300-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R300-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S350-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D350-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L350-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R350-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S400-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D400-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L400-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R400-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S450-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D450-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L450-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R450-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S500-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D500-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L500-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R500-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S550-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D550-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L550-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R550-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S600-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D600-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L600-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R600-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S650-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D650-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L650-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R650-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S700-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D700-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L700-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R700-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S750-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D750-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L750-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R750-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S800-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D800-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L800-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R800-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S850-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D850-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L850-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R850-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S900-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D900-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L900-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R900-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S950-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D950-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L950-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R950-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5S1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5D1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5L1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-5R1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 50/12 kg
LS12-10S50-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D50-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L50-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R50-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S100-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D100-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L100-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R100-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S150-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D150-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L150-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R150-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S200-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D200-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L200-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R200-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S250-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D250-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L250-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R250-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S300-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D300-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L300-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R300-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S350-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D350-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L350-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R350-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S400-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D400-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L400-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R400-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S450-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D450-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L450-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R450-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S500-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D500-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L500-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R500-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S550-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D550-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L550-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R550-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S600-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D600-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L600-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R600-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S650-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D650-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L650-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R650-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S700-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D700-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L700-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R700-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S750-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D750-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L750-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R750-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S800-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D800-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L800-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R800-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S850-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D850-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L850-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R850-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S900-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D900-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L900-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R900-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S950-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D950-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L950-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R950-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10S1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10D1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10L1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-10R1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 30/8 kg
LS12-20S50-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D50-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L50-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R50-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S100-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D100-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L100-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R100-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S150-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D150-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L150-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R150-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S200-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D200-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L200-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R200-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S250-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D250-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L250-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R250-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S300-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D300-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L300-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R300-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S350-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D350-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L350-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R350-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S400-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D400-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L400-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R400-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S450-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D450-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L450-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R450-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S500-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D500-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L500-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R500-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S550-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D550-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L550-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R550-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S600-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D600-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L600-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R600-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S650-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D650-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L650-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R650-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S700-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D700-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L700-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R700-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S750-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D750-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L750-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R750-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S800-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D800-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L800-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R800-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S850-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D850-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L850-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R850-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S900-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D900-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L900-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R900-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S950-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D950-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L950-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R950-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20S1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20D1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20L1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-20R1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 18/3 kg
LS12-32S50-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D50-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L50-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R50-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S100-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D100-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L100-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R100-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S150-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D150-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L150-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R150-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S200-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D200-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L200-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R200-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S250-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D250-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L250-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R250-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S300-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D300-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L300-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R300-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S350-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D350-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L350-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R350-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S400-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D400-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L400-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R400-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S450-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D450-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L450-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R450-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S500-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D500-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L500-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R500-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S550-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D550-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L550-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R550-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S600-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D600-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L600-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R600-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S650-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D650-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L650-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R650-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S700-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D700-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L700-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R700-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S750-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D750-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L750-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R750-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S800-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D800-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L800-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R800-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S850-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D850-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L850-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R850-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S900-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D900-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L900-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R900-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S950-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D950-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L950-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R950-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R1000-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32S1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32D1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32L1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 100 W | Max. load H/V: 5/- kg
LS12-32R1050-N3-10B-VPSize: LS12 (102 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 100 W | Max. load H/V: 5/- kg
LS13-5S50-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D50-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L50-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R50-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S100-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D100-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L100-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R100-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S150-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D150-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L150-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R150-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S200-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D200-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L200-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R200-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S250-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D250-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L250-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R250-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S300-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D300-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L300-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R300-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S350-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D350-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L350-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R350-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S400-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D400-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L400-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R400-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S450-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D450-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L450-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R450-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S500-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D500-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L500-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R500-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S550-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D550-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L550-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R550-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S600-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D600-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L600-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R600-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S650-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D650-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L650-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R650-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S700-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D700-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L700-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R700-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S750-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D750-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L750-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R750-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S800-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D800-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L800-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R800-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S850-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D850-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L850-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R850-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S900-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D900-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L900-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R900-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S950-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D950-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L950-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R950-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5S1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5D1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5L1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-5R1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 70/17 kg
LS13-10S50-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D50-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L50-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R50-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S100-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D100-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L100-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R100-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S150-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D150-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L150-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R150-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S200-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D200-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L200-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R200-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S250-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D250-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L250-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R250-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S300-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D300-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L300-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R300-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S350-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D350-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L350-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R350-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S400-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D400-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L400-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R400-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S450-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D450-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L450-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R450-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S500-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D500-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L500-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R500-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S550-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D550-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L550-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R550-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S600-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D600-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L600-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R600-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S650-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D650-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L650-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R650-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S700-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D700-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L700-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R700-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S750-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D750-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L750-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R750-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S800-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D800-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L800-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R800-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S850-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D850-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L850-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R850-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S900-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D900-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L900-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R900-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S950-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D950-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L950-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R950-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10S1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10D1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10L1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-10R1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 47/12 kg
LS13-20S50-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D50-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L50-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R50-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S100-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D100-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L100-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R100-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S150-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D150-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L150-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R150-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S200-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D200-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L200-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R200-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S250-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D250-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L250-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R250-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S300-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D300-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L300-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R300-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S350-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D350-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L350-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R350-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S400-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D400-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L400-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R400-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S450-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D450-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L450-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R450-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S500-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D500-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L500-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R500-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S550-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D550-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L550-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R550-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S600-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D600-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L600-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R600-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S650-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D650-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L650-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R650-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S700-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D700-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L700-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R700-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S750-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D750-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L750-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R750-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S800-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D800-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L800-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R800-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S850-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D850-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L850-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R850-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S900-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D900-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L900-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R900-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S950-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D950-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L950-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R950-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20S1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20D1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20L1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-20R1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 24/6 kg
LS13-32S50-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D50-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L50-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R50-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S100-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D100-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L100-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R100-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S150-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D150-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L150-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R150-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S200-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D200-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L200-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R200-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S250-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D250-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L250-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R250-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S300-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D300-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L300-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R300-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S350-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D350-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L350-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R350-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S400-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D400-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L400-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R400-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S450-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D450-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L450-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R450-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S500-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D500-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L500-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R500-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S550-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D550-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L550-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R550-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S600-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D600-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L600-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R600-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S650-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D650-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L650-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R650-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S700-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D700-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L700-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R700-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S750-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D750-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L750-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R750-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S800-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D800-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L800-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R800-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S850-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D850-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L850-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R850-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S900-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D900-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L900-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R900-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S950-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D950-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L950-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R950-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R1000-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32S1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32D1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32L1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 13/- kg
LS13-32R1050-N3-40B-VPSize: LS13 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 13/- kg
LS14-5S50-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D50-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L50-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R50-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S100-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D100-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L100-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R100-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S150-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D150-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L150-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R150-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S200-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D200-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L200-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R200-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S250-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D250-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L250-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R250-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S300-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D300-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L300-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R300-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S350-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D350-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L350-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R350-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S400-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D400-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L400-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R400-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S450-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D450-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L450-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R450-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S500-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D500-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L500-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R500-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S550-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D550-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L550-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R550-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S600-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D600-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L600-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R600-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S650-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D650-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L650-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R650-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S700-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D700-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L700-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R700-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S750-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D750-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L750-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R750-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S800-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D800-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L800-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R800-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S850-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D850-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L850-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R850-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S900-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D900-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L900-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R900-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S950-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D950-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L950-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R950-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5S1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5D1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5L1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-5R1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 5 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 110/33 kg
LS14-10S50-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D50-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L50-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R50-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S100-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D100-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L100-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R100-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S150-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D150-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L150-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R150-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S200-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D200-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L200-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R200-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S250-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D250-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L250-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R250-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S300-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D300-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L300-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R300-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S350-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D350-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L350-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R350-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S400-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D400-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L400-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R400-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S450-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D450-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L450-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R450-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S500-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D500-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L500-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R500-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S550-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D550-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L550-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R550-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S600-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D600-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L600-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R600-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S650-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D650-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L650-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R650-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S700-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D700-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L700-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R700-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S750-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D750-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L750-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R750-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S800-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D800-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L800-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R800-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S850-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D850-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L850-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R850-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S900-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D900-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L900-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R900-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S950-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D950-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L950-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R950-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10S1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10D1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10L1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-10R1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 10 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 88/22 kg
LS14-20S50-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D50-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L50-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R50-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S100-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D100-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L100-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R100-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S150-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D150-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L150-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R150-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S200-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D200-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L200-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R200-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S250-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D250-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L250-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R250-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S300-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D300-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L300-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R300-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S350-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D350-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L350-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R350-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S400-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D400-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L400-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R400-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S450-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D450-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L450-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R450-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S500-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D500-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L500-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R500-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S550-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D550-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L550-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R550-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S600-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D600-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L600-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R600-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S650-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D650-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L650-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R650-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S700-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D700-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L700-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R700-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S750-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D750-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L750-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R750-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S800-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D800-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L800-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R800-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S850-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D850-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L850-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R850-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S900-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D900-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L900-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R900-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S950-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D950-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L950-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R950-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20S1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20D1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20L1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-20R1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 20 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 40/10 kg
LS14-32S50-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D50-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L50-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R50-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 50 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S100-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D100-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L100-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R100-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 100 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S150-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D150-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L150-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R150-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 150 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S200-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D200-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L200-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R200-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 200 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S250-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D250-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L250-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R250-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 250 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S300-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D300-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L300-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R300-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 300 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S350-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D350-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L350-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R350-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 350 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S400-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D400-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L400-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R400-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 400 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S450-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D450-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L450-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R450-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 450 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S500-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D500-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L500-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R500-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 500 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S550-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D550-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L550-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R550-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 550 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S600-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D600-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L600-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R600-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 600 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S650-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D650-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L650-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R650-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 650 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S700-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D700-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L700-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R700-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 700 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S750-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D750-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L750-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R750-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 750 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S800-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D800-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L800-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R800-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 800 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S850-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D850-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L850-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R850-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 850 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S900-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D900-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L900-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R900-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 900 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S950-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D950-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L950-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R950-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 950 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R1000-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1000 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32S1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Direct | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32D1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Down | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32L1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Left | Motor power: 400 W | Max. load H/V: 30/8 kg
LS14-32R1050-N3-40B-VPSize: LS14 (135 mm) | Lead: 32 mm | Stroke: 1050 mm | Motor position: Right | Motor power: 400 W | Max. load H/V: 30/8 kg
LS12Legacy code (base size, order by full code) | Model: LS12 | Type: LS standard ball screw sliding table
LS13Legacy code (base size, order by full code) | Model: LS13 | Type: LS standard ball screw sliding table
LS14Legacy code (base size, order by full code) | Model: LS14 | Type: LS standard ball screw sliding table

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
