Inovance RBST Series Precision Ball Spline and Ball Screw

Inovance RBST Series Precision Ball Spline and Ball Screw

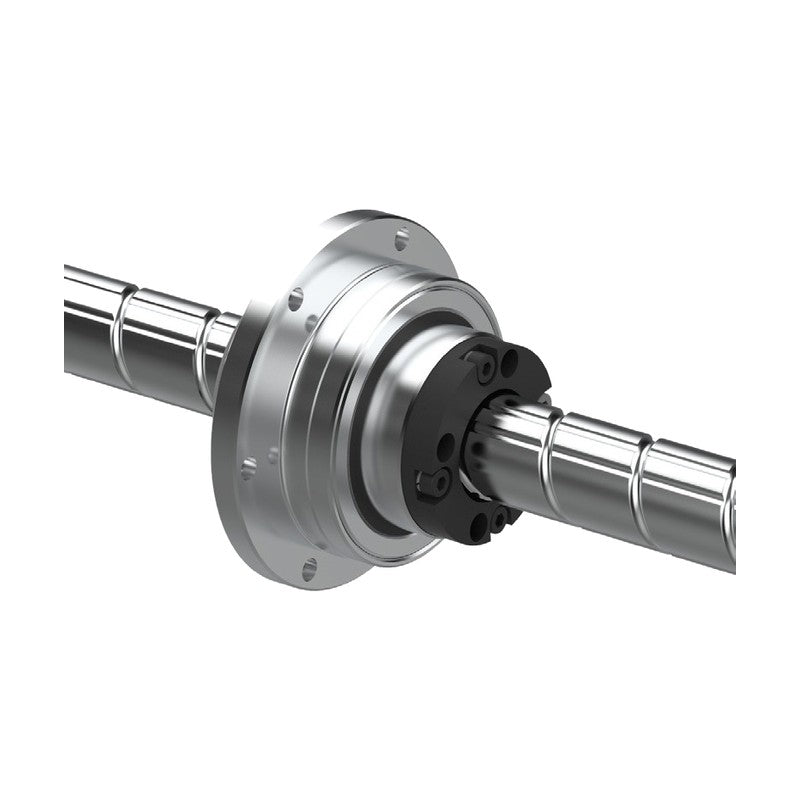

Inovance RBST precision ball spline and ball screw units combining a ball screw nut and spline nut on one shaft for SCARA robot Z/theta axes.

Key features

  • Ball screw and ball spline on one shaft: linear, rotary or helical motion
  • Gothic-arch threads with preload for zero axial clearance
  • Nut integrated with 45 deg contact angle support bearing
  • End-bracket ball return for low torque fluctuation and low noise
  • Shaft diameter 16 to 32 mm, leads 16 to 50 mm

Specifications

Brand Inovance (LAIEN)
Nut type Round nut (S)
Axial clearance 0
Applications SCARA, assembly robots, ATC
Source Inovance Precision Ball Screws catalogue 19120498A00, p. 19-20
RBST1616 Shaft dia: 16 mm | Lead: 16 mm | Screw Ca / C0a: 3.8 / 7.2 kN | Spline CT / COT: 31.4 / 34.3 N.m | Spline C / C0: 7.1 / 12.6 kN
RBST1632 Shaft dia: 16 mm | Lead: 32 mm | Screw Ca / C0a: 3.5 / 5.4 kN | Spline CT / COT: 31.4 / 34.3 N.m | Spline C / C0: 7.1 / 12.6 kN
RBST2020 Shaft dia: 20 mm | Lead: 20 mm | Screw Ca / C0a: 5.8 / 12.3 kN | Spline CT / COT: 56.9 / 55.9 N.m | Spline C / C0: 10.2 / 17.8 kN
RBST2040 Shaft dia: 20 mm | Lead: 40 mm | Screw Ca / C0a: 4.3 / 8.0 kN | Spline CT / COT: 56.9 / 55.9 N.m | Spline C / C0: 10.2 / 17.8 kN
RBST2525 Shaft dia: 25 mm | Lead: 25 mm | Screw Ca / C0a: 8.6 / 19.3 kN | Spline CT / COT: 105 / 103 N.m | Spline C / C0: 15.2 / 25.8 kN
RBST2550 Shaft dia: 25 mm | Lead: 50 mm | Screw Ca / C0a: 6.4 / 12.5 kN | Spline CT / COT: 105 / 103 N.m | Spline C / C0: 15.2 / 25.8 kN
RBST3232 Shaft dia: 32 mm | Lead: 32 mm | Screw Ca / C0a: 12.2 / 26.9 kN | Spline CT / COT: 180 / 157 N.m | Spline C / C0: 20.5 / 34 kN
