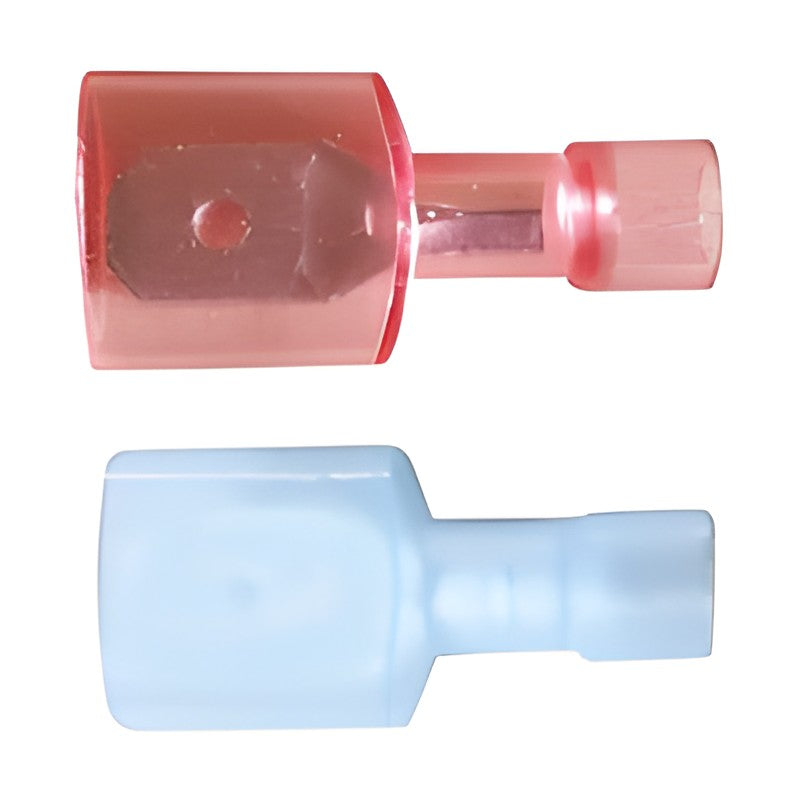

Jeoneo 28 Series Fully Insulated Male Disconnects

Jeoneo 28 Series Fully Insulated Male Disconnects

Fully insulated tin-plated brass male 6.3 mm quick-disconnect tabs for 0.5 to 6 mm² wire.

Key features

  • FEM polycarbonate or FNM nylon funnel-entry insulation

Specifications

Material Brass
Surface Tin plated
Jeoneo 28 Series Fully Insulated Male Disconnects
281638 Wire range: 22~16 AWG / 0.5~1.5 mm² | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 6.3, D4 4.3, L 22.5, L1 10.5, L2 7.7
285638 Wire range: 16~14 AWG / 1.5~2.5 mm² | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 6.3, D4 4.8, L 22.5, L1 11.0, L2 7.7
283638 Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D2 6.3, D4 6.5, L 25.0, L1 13.5, L2 7.7
Quick Disconnect TerminalsJeoneo
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo 28 Series Fully Insulated Male Disconnects

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (3)

281638, 285638, 283638

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo 28 Series Fully Insulated Male Disconnects
0 selected
RFQ List (0)
Product codeSpec
281638Wire range: 22~16 AWG / 0.5~1.5 mm² | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 6.3, D4 4.3, L 22.5, L1 10.5, L2 7.7
285638Wire range: 16~14 AWG / 1.5~2.5 mm² | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 6.3, D4 4.8, L 22.5, L1 11.0, L2 7.7
283638Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D2 6.3, D4 6.5, L 25.0, L1 13.5, L2 7.7
