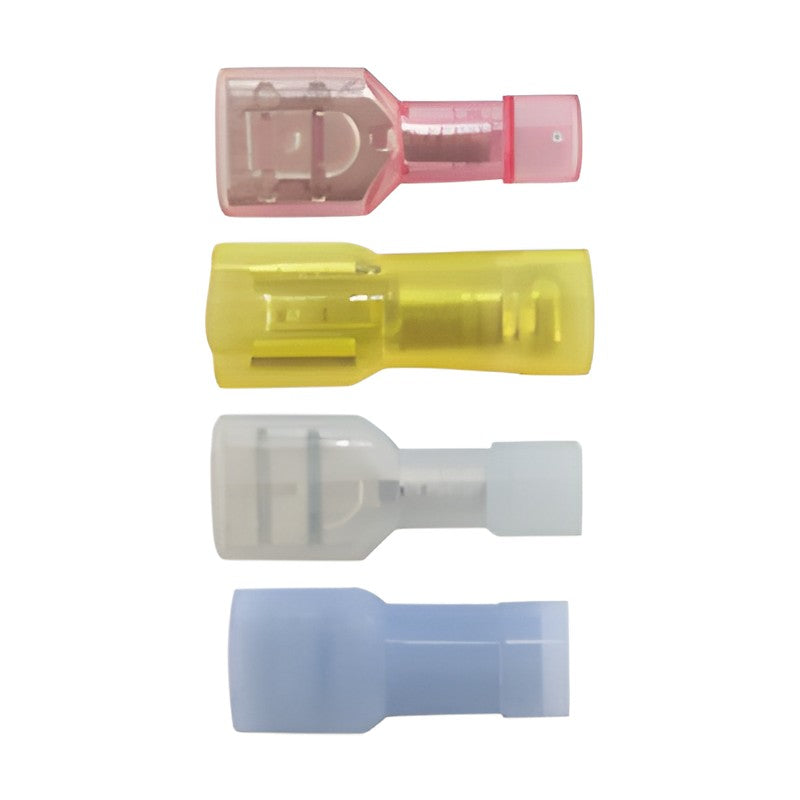

Jeoneo 38 Series Fully Insulated Female Disconnects

Jeoneo 38 Series Fully Insulated Female Disconnects

Fully insulated tin-plated brass female quick disconnects for 2.8, 4.8 and 6.3 mm tabs and 0.5 to 6 mm² wire.

Key features

  • Available with FEM/FEH polycarbonate or FNM/FNH nylon funnel-entry insulation (FEH/FNH with copper sleeve)

Specifications

Material Brass
Surface Tin plated
Jeoneo 38 Series Fully Insulated Female Disconnects
381285 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 3.2, D3 4.3, L 20.0, L1 10.0
381485 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 5.0, D3 4.3, L 20.0, L1 10.0
381638 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 6.6, D3 4.3, L 21.5, L1 10.5
385485 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 5.0, D3 4.8, L 20.0, L1 10.0
385638 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 6.6, D3 4.8, L 21.5, L1 10.5
383638 Wire range: 12~10 AWG / 2.5~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D2 6.6, D3 6.0, L 25.0, L1 13.7
Quick Disconnect TerminalsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo 38 Series Fully Insulated Female Disconnects

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (6)

381285, 381485, 381638, 385485, 385638, 383638

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo 38 Series Fully Insulated Female Disconnects
0 selected
RFQ List (0)
Product codeSpec
381285Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 3.2, D3 4.3, L 20.0, L1 10.0
381485Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 5.0, D3 4.3, L 20.0, L1 10.0
381638Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D2 6.6, D3 4.3, L 21.5, L1 10.5
385485Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 5.0, D3 4.8, L 20.0, L1 10.0
385638Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D2 6.6, D3 4.8, L 21.5, L1 10.5
383638Wire range: 12~10 AWG / 2.5~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D2 6.6, D3 6.0, L 25.0, L1 13.7
