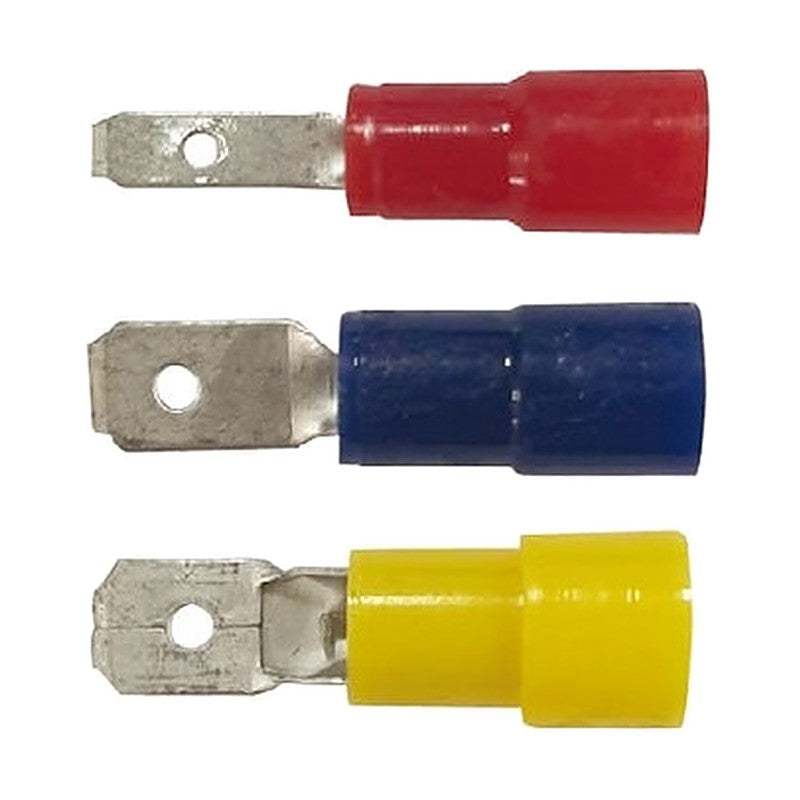

Jeoneo 63 Series Insulated Male Quick Disconnects, PVC (FEM)

Jeoneo 63 Series Insulated Male Quick Disconnects, PVC (FEM)

PVC-insulated tin-plated brass male quick-disconnect tabs (2.8, 4.8 and 6.3 mm) for 0.5 to 6 mm² wire.

Key features

  • FEM funnel-entry PVC insulation

Specifications

Material Brass
Surface Tin plated
Insulation PVC (FEM)
Pack qty 1,000
Jeoneo 63 Series Insulated Male Quick Disconnects, PVC (FEM)
631285 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 2.8, D3 4.3, L 19.6, L1 10.0
631485 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 4.8, D3 4.3, L 19.6, L1 10.0
631638 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Red | Dimensions (mm): D1 1.8, D2 6.3, D3 4.3, L 21.0, L1 10.0
635485 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Blue | Dimensions (mm): D1 2.3, D2 4.8, D3 4.8, L 19.6, L1 10.0
635638 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Blue | Dimensions (mm): D1 2.3, D2 6.3, D3 4.8, L 21.0, L1 10.0
633638 Wire range: 12~10 AWG / 2.5~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Dimensions (mm): D1 3.5, D2 6.3, D3 6.6, L 25.0, L1 14.0
Quick Disconnect TerminalsJeoneo
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo 63 Series Insulated Male Quick Disconnects, PVC (FEM)

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (6)

631285, 631485, 631638, 635485, 635638, 633638

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo 63 Series Insulated Male Quick Disconnects, PVC (FEM)
0 selected
RFQ List (0)
Product codeSpec
631285Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .110×.020 | Tab size (mm): 2.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 2.8, D3 4.3, L 19.6, L1 10.0
631485Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Red | Dimensions (mm): D1 1.8, D2 4.8, D3 4.3, L 19.6, L1 10.0
631638Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Red | Dimensions (mm): D1 1.8, D2 6.3, D3 4.3, L 21.0, L1 10.0
635485Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .187×.020 | Tab size (mm): 4.8×0.5 | Color: Blue | Dimensions (mm): D1 2.3, D2 4.8, D3 4.8, L 19.6, L1 10.0
635638Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Blue | Dimensions (mm): D1 2.3, D2 6.3, D3 4.8, L 21.0, L1 10.0
633638Wire range: 12~10 AWG / 2.5~6.0 mm² | Tab size (in): .250×.032 | Tab size (mm): 6.3×0.8 | Color: Yellow | Dimensions (mm): D1 3.5, D2 6.3, D3 6.6, L 25.0, L1 14.0
