• Jeoneo 73 Series Fully Insulated Bullet Receptacles (FNH/FEH)
1 1

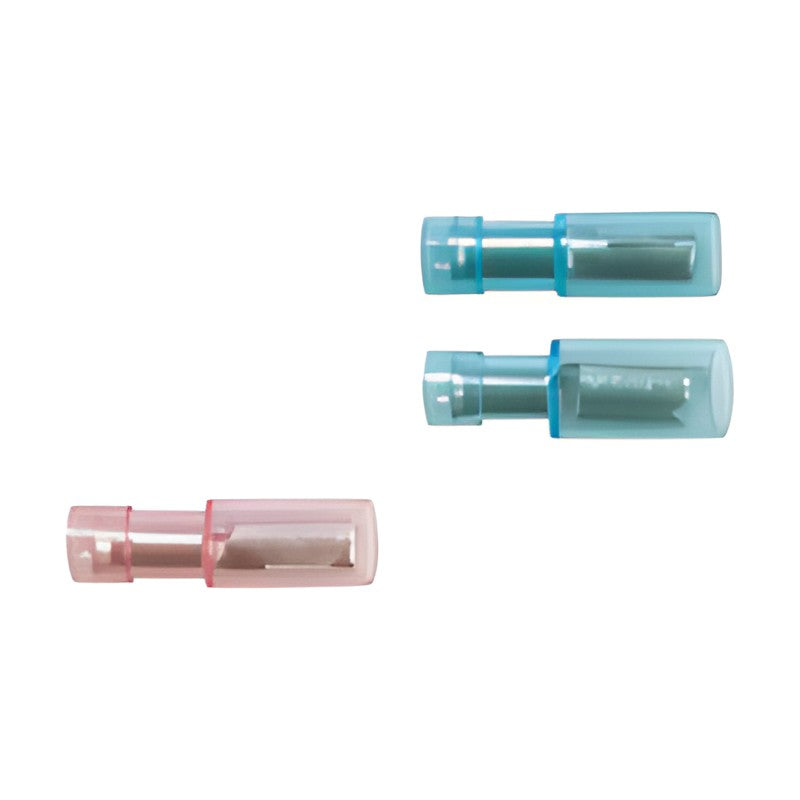

Jeoneo 73 Series Fully Insulated Bullet Receptacles (FNH/FEH)

Jeoneo 73 Series Fully Insulated Bullet Receptacles (FNH/FEH)

Fully insulated tin-plated brass female bullet receptacles (4.0 and 5.0 mm) for 0.5 to 6 mm² wire.

Key features

  • FNH easy-entry nylon or FEH easy-entry polycarbonate insulation with copper sleeve

Specifications

Material Brass
Surface Tin plated
Insulation Nylon (FNH) / polycarbonate with copper sleeve (FEH)
Jeoneo 73 Series Fully Insulated Bullet Receptacles (FNH/FEH)
731004 Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D3 4.3, L 23.6, L1 10.5
735004 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D3 4.3, L 23.6, L1 11.5
735005 Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D3 4.8, L 23.6, L1 11.5
733005 Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D3 6.5, L 26.7, L1 13.8
Quick Disconnect TerminalsJeoneo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo 73 Series Fully Insulated Bullet Receptacles (FNH/FEH)

Brand Jeoneo·Quick Disconnect Terminals

Available part numbers (4)

731004, 735004, 735005, 733005

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Jeoneo 73 Series Fully Insulated Bullet Receptacles (FNH/FEH)
0 selected
RFQ List (0)
Product codeSpec
731004Wire range: 22~16 AWG / 0.5~1.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Red | Pack qty: 1,000 | Dimensions (mm): D1 1.8, D3 4.3, L 23.6, L1 10.5
735004Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.157 | Tab size (mm): 4.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D3 4.3, L 23.6, L1 11.5
735005Wire range: 16~14 AWG / 1.5~2.5 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Blue | Pack qty: 1,000 | Dimensions (mm): D1 2.3, D3 4.8, L 23.6, L1 11.5
733005Wire range: 12~10 AWG / 4.0~6.0 mm² | Tab size (in): 0.196 | Tab size (mm): 5.0 | Color: Yellow | Pack qty: 500 | Dimensions (mm): D1 3.5, D3 6.5, L 26.7, L1 13.8
